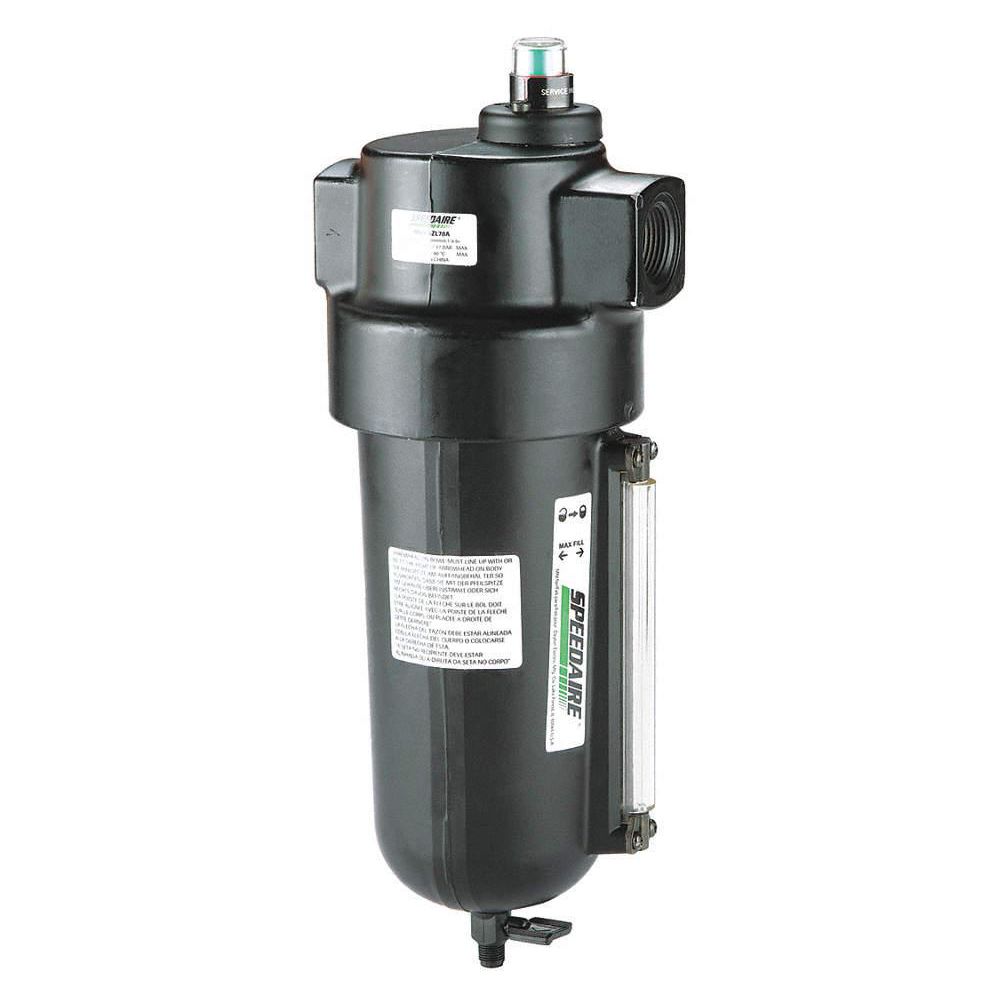

Pneumatic Oil Filter: Coalescing, 3/4 in NPT, 0.01 micron, 90 cfm, 250 psi Max Op Pressure

Name: Pneumatic Oil Filter: Coalescing, 3/4 in NPT, 0.01 micron, 90 cfm, 250 psi Max Op Pressure
Brand: SPEEDAIRE
SKU: 9197414
Price: 229.15 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#919741-4Pkg Qty: 1

$229.15 pkg | $229.15 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Mar 28.

Technical Specifications

Key Specifications

Air Consumption

scfm

Mfr. Part Number

4ZL18

Bowl Material

Metal with Sight Glass

Microns

0.01

Brand

SPEEDAIRE

NPT

3/4 in.

Drain Port Size

Will Fit 1/8-27 and 1/8-28 Male Pipe Thread

Overall Height

13.24 in.

Drain Type

1/4 in. Turn

Overall Width

4-3/4 in.

Filter Rating

0.01 micron

Package Quantity

Item

Pneumatic Oil Filter

Pipe Size

3/4 in. NPT

Maximum Flow

90 cfm

Port Size

3/4 NPT

Maximum Flow (CFM)

90 CFM

Product Size

Heavy-Duty

Maximum Pressure

250 psi

Shipping Weight

4.6 lb.

Maximum Temperature

150 deg. F

Type

Modular

Maximum Temperature (Deg. F)

150

Width

4-3/4 in.

General

Air Flow Direction

Left to Right

Filter Bowl Material

Metal

Air Inlet Gender

Female

For Fluid Type

Compressed Air

Air Inlet Type

NPT

For Removal Of

Oil, Oil Odor, Oil Vapor, Particles, Water

Air Outlet Gender

Female

For Substance Type

Air

Air Outlet Type

NPT

Includes

Bowl Guard

Bowl Size - Air Treatment

32.0 oz

Max. Flow Range - Air Treatment

71 to 100 cfm

Connection Size - Air Treatment

3/4 in NPT

Minimum Operating Pressure

1.7 MPa

Drain Part Compatibility

114X35

Modular Connection

No Modular Connection

Filter Bowl Capacity

32 oz

Sight Glass

Prismatic

Filter Bowl Guard Included

Yes

Size - Air Treatment

Standard

Filter Bowl Guard Material

Aluminum

System Location

Air Line

Product Description

Features a modular connector for easy removal and replacement. Includes a service life indicator. For maximum life, use in conjunction with a general purpose air line filter equipped with a 5-micron element. For Max. Flow, the CFM is measured at 100 psig with a saturated element (3 to 5 psig drop).
