WARN

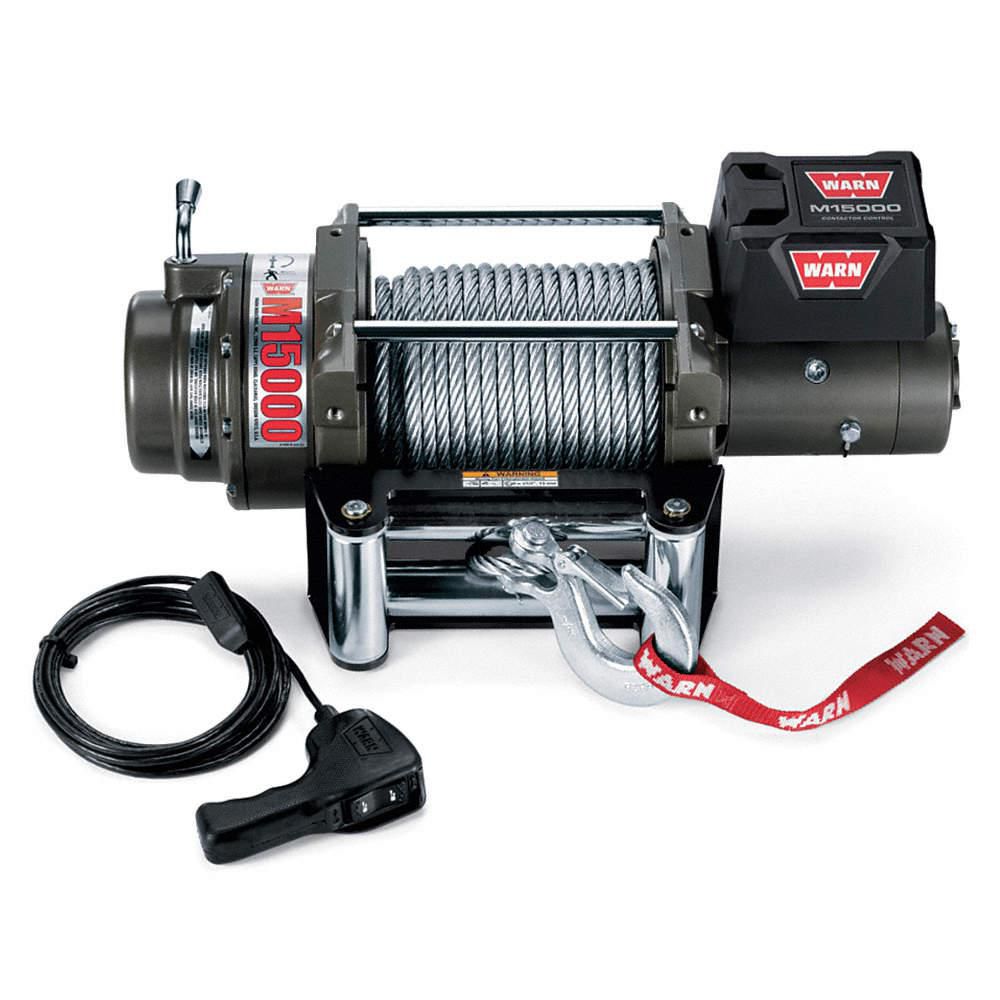

Warn 12VDC Pulling Electric Winch with 2.4 fpm and 15,000 lb. 1st Layer Load Capacity
Hover over image to magnify
#930043-5 | Pkg Qty: 1
$2,811.39 pkg | $2,811.39 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
1st Layer Line Speed
2.4 fpm
Overall Length
28-1/4 in.
1st Layer Load Capacity
15000 lb.
Overall Width
13 in.
Brand
WARN
Package Quantity
1
Full Load Amps
460 A
Rope Material
Wire
Item
Electric Winch
Series
M Series
Mfr. Part Number
47801
Shipping Weight
135 lb.
Mfr. Warranty Length
7 yr. Electric, Limited Lifetime Mechanical
Voltage Rating
12 VDC
Motor HP
4.6 HP
Winch Type
Pulling
Overall Height
10-1/4 in.
General
1st Layer Line Pull
15,000 lb
Included Rope Length
90 ft
1st Layer Line Speed (FPM)
22.2
Includes
12' Remote, Roller Fairlead, 90' Wire Rope
Clutch Release
Yes
Length (In.)
28-1/4
Control Pendant Cord Length
12 ft
Mechanical Brake
Yes
Drum Capacity for 7/16 In. Cable
90 ft
No Load Line Speed
22.2 fpm
First Layer Line Speed
2.48 fpm
Pulling Capacity Double Line (Lbs.)
30,000
Free Spooling Clutch Type
Lever
Pulling Capacity Single Line (Lbs.)
15,000
Free Wheel
Yes
Remote Control
12'
Full Load Empty Reel Line Speed
22.2 fpm
Type Gearing
315/1
Full Load Full Reel Line Speed
2.48 fpm
Width (In.)
13
Full Load Line Speed
2.4 fpm
Winch Gear Ratio
315:1
Height (In.)
10-1/4
Winch Gear Type
3-Stage Planetary
Included Rope Dia.
7/16 in
Product Description
12VDC Electric Winches Heavy-Duty Truck These winches are typically mounted on vehicles and used for intermediate-duty cycles. Higher-strength carrier plates are designed to handle heavy gear-train stress. Applications include off-road vehicle recovery, towing, construction, and agriculture.
Documents
Item Barcode
Electric Winch,4-3/5HP,12VDC
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 16Y217 | Electric Winch,4-3/ |
 | UNSPSC CODES | 24101608 | |
 | VMRS (ATA) CODES | 053-006-009 | Electric Winch,4-3/ |
