SOUTHWORTH

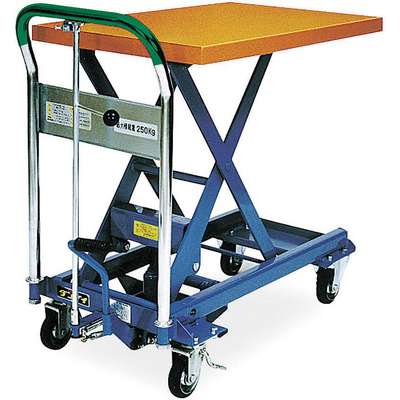

Mobile Manual Lift, Manual Push Scissor Lift Table, 330 lb. Load Capacity, Lifting Height Max. 29"

Hover over image to magnify
Scissor Lift Cart,330 Lb.,
Scissor Lift Cart,330 Lb.,

#917735-5 | Pkg Qty: 1

$1,141.24 pkg | $1,141.24 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SOUTHWORTH
Lifting Height Minimum
8-3/8 in.
Caster Diameter
4 in.
Load Capacity
330 lb.
Caster Material
Rubber
Lowered Height
8-3/10 in.
Caster Type
(2) Rigid, (2) Swivel with Lock
Maximum Lifting Height
29 in.
Caster Wheel Diameter
4 in.
Mfr. Part Number
L-150
Caster Wheel Type
(2) Rigid, (2) Swivel with Lock
Minimum Lifting Height
8-3/8 in.
Frame Material
Steel
Mobile/Stationary
Mobile
Item
Scissor Lift Table
Package Quantity
1
Lift Control
Foot Pump
Platform Length
28 in.
Lift Mechanism
Hydraulic
Platform Style
Fixed
Lift Mobility
Manual Lift, Manual Push
Platform Width
17-3/4 in.
Lift Table Item
Scissor Lift Table
Powered By
Manual
Lift Table Platform Style
Fixed
Raised Height
29 in.
Lifting Height Maximum
29 in.
Shipping Weight
175 lb.
General
Brake Type
Floor Lock
Overall LxWxH
37 5/8 in x 17 5/8 in x 36 in
Caster Dia.
4 in
Platform Gauge
7 ga
Caster Wheel Dia.
4 in
Platform LxW
28 in x 17 5/8 in
Elevation per Stroke
1-31/64"
Platform Type
Solid
Includes
Comfort Grip Padding
Scissor Type
Single
Lifting Height Max.
29 in
Wheel Configuration
(2) Swivel , (2) Rigid with Floor Lock
Lifting Height Min.
8 3/8 in
Wheel/Tread Material
Rubber

Product Description

These manual mobile lift tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far when moving them onto or off of it. The tables' hydraulic lifting mechanism is controlled with a foot pump.
