DAYTON

Dayton 30" Dia., Exhaust Fan with Drive Package, 115/208-230 VAC V, Totally Enclosed Fan-Cooled

Name: Dayton 30" Dia., Exhaust Fan with Drive Package, 115/208-230 VAC V, Totally Enclosed Fan-Cooled
Brand: DAYTON
SKU: 9295655
Price: 1238.57 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#929565-5Pkg Qty: 1

$1,238.57 pkg | $1,238.57 ea

This item requires special shipping, additional charges may apply.

Out of Stock

Shipping to 43085

Expected to arrive between Thu. Apr 17 - Mon. Apr 21.

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.

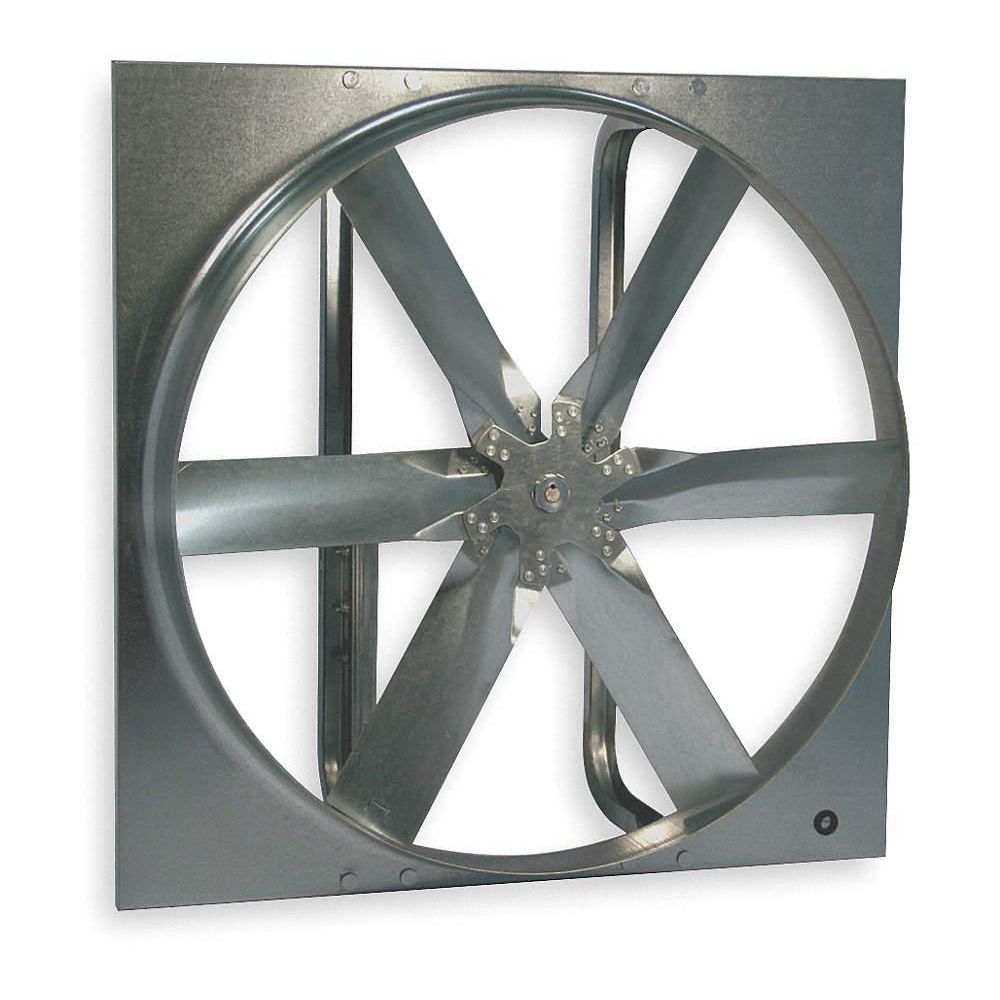

<p>Dayton® standard-duty belt-drive 30" exhaust fan is designed to be used in commercial applications that require high volumes of air at low static pressures. The fan features a 6-blade galvanized-steel propeller, rigid drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and adjustable motor pulley optimize fan performance. Comes complete with a drive package, which includes the appropriate motor, belt, bushings and sheaves (all packed separately) to obtain the rated performance. Mount fan vertically for exhaust operation; horizontally for supply.</p>
<ul>
<li> Air handling-quality bearings meet a minimum of L10-100,000 hr.</li>
<li>UL and C-UL Listed</li>
<li> Unassembled</li>
</ul>
<p>Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel; order No. 1WBU4. Review OSHA codes and UL standards.</p>

Dayton® standard-duty belt-drive 30" exhaust fan is designed to be used in commercial applications that require high volumes of air at low static pressures. The fan features a 6-blade galvanized-steel propeller, rigid drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and adjustable motor pulley optimize fan performance. Comes complete with a drive package, which includes the appropriate motor, belt, bushings and sheaves (all packed separately) to obtain the rated performance. Mount fan vertically for exhaust operation; horizontally for supply.

Air handling-quality bearings meet a minimum of L10-100,000 hr.
UL and C-UL Listed
Unassembled

Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel; order No. 1WBU4. Review OSHA codes and UL standards.

Pkg Qty 1 | Order Qty 1

Technical Specifications

Key Specifications

Assembled/Unassembled

Unassembled

Motor Enclosure

Totally Enclosed Fan-Cooled

Brand

DAYTON

Motor Type

Capacitor-Start

Frame Material

Galvanized Steel

Mounting Position

Horizontal or Vertical

Full Load Amps

11.0/5.4-5.5

Number of Blades

60 Hz

Package Quantity

Item

Standard Duty Exhaust Fan with Motor and Drive Package

Phase

Mfr. Part Number

7CC95

Shipping Weight

93.89 lb.

General

Bearing Size

3/4 in

Maximum Exhaust Airflow @ 0.000 in SP

10,001 to 20,000 cfm

Blade Finish

Galvanized

Maximum Inlet Temperature

104 Degrees F

Enclosure Design

Totally Enclosed Motor

Maximum Noise Level

22 sones

Exhaust Airflow @ 0.000 in SP

10,078 cfm

Maximum Noise Level @ 0.000 in SP @ 5 ft

Greater than 50 sones

Exhaust Airflow @ 0.125 in SP

9,342 cfm

Motor Enclosure Design

Totally Enclosed Fan Cooled (TEFC)

Exhaust Airflow @ 0.250 in SP

8,560 cfm

Motor Horsepower

3/4 hp

Exhaust Airflow @ 0.375 in SP

7,424 cfm

Motor Speed

1,725 RPM

Fan Style

Panel

Motor Speed Range

1601 to 1800 RPM

Fan Voltage

115/208-230V AC

Nameplate Voltage

115/208-230V AC

Flange Depth

1 in

Noise Level @ 0.000 in SP @ 5 ft

22 sones

For Cut-Out Height

32 1/2 in

Noise Level @ 0.125 in SP @ 5 ft

22 sones

For Cut-Out Length

32 1/2 in

Nominal Voltage

115/208-230V AC

For Cut-Out Width

32 1/2 in

Square Opening Required

Greater than 30 in

Includes

Drive Package

Vent Design

Ductless

Includes Motor

Yes

Ventilation Type

Exhaust

Manufacturer Warranty Length

1 yr

Venturi Depth

5 1/2 in

Maximum Airflow

10,078 cfm

Venturi Diameter

30 1/2 in

Product Description

Air handling-quality bearings meet a minimum of L10-100,000 hr.
UL and C-UL Listed
Unassembled

Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel; order No. 1WBU4. Review OSHA codes and UL standards.
