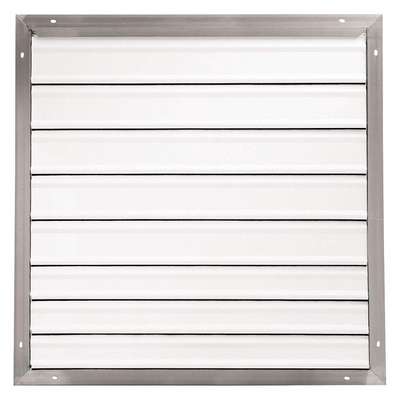

Dayton Backdraft Damper / Wall Shutter: 5.452 sq ft. Shutter Free Area, 30-1/2 in x 30-1/2 in

Hover over image to magnify
Shutter,Wall,30 In
PI_Asset_2107886
PI_Asset_2107887
PI_Asset_2107888
Shutter,Wall,30 In
PI_Asset_2107886
PI_Asset_2107887
PI_Asset_2107888

#939221-3 | Pkg Qty: 1

$150.54 pkg | $150.54 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Number of Panels
1
Item
Backdraft Damper
Package Quantity
1
Mfr. Part Number
3C309
Product Size
33 in. x 33 in.
Mounting Position
Vertical
Shipping Weight
12 lb.
General
Fits Fan Dia.
30 in
Shutter Construction Material
Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Frame Depth
3 in
Shutter Free Area
5.452 sq ft
Frame Opening B
30 in
Shutter Mounting Location
Wall
Max. Velocity
2500 FPM
Shutter Opening Required
30-1/2 in x 30-1/2 in
Mounting Hole Size
Prepunched
Shutter Overall Size
33 in x 33 in

Product Description

This model is a rear flanged exhaust shutter for areas where corrosion may be a problem. The frame is mill finish aluminum. The blades have a white enamel finish and a galvanized reinforcement strip across the top of each blade for added strength and counter balancing efficiency. The blades have a felt seal on the leading edge for quiet closing and better protection from the weather. Ideal for use with direct-drive or belt-driven exhaust fans.

Expertly Selected Product Pairings

Exhaust Fan,30 In,115/230V
$849.56 pkg | $849.56 ea
Item: 914931-4 | Pkg Qty: 1

Documents

Dayton Backdraft Dampers & Wall Shutters Fact Sheet
Dayton Shutters Installation Instructions
