DAYTON

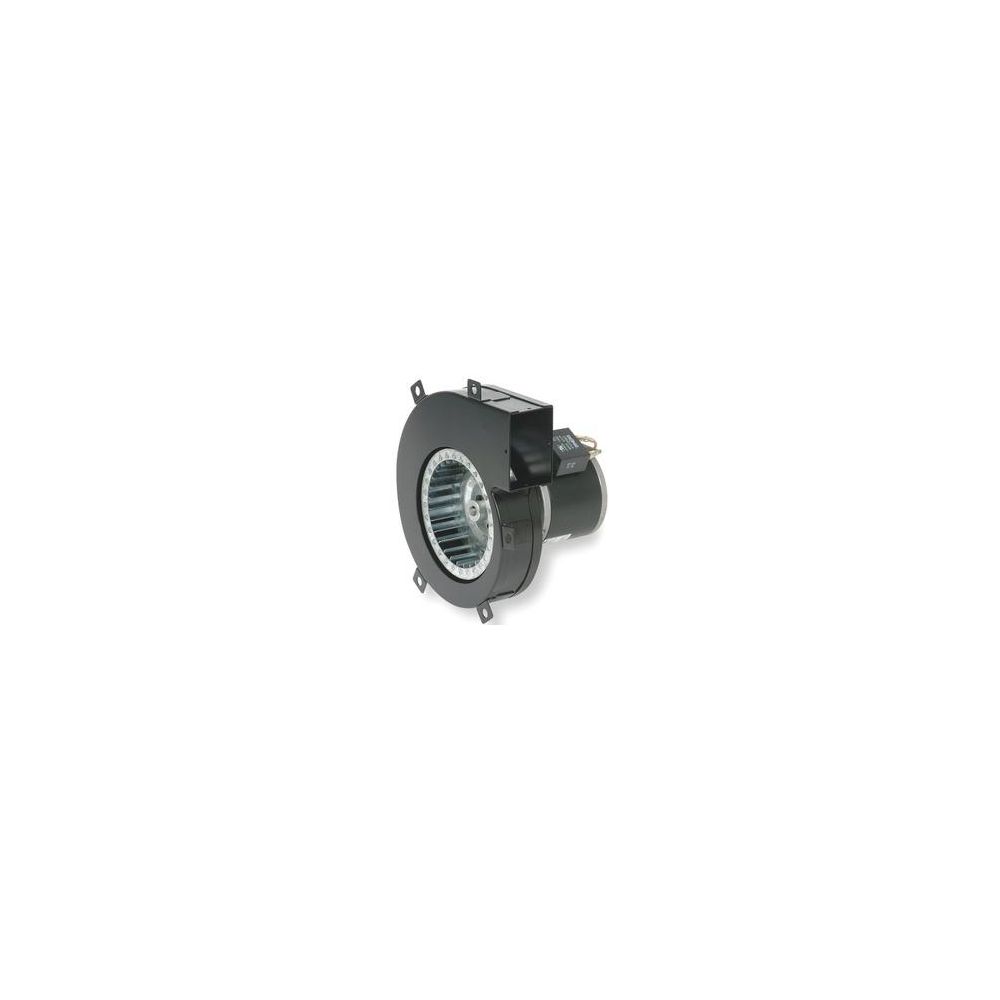

Dayton Rectangular Permanent Split Capacitor OEM Specialty Blower, Flange: No, Wheel Dia: 4-9/16", 115VAC

Name: Dayton Rectangular Permanent Split Capacitor OEM Specialty Blower, Flange: No, Wheel Dia: 4-9/16", 115VAC
Brand: DAYTON
SKU: 9291733
Price: 142.93 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#929173-3Pkg Qty: 1

$142.93 pkg | $142.93 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Apr 01.

Technical Specifications

Key Specifications

Agency Compliance

CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower

Mfr. Part Number

1TDV1

Brand

DAYTON

Motor Enclosure

Open

Drive Type

Direct

Mounting Position

All Position

Full Load Amps

0.52

Overall Height

7-3/8 in.

Housing Color

Black

Package Quantity

Housing Finish

Flat

Phase

Housing Material

Rolled Steel

RPM

2380

50/60

Shipping Weight

5.28 lb.

Item

OEM Blower

Wheel Type

Forward Curve

Lead Length

13 in.

General

Blower Conduit Box

Yes

CFM @ 0.400-In. SP

Blower Motor Type

Permanent Split Capacitor

CFM @ 0.500-In. SP

Blower Outlet Shape

Rectangular

CFM @ 0.600-In. SP

Blower Thermal Protection

Auto

CFM @ 0.700-In. SP

Blower Voltage

115V AC

CFM @ 0.800-In. SP

Blower Wheel Diameter

4 9/16 in

Inlet Dia.

4 3/4 in

Blower Wheel Width

1 7/8 in

Max. Ambient Temp.

104 Degrees F

CFM @ 0.000-In. SP

101

Max. Inlet Temp.

450 Degrees F

CFM @ 0.100-In. SP

Outlet Height

2 9/16 in

CFM @ 0.200-In. SP

Outlet Width

1 11/16 in

CFM @ 0.300-In. SP

Product Description

Acting as a direct replacement for many OEM blowers with the same physical footprint, this blower offers continuous-duty operation and is excellent for general heating, cooling, ventilating, or component cooling. The externally mounted cooling fan (between the motor and the blower wheel) keeps the motor cooler for a longer service life. The durable motor/blower design features ball bearings , a cast-aluminum end shield, a rolled steel body, and a steel cooling fan. The permanent split capacitor motor operates more efficiently than a comparably sized shaded pole motor. The blower housing has side mounting tabs and a 3-sided mounting flange.
