HUBBELL WIRING DEVICE-KELLEMS

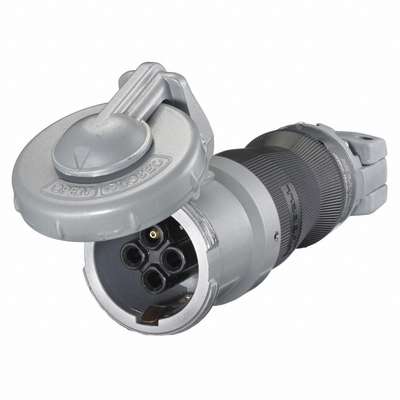

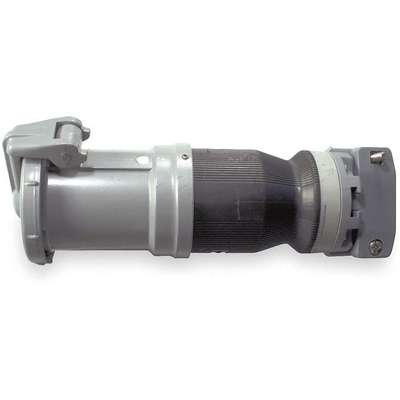

Hubbell Wiring Device-Kellems 30 Amp, 3-Phase Valox 357 Housing and Aluminum Shroud Watertight Pin and Sleeve Connector, Gray

Hover over image to magnify
Pin And Sleeve Connector,30A,

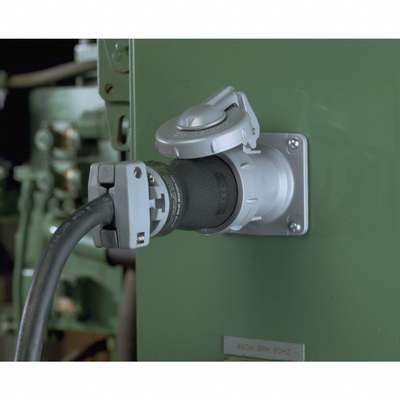

PI_Asset_1980409

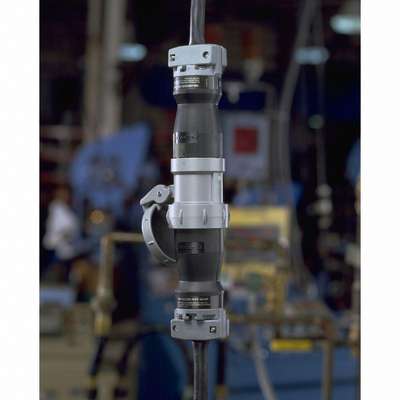

PI_Asset_1987495
PI_Asset_1990504
PI_Asset_1993182
Pin And Sleeve Connector,30A,
PI_Asset_1980409
PI_Asset_1987495
PI_Asset_1990504
PI_Asset_1993182

#928025-8 | Pkg Qty: 1

$475.07 pkg | $475.07 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
30 A
Minimum Operating Temperature
-40 °C
Amps
30 A
Minimum Wire Size
10 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Rating
4X
Cap Type
Spring-Loaded Cap
Number of Poles
3
Color Family
Gray
Number of Wires
4
Compatible With
UL 1686 Class 1 Insulgrip®
Outside Diameter
3.74 in.
Connection Orientation
Straight
Overall Length
8.38 in.
Current Rating
30 A
Package Quantity
1
Features
Pin Chamber Confines Arcing within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal
Phase
Three
For Maximum Cable Diameter
1.2 in.
Pin & Sleeve Standards
UL 1682
For Minimum Cable Diameter
0.375 in.
Power Indicating Light
No
Grounding
Grounded
Reverse Service
No
Grounding Style
Style 2
Shipping Weight
2.05 lb.
Housing Material
Thermoplastic
Shrouded
Yes
Housing Material Type
Non-Metallic
Standards
CSA Certified C22.2 No. 182.1, UL 1682, UL Listed and CSA Certified Type 4X
IP Rating
IP68, IP69K
Switch Rated
No
Item
Watertight Pin and Sleeve Connector
Type
Insulgrip Pin and Sleeve, Interchangeable, Female Connector Body
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 °C
Voltage
600VAC/250VDC
Maximum Wire Size
8 AWG
Voltage Rating
250V DC, 600V AC
Mfr. Part Number
HBL430CS2W
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
30
Phase - Electrical
3
Features
Abuse Resistant, Ground Through Dedicated Ground Pin
Voltage - Plugs and Receptacles
600V AC/250V DC

Product Description

Watertight Pin and Sleeve Connector, Body Material - Pin and Sleeve Valox 357 Housing and Aluminum Shroud, Amps - Plugs and Receptacles 30, Voltage - Plugs and Receptacles 600V AC/250V DC, Color - Plugs and Receptacles Gray, Number of Poles 3, Number of Wires 4, Phase - Electrical 3, Switch Rated No, Grounding Style 2, HP, Features Abuse Resistant, Ground Through Dedicated Ground Pin, Standards CSA Certified, UL Listed 1686-C1, NEMA Rating 4X
