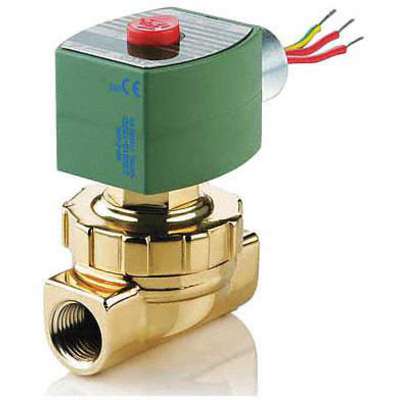

Steam and Hot Water Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed Valve Configurati

Hover over image to magnify
Solenoid Valve,24VDC,15.6,H,
Solenoid Valve,24VDC,15.6,H,

#927429-4 | Pkg Qty: 1

$429.23 pkg | $429.23 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Jan 15.
|

Technical Specifications

Key Specifications
Agency Compliance
UL Listed
NEMA Rating
1, 2, 3, 3S, 4, 4X
Ambient Temperature
Up to 125 deg. F
Overall Height
4-13/64 in.
Body Material
Brass
Overall Length
2-7/8 in.
Brand
REDHAT
Overall Width
2-53/64 in.
Coefficient of Volume
8.8
Package Quantity
1
Configuration
Normally Closed
Pipe Size
3/4 in.
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Shipping Weight
2.8 lb.
Item
Steam and Hot Water Solenoid Valve
Valve Design
2-Way/2-Position
Media Type
Hot Water, Steam
Voltage
24 VDC
Mfr. Part Number
8220G408
orifice Dia._spec_s
3/4 in.
General
Ambient Temp. Range
125 Degrees F
Max. Fluid Temp. Steam
300 Degrees F
Center Line Pipe Center Size
3 1/2 in
Max. Operating Pressure Differential Hot Water
150 psi
Coil Enclosure
Watertight No Junction Box
Max. Operating Pressure Differential Steam
50 psi
Coil Insulation Class
H
Min. Operating Pressure Differential
0 psi
Environmental Rating - Valves
Indoor, Outdoor
Valve Configuration
Normally Closed
Max. Fluid Temp. Hot Water
210 Degrees F

Product Description

2-Way Normally Closed and Normally Open Steam and Hot Water Solenoid Valves

  • Max. ambient temp.: 125°F Brass body
  • For high-temperature fluid applications involving steam or hot water. Coil included.
  • UL Recognized and CSA Certified.
