REDHAT

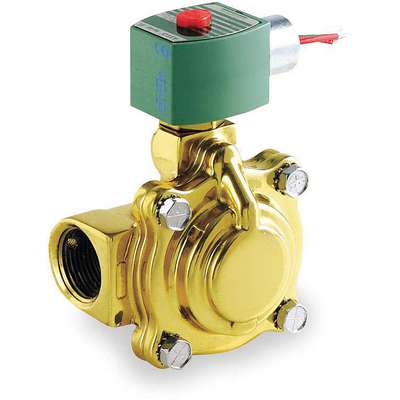

Solenoid Valve: 1 in Pipe Size - Valves, 120V AC, 5 psi Min. Op Pressure Differential, Brass, F, NBR
#926885-7 | Pkg Qty: 1
$382.17 pkg | $382.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA Certified
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Brass
Overall Height
5-5/8 in.
Brand
REDHAT
Overall Length
3-3/4 in.
Coefficient of Volume
13
Overall Width
3-3/8 in.
Configuration
Normally Closed
Package Quantity
1
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Pipe Size
1 in.
Hz
60
Shipping Weight
4.5 lb.
Item
Solenoid Valve
Valve Design
2-Way/2-Position
Maximum Fluid Temperature
180°F
Voltage
120 VAC
Media Type
Air/Inert Gas, Light Oil and Water
orifice Dia._spec_s
1 in.
Mfr. Part Number
8210G004
General
Application
Car Wash, Air Compressors, Pumps, Laundry Equipment, Industrial Water Control
Max. Operating Pressure Differential Water
150 psi
Body Material - Valves
Brass
Media - Valves
Air, Inert Gases, Light Oil, Water
Center Line Pipe Center Size
4 in
Min. Operating Pressure Differential
5 psi
Coil Enclosure
Watertight No Junction Box
Pipe Size - Valves
1 in
Coil Insulation Class
F
Seal Material - Valves
NBR
Environmental Rating - Valves
Indoor, Outdoor
Solenoid Valve Product Group
Solenoid Valve
Max. Operating Pressure Differential Air/Inert Gas
150 psi
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Light Oil
100 psi
Valve Ways and Positions
2-Way/2-Position
Product Description
1-pc. molded epoxy coil enclosures have built-in 1/2" NPT conduit hubs with strain relief. Use high-flow valves for liquid, corrosive, and air/inert gas service applications—including car washes, air compressors, pumps, laundry equipment, and industrial water control. Max. ambient temp.: 140°F. Normally closed valves. CSA Certified.
Expertly Selected Product Pairings
$217.94 pkg | $217.94 ea
$168.18 pkg | $168.18 ea
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Solenoid Valve,Brass,Nc,Air,
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 3UK60 | Solenoid Valve,Brass, | |
UNSPSC CODES | 40141605 | ||
VMRS (ATA) CODES | 053-006-009 | Solenoid Valve,Brass, |
