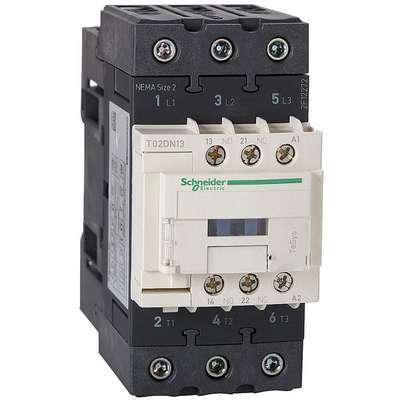

Schneider Electric 24VDC NEMA Magnetic Contactor; No. of Poles: 3, Reversing: No, 45 Full Load Amps

Name: Schneider Electric 24VDC NEMA Magnetic Contactor; No. of Poles: 3, Reversing: No, 45 Full Load Amps
Brand: SCHNEIDER ELECTRIC
SKU: 9272685
Price: 845.84 USD
Availability: InStock

Hover over image to magnify

Schneider Electric 24VDC NEMA Magnetic Contactor; No. of Poles: 3, Reversing: No, 45 Full Load Amps Video

Double tap image to magnify

#927268-5Pkg Qty: 1

$845.84 pkg | $845.84 ea

In Stock

Shipping to 43085

Ships from supplier. Expected to arrive by end of Jun, 2025.

Technical Specifications

Key Specifications

Action

Nonreversing

Item

NEMA Magnetic Contactor

Brand

SCHNEIDER ELECTRIC

Mfr. Part Number

T02DN13BD

Coil Volts

24 VDC

Number of Poles

Depth

4.72 in.

Pack Quantity

Enclosure NEMA Rating

No Enclosure

Reversing

Enclosure Type

Open

Shipping Weight

2.2 lb.

Full Load Amps

45 A

Width

2.17 in.

Height

4.8 in.

General

Auxiliary Contact Form

1NC/1NO

HP @ 3 Phase - 230V

Contactor Type

NEMA

HP @ 3 Phase - 240V

15 hp

Frame / Series / Class / Code

TeSys

HP @ 3 Phase - 480V

25 hp

Full Load Amps-Inductive

HP @ 3 Phase - 575V

25 hp

HP @ 1 Phase - 120V

3 hp

NEMA Contactor Size

HP @ 1 Phase - 230V

7-1/2

NEMA Size

HP @ 1 Phase - 240V

7 1/2 hp

Standards

CSA, UL

HP @ 3 Phase - 208V

10 hp

Product Description

NEMA contactor uses common accessories across the entire TeSys family of NEMA and IEC products for simplicity and reduced inventory. Provides high reliability with long mechanical and electrical life, in a space-saving design that can be easily installed with no tools required. Replaceable coils. Front- and side-mount accessories can be easily snapped on. NEMA size is printed on face.
