INGERSOLL RAND

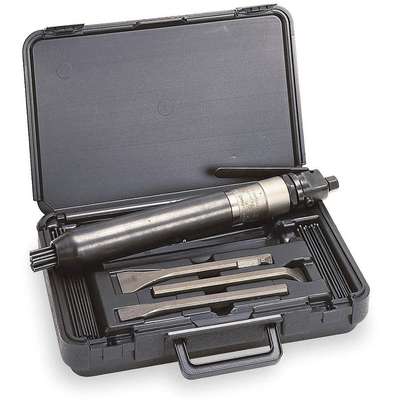

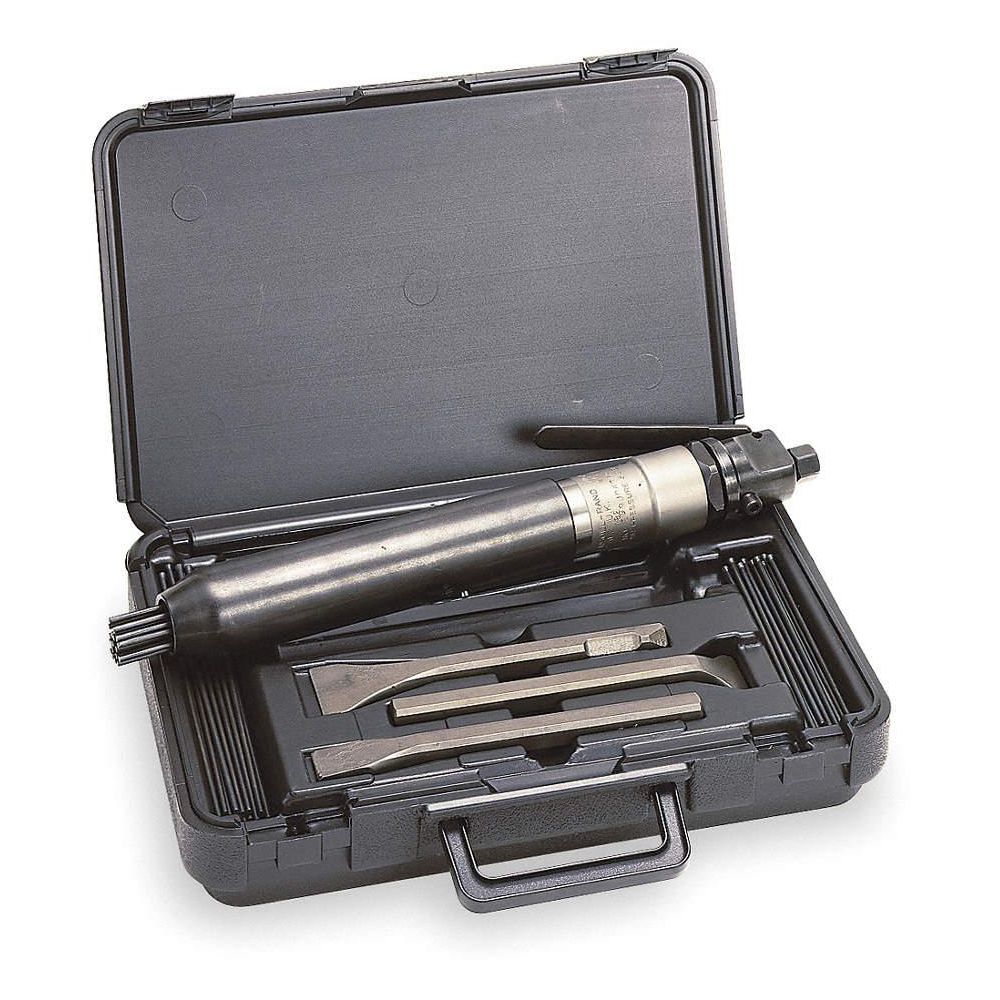

Industrial Duty Air Needle/Chisel Scaler Kit; 1-1/16" Stroke with 4000 Blows Per Minute

Hover over image to magnify

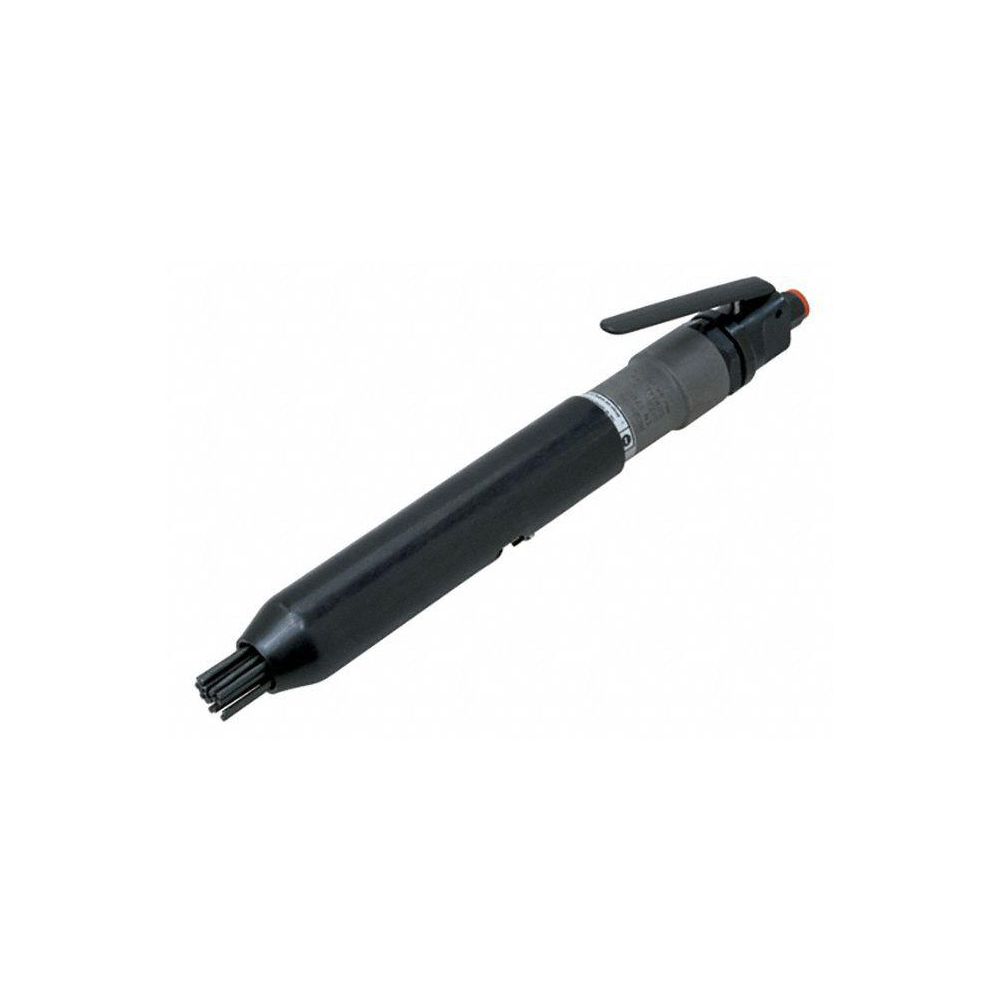

Needle/Chisel Scaler,1-1/16 In.
PI_Asset_1354210
Needle/Chisel Scaler,1-1/16 In.
PI_Asset_1354210

#913622-3 | Pkg Qty: 1

$939.14 pkg | $939.14 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Minimum Hose Size
5/16 in.
Air Inlet NPT
1/4 in.
Needle Scaler Body Style
In-Line
Avg CFM @ 15 Sec Run Time
6-1/2
Overall Length
9 in.
Blows per Minute
4000
Package Quantity
1
Brand
INGERSOLL RAND
Required Pressure
90 psi
CFM @ Full Load
13
Shank
1/2 in. Square
Duty
Industrial
Shipping Weight
10.4 lb.
Handle Type
Straight
Stroke Length
1-1/16 in.
Housing Lock
Needle
Throttle
Lever
Item
Needle/Chisel Scaler Kit
Type
Industrial Duty
Mfr. Part Number
182K1
General
Accessory Free Tool Change
Yes
Compatible Shank Size
1/2 in
Air Inlet Connection Size
1/4 in
Includes
(38) 5 in Needles; (19) 7 in Needles; 6 1/8 in Angle Chisel; 6 1/8 in Straight Chisel; 7 in Flat Chisel; Case
Air Inlet Gender
Female
Needle Diameter
1/8 in
Air Inlet Type
NPT
Needle Holder Capacity
19
Air Pressure
90 psi
Needle Length
5 in, 7 in
Anti-Vibration Technology
Yes
Number of Needles
57
Compatible Collar Shape
Notched
Scaler Type
Needles and Chisels
Compatible Shank Shape
Square
Shank Design
IR

Product Description

These scalers accept needles or chisels and have an inline design that aligns the barrel with the tool grip to form a slim, straight tool for reaching through openings and into recesses or tight spaces. They have a removable retainer that can be interchanged to hold a bundle of needles or a chisel. Their lever switch activates the tool to strike the needles or chisel against surfaces to clean off coatings and buildup. The needles are loosely bundled rods that move independently to follow curves and contours. They are typically used to remove rust, mill scale, and paint. Chisels are used individually to provide a cutting edge or point that's more effective than needles at scraping, chipping, and breaking through heavy deposits. Needles and chisels can be changed out for different sizes or types as long as they are compatible with the scaler. They can be replaced when they break or wear out.
