ASHLAND CONVEYOR

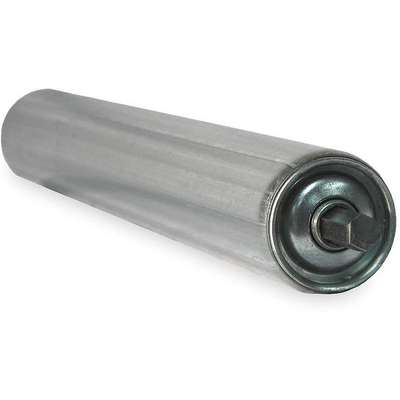

Ashland Conveyor Replacement Roller, General Purpose, 17" For Between Frame Width, 270 lb. Roller Load Capacity

Hover over image to magnify
Galv Replacement Roller,1.9In
PI_Asset_928045
Galv Replacement Roller,1.9In
PI_Asset_928045
Ashland Conveyor Replacement Roller, General Purpose, 17" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, General Purpose, 17" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, General Purpose, 17" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, General Purpose, 17" For Between Frame Width, 270 lb. Roller Load Capacity Video
Ashland Conveyor Replacement Roller, General Purpose, 17" For Between Frame Width, 270 lb. Roller Load Capacity Video

#926863-6 | Pkg Qty: 1

$24.43 pkg | $24.43 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Axle Shape
Hex
Motorized
No
Axle Size
7/16 in.
Mounting
Spring Retained
Bearings
Commercial Light Oil
Overall Width
18-9/16 in.
Brand
ASHLAND CONVEYOR
Package Quantity
1
Construction
16 ga. Galvanized Steel
Roller Diameter
1-15/16 in.
Conveyor Roller Material
Steel
Roller Gauge
16 ga.
Diameter
1-29/32 in.
Roller Performance
General Purpose
Duty Rating
Medium-Duty
Shaft
7/16 in. Hex Plain Steel
For Between Frame Width
17 in.
Shipping Weight
3.4 lb.
Item
Replacement Roller
Type
Medium Duty
Mfr. Part Number
KG17
General
Between Frame (In.)
17
Roller Dia.
1 15/16 in
Capacity (Lb.)
270
Roller Finish/Coating
Galvanized
Dia. (In.)
1-29/32
Roller Load Capacity
270 lb

Product Description

General purpose steel conveyor rollers are suitable for light-duty and medium-duty unpowered (gravity-flow) conveying tasks in warehousing, package handling, manufacturing, and distribution applications. They are typically an economical alternative to rollers made from other materials. The rollers have standard ball bearings that roll smoothly at slow speeds and start rolling more easily than precision bearings. Conveyor rollers are used in roller conveyors and material transport stands to support and move bulky items such as boxes and totes. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads. These rollers can be used to replace or upgrade the existing rollers on compatible conveyors or stands.

Conveyor rollers are used in unpowered (gravity-flow) roller conveyors, powered roller conveyors, roller-bed belt conveyors, and material transport stands to support and move bulky items such as boxes and totes. These replacement rollers can be used to replace or upgrade the existing rollers on compatible conveyors or stands. Each roller has a spring-retained axle that can be pushed in to install or remove the roller from the conveyor frame or stand. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads in warehousing, package handling, manufacturing, and distribution tasks. Loads roll forward and back on the rollers, and they can be pushed from side to side along the width of the conveyor.

Expertly Selected Product Pairings

Roller Bracket,For 7/16 In Hex
$22.96 pkg | $22.96 ea
Item: 929813-8 | Pkg Qty: 1

Item Barcode
9268636
Galv Replacement Roller,1.9In
 NameItemDescription
Grainger DropshipGrainger Dropship1VAY1Galv Replacement
UNSPSC CODESUNSPSC CODES24101701
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Galv Replacement
