DAYTON

3/4 HP Submersible Sump Pump, Diaphragm Switch Type, Cast Iron Base Material

Hover over image to magnify
Sump Pump,3/4 Hp,1-1/2" NPT,15
PI_Asset_948163
PI_Asset_948164
Sump Pump,3/4 Hp,1-1/2" NPT,15
PI_Asset_948163
PI_Asset_948164

#926080-3 | Pkg Qty: 1

$617.34 pkg | $617.34 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Alarm
No
Maximum Diameter Solids
1/2 in.
Alarm Included
No
Maximum Head
37 ft.
Amps
10.5 A
Maximum Liquid Temperature
104°F
Base Material
Cast Iron
Maximum Temperature (Deg. F)
104
Bearing Type
Upper and Lower Ball
Mechanical Seal
SiC
Brand
DAYTON
Mfr. Part Number
3BB80
Cord Length
15 ft.
Motor Type
Oil-Cooled
Diameter
10 in.
NEC Cord Designation
SJTOW
Discharge NPT
1-1/2 in. F
Off Point
5 in.
Duty
Intermittent
On Point
14-1/2 in.

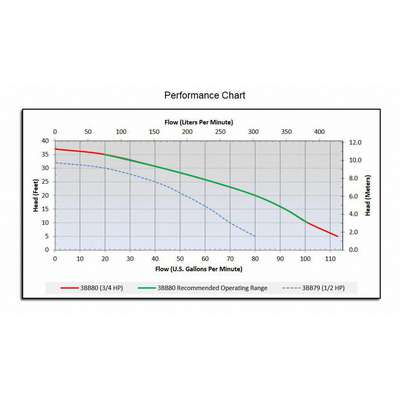

GPM of Water @ 10 Ft. of Head
101
Package Quantity
1
GPM of Water @ 15 Ft. of Head
92
Pump Body Material
Cast Iron
GPM of Water @ 20 Ft. of Head
80
Pump HP
3/4
GPM of Water @ 25 Ft. of Head
63
Pump Type
Automatic
GPM of Water @ 30 Ft. of Head
43
Shaft Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
113
Shaft Seal
Silicon Carbide
Gauge/Conductor
16/3
Shaft Seal Material
Carbon Ceramic
Height
13 in.
Shipping Weight
44.05 lb.
Horsepower
3/4
Sump Pump Item
Submersible Sump Pump
Housing
Cast Iron
Switch Type
Diaphragm
Housing Material
Cast Iron
Top Material
Cast Iron
Hz
60
Type
Automatic
Impeller Material
Cast Iron
Voltage
120 VAC
Item
Submersible Sump Pump
General
Body Dia.
10 in
Flow Rate @ 5 Ft. of Head
113 gpm
Discharge Dia.
1 1/2 in
Includes
Diaphragm Switch
Discharge Gender
Female
Nominal Voltage
110 V AC
Discharge Standard
NPT
Rated Voltage
120V AC
Flow Rate @ 10 Ft. of Head
101 gpm
Shaft Seal Material - Pumps
Carbon Ceramic
Flow Rate @ 15 Ft. of Head
92 gpm
Switch Actuation
Diaphragm
Flow Rate @ 20 Ft. of Head
80 gpm
Switch Electrical Connection
Piggyback

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.
