SCHNEIDER ELECTRIC

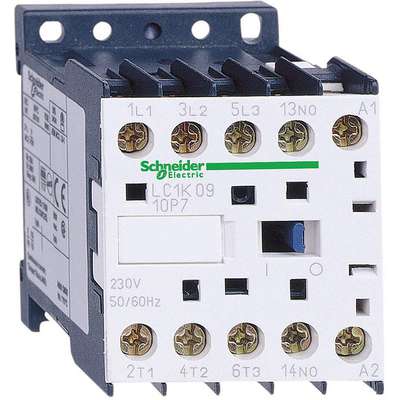

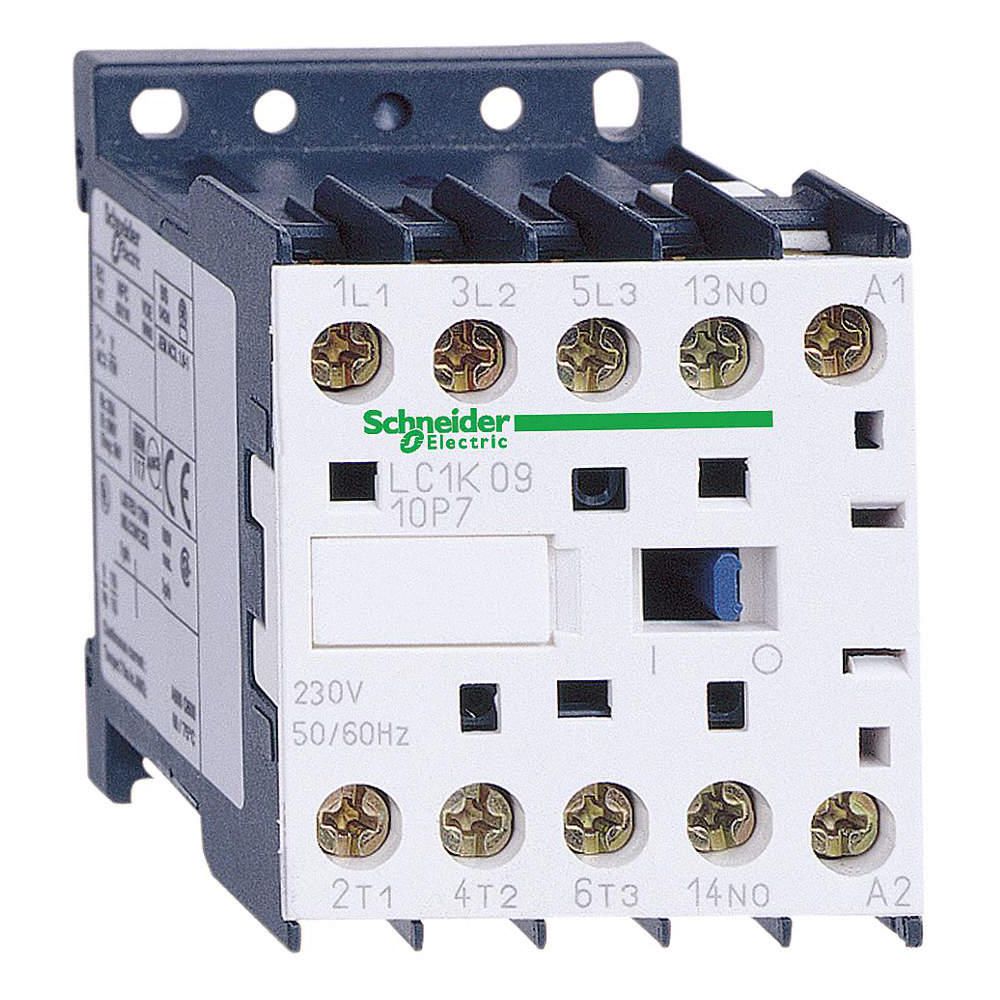

Schneider Electric 110VAC Miniature IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 6 Full Load Amps-Inductive

Hover over image to magnify
Iec Mini Magnetic Contactr,
Iec Mini Magnetic Contactr,
Double tap image to magnify
Iec Mini Magnetic Contactr,
Iec Mini Magnetic Contactr,

#926853-1Pkg Qty: 1

$74.75 pkg | $74.75 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
Action
Nonreversing
Item
Miniature IEC Magnetic Contactor
Brand
SCHNEIDER ELECTRIC
Mfr. Part Number
LC1K0610F7
Coil Volts
110 VAC
Number of Poles
3
Depth
1.97 in.
Pack Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Series
TeSys K
Height
1.73 in.
Shipping Weight
.4 lb.
Hz
50/60
Width
1.73 in.
General
Auxiliary Contact Form
1NO
HP @ 1 Phase - 230V
1-1/2
Contactor Type
IEC
HP @ 3 Phase - 575V
3 hp
Frame / Series / Class / Code
TeSys
Standards
CSA, UL
Full Load Amps-Resistive
15 A

Product Description

Minicontactors

  • Mechanical life: contactors, 10 million operations; reversing contactors, 5 million operations. Inclined wire guides and captive screws. IP20 touch-safe with removable terminal cover.
  • TeSys Minicontactors and Overload Relays
  • DIN rail- or panel-mount general-duty K-line minicontactors and overload relays fit into small spaces. Combine a minicontactor with an overload relay to make a complete motor starter. Rated 600VAC. Screw-clamp terminals.
  • UL Listed, CSA and CE Certified.
