SCHNEIDER ELECTRIC

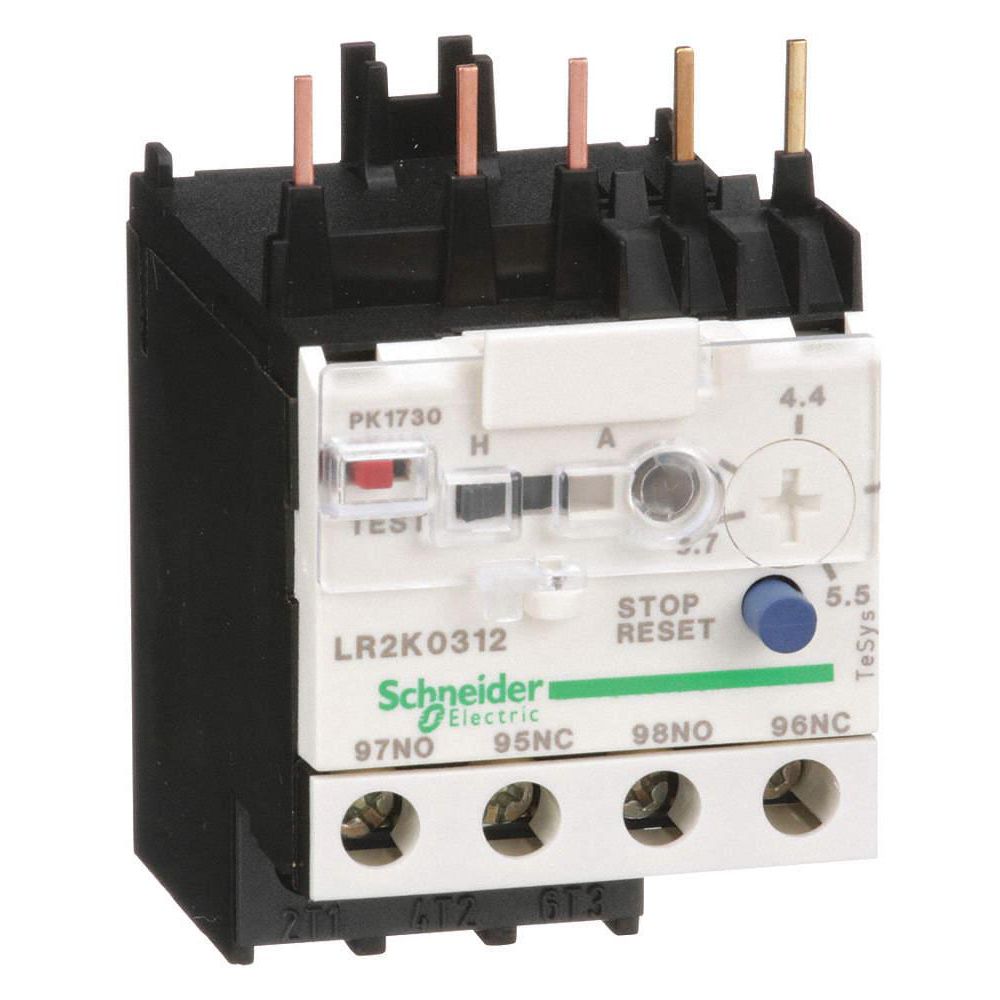

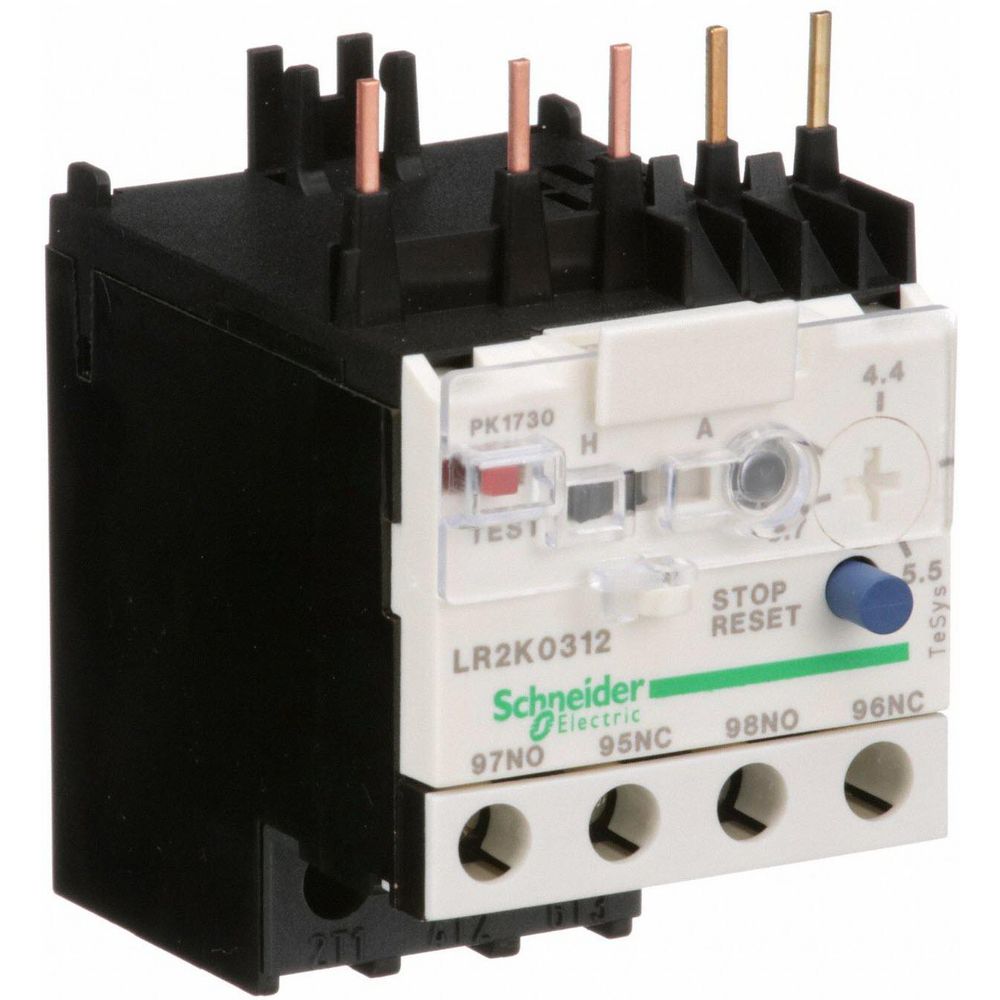

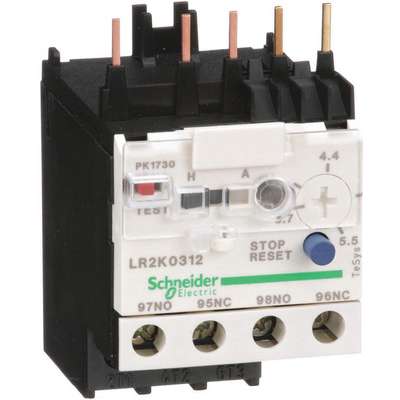

Schneider Electric IEC Style Overload Relay, 3.8 to 5.5A, 3 Poles, Auto, Manual Reset, Trip Class: 10
Hover over image to magnify
#926108-7 | Pkg Qty: 1
$90.19 pkg | $90.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Current Range
3.80 to 5.50A
Sensing Method
Bimetallic
Depth
2.28 in.
Shipping Weight
.35 lb.
Height
2.56 in.
Starter Type
IEC
Item
Overload Relay
Type
Overload Relay
Mfr. Part Number
LR2K0312
Voltage
690 VAC/250 VDC
Number of Poles
3
Width
1.77 in.
General
Body Depth - Relay
2.56 in
Overload Relay Current Range
3.8 to 5.5A
Body Height - Relay
2.28 in
Reset Type - Relay
Auto, Manual
Body Width - Relay
1.77 in
Standards
UL File/CCN E164353 / NKCR, CSA LR43364 3211 03, IEC 60947, CE, RoHS
Code
X to Z
Trip Class
10
Features
Single Phase Sensitivity; Differential
Trip Class - Overload
10
For Use With
TeSys K AC or DC IEC Contactor
Use With - Contactors and Starters
LC7K, LP1K, LP4K Contactors, Mfr. Series LC1K
Overall Height - Relay
2.28 in
Product Description
For 3-phase applications, this lockable, sealable, ambient-compensated overload relay has Class 10 trip characteristics with 1-phase sensitivity. The current range is adjustable. Features include manual/auto reset and test trip. Mount it to the underside of a contactor.
