TEMPCO

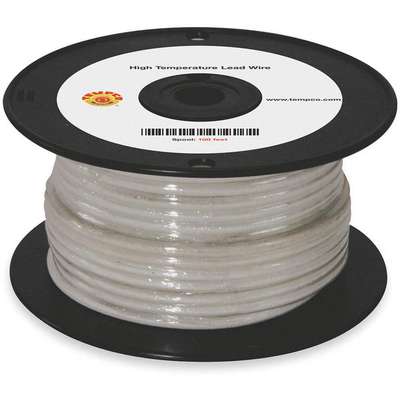

Tempco 100 ft., 600VAC High Temperature Lead Wire with MG Cable Type and 10 AWG Wire Size, Natural

Hover over image to magnify
Wire,High Temperature
PI_Asset_1353831
Wire,High Temperature
PI_Asset_1353831

#926818-9 | Pkg Qty: 1

$466.55 pkg | $466.55 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
TEMPCO
Mfr. Part Number
LDWR-1015
Cable Type
MG
Nominal Outside Diameter
0.203 in.
Cable/Wire Type
MG
Package Quantity
1
Color Family
Natural
Shipping Weight
5.6 lb.
Conductor Material
Nickel Clad Copper
Spool Length
100 ft.
Insulation
Mica insulation with Fiberglass Over-Braid
Stranding
105 x 30
Item
High Temperature Lead Wire
Voltage
600 VAC
Jacket Color
Natural
Wire Color
Natural
Jacket Type
Mica Insulation Over Conductors Covered By Fiberglass Over Braid Impregnated With High Temperature Finish
Wire Gauge
10 AWG
Length
100 ft.
Wire Size
10 AWG
Maximum Amps
75 t mbient Temp of 104F/40C
Wire and Cable Item
High Temperature Lead Wire
Maximum Temperature (Deg. C)
450
Wire/Cable Insulation Material
Fiberglass, Mica
Maximum Temperature (Deg. F)
842
Wire/Cable Size
10 AWG
General
Cable Type - Wire and Cable
MG
Temp. Rating
842°F
Insulation Material - Wire and Cable
Fiberglass, Mica
Trade Designation
MG
Standards
UL 5335/5107, CSA AWM Class 1 Group A/B FT-1
Wire Size - Wire and Cable
10 AWG

Product Description

Lead wire is a small- to medium-gauge wire (22 to 10 AWG) with an insulated conductor for use in high-temperature environments. The insulation won't melt and safeguards the conductor core from heat to extend machinery life. High-temperature lead wire is typically used to create electrical connections and provide power in industrial heaters, furnaces, cement kilns, and food-service appliances.

Lead, hookup, and machine tool wire are thin, small- to medium-gauge (24 to 8 AWG) insulated wire used to establish internal electrical connections and provide power in appliances, motors, power tools, or other electronic equipment. They are commonly used in product assembly applications in manufacturing facilities.
