Home All Products Fluid Transfer & Pumps Water Pumps Engine Driven Pumps Portable Diaphragm Pumps SKU: 922355-6
Share
Print
DAYTON

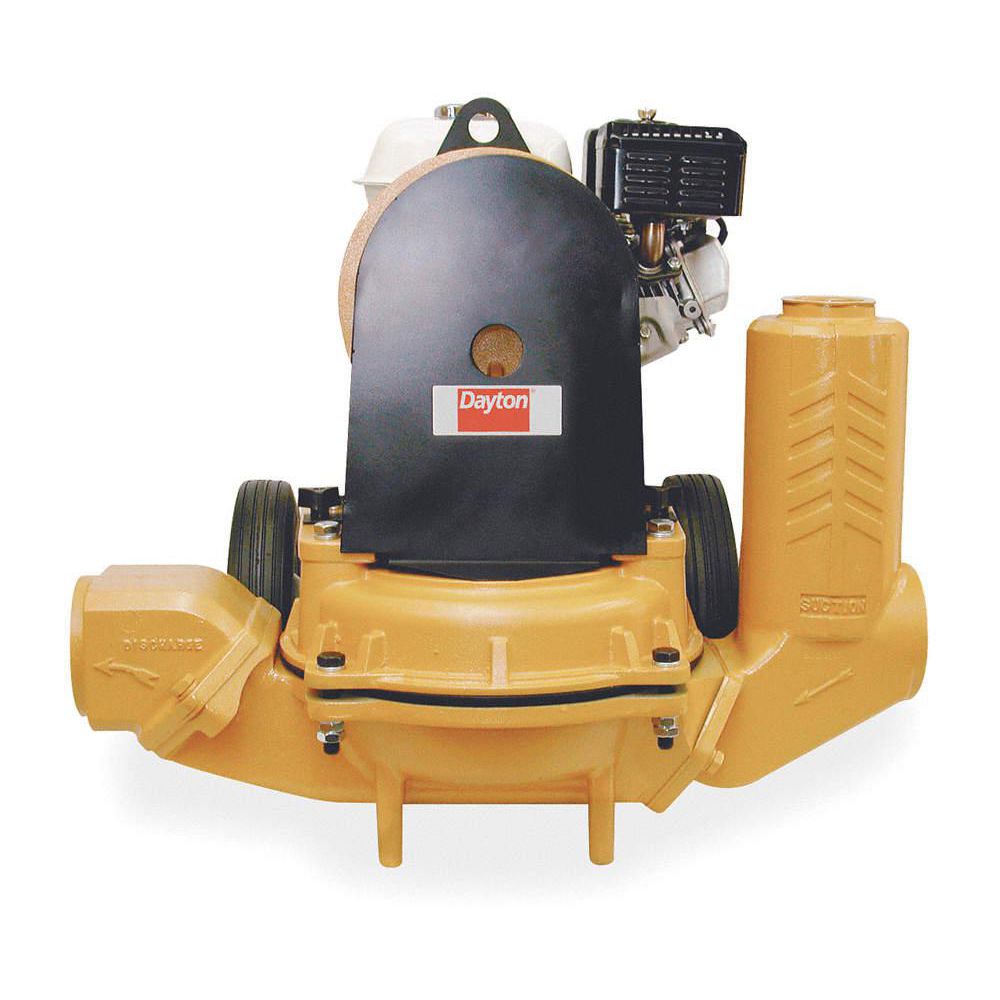

Aluminum Honda 5-1/2 HP Thermoplastic Diaphragm Pump

Hover over image to magnify
Pump,Engine Driven
Pump,Engine Driven

#922355-6 | Pkg Qty: 1

$2,479.94 pkg | $2,479.94 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
California Emission Codes
Item
Pump
Brand
DAYTON
Material of Construction
Aluminum
Check Valve
Polyurethane
Maximum Pressure
11 psi
Engine RPM
1800 to 2750
Mechanical Seal
Neoprene
Engine/Motor Type
Honda
Mfr. Part Number
4TA88
GPH of Water @ 10 Ft. of Head
5220
NPT Port
3
GPH of Water @ 15 Ft. of Head
4500
Package Quantity
1
GPH of Water @ 20 Ft. of Head
3840
Seal Type
Diaphragm
GPH of Water @ 5 Ft. of Head
5280
Sensor Type
Low Oil
Handle
Steel
Shipping Weight
173 lb.
Horsepower
5-1/2
Type
Diaphragm
Ignition Type
Electronic
General
Diaphragm Type
Thermoplastic
HP
5 1/2 hp
Discharge Dia.
3 in
Includes
2 Nipples, Check Valve
Discharge Gender
Female
Inlet Dia.
3 in
Discharge Standard
NPT
Inlet Gender
Female
Flow Rate @ 10 Ft. of Head
75.0 gpm
Inlet Standard
NPT
Flow Rate @ 20 Ft. of Head
60.0 gpm
Liquid Temperature Range
160 deg. F
For Use With
Nonflammable Liquids
Max. Diameter Solids
1-5/8 in
Frame Design - Pumps
Wheeled Transport Dolly
Max. Head
25.0 ft
GPH of Water @ 25 Ft. of Head
3540
Max. Suction Lift
20 ft
GPH of Water @ 8 Ft. of Head
5280
Pump Mechanism
Diaphragm

Product Description

These remote-location engine-driven trash and utility pumps are gasoline powered so they don't need to be placed near an electrical outlet, and they run for long periods of time between refueling. They transfer large amounts of water containing medium to large solids, and they drain water using an inlet hose so the pumps don't have to be placed in the water that needs to be drained. Pumps have a tubular frame to protect the engine and the pump.
