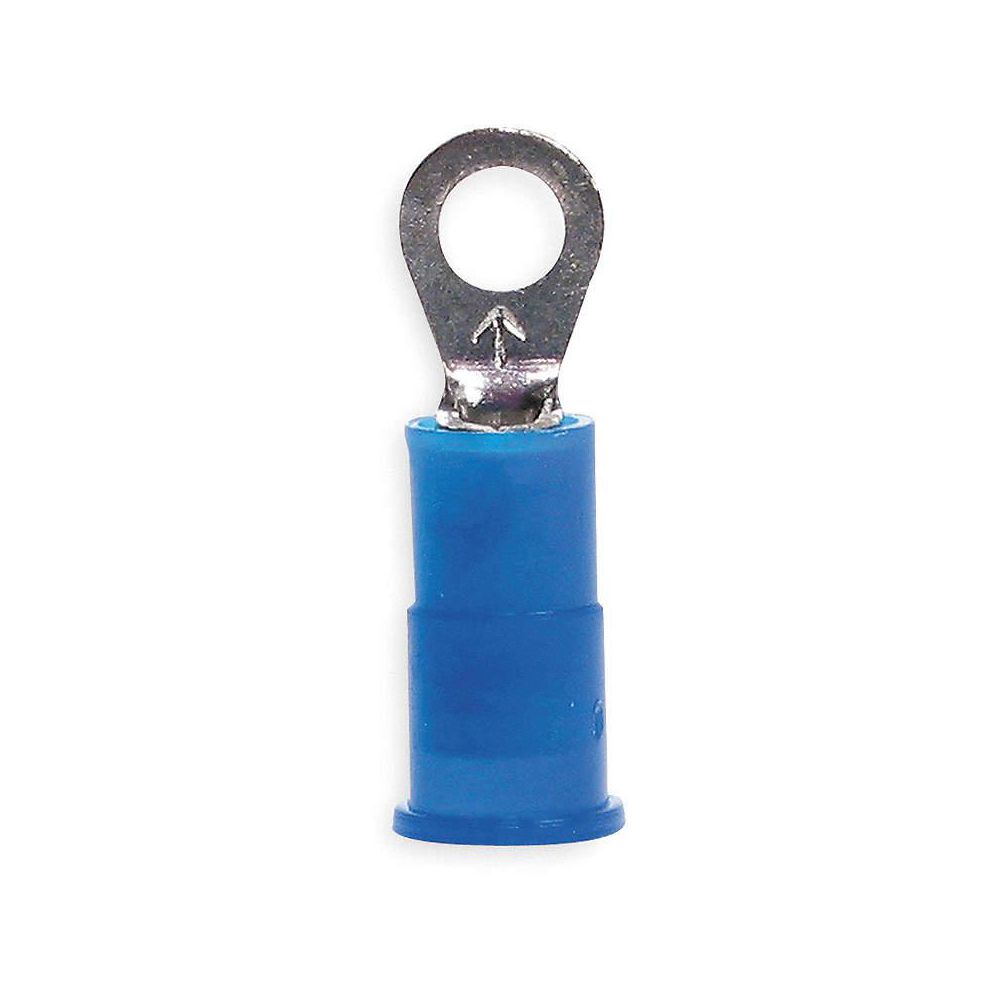

3M Ring Terminal: Blue, Nylon, #6 Stud Size, 16 Awg To 14 Awg Wire Size Range, 100 Pk

Name: 3M Ring Terminal: Blue, Nylon, #6 Stud Size, 16 Awg To 14 Awg Wire Size Range, 100 Pk
Brand: 3M
SKU: 9266887
Price: 148 USD
Availability: InStock

Hover over image to magnify

#926688-7 | Pkg Qty: 100

$148.00 pkg | $1.48 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

Maximum Voltage

600 V

Color Code

Blue

Mfr. Part Number

MNG14-6R/SX

Color Family

Blue

Overall Length

0.810 in.

Connection Material

Copper

Package Quantity

100

Connection Type

Crimp

Seam

Brazed

Insulation Color

Blue

Shipping Weight

.25 lb.

Insulation Type

Nylon

Stud Size

Item

Ring Terminal

Stud/Tab Size

Material of Construction

Tin-Plated Copper

Terminal Connection

Crimp

Maximum Temperature

221 deg. F

Wire Range

16 to 14 AWG

General

Barrel Style

Butted

RoHS Compliant

Yes

Compatible with Product Type

Building Wire, Fixtures or Luminaires, Signs

Seam Style

Butted

Contact Finish

Tin

Standards

CSA Certified

Features

Funnel Entry

Terminal Shape

Standard Ring Tongue

For Wire Size

14 AWG, 16 AWG

Termination Style

Crimp

For Wire Sizes

16 AWG to 14 AWG

Tongue Length

0.56 in

Insulation Coverage

Partial Coverage

Tongue Thickness

0.03 in

Max. Temp.

221°F

Tongue Width

0.25 in

Ring Width Ranges

0.00 - 0.25 inches

Tongue Width - Wire Connector

0.25 in

Product Description

Choose these 3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminals for an excellent fit and dependable results. Their tin-plated coating fends off corrosion damage, while their underlying electrolytic copper structure provides excellent conductivity. These terminals are sized for 16 to 14 AWG wiring, and their standard-style ring tongues secure tightly around stud size #6.
