OSG

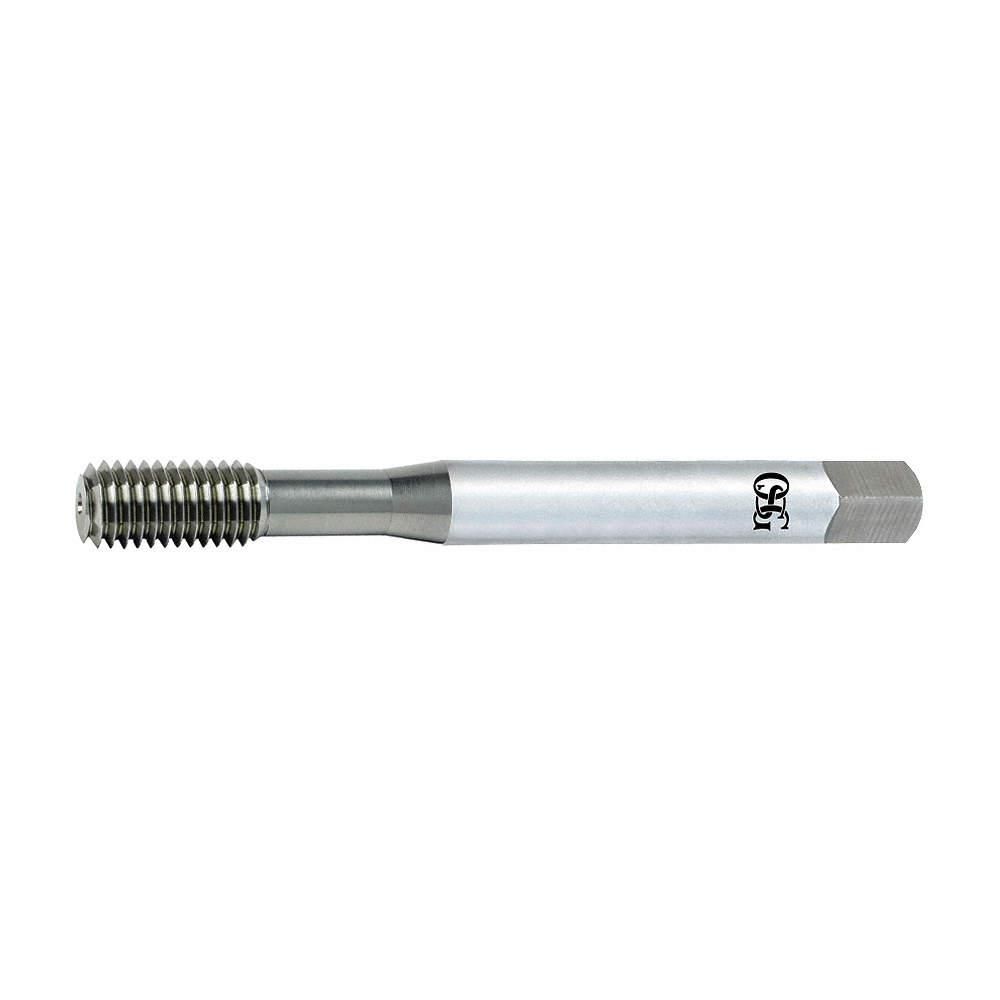

Thread Forming Tap, Thread Size M2.5x0.45, Metric Coarse, Overall Length 46.00 mm, Cobalt

Hover over image to magnify
Thread Forming Tap,M2.5x0.45,
Thread Forming Tap,M2.5x0.45,
Double tap image to magnify
Thread Forming Tap,M2.5x0.45,
Thread Forming Tap,M2.5x0.45,

#937548-2Pkg Qty: 1

$24.31 pkg | $24.31 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Brand
OSG
Shank Length
32 mm
Cutting Direction
Right
Shipping Weight
.01 lb.
Drill Size
2.27 mm to 2.32 mm
Spiral Direction
Neutral
Finish
Bright
Square Size
2.79 mm
Item
Thread Forming Tap
Subgroup | Tap
Thread Forming
List Number
14101
Tap Chamfer
Bottoming
Material
Cobalt
Tap Dimension Type
Metric
Mfr. Part Number
1410100900
Tap Finish
Bright (Uncoated)
Number of Flutes
0
Tap Material
Cobalt
Number of Pieces
1
Tap Size
M2.5
Overall Length
46 mm
Tap Style
Thread Forming
Package Quantity
1
Tap Thread Size
M2.5x0.45
Pitch
0.45 mm
Tap Thread Type
Metric Coarse
Pitch Diameter Limits
D5
Thread Direction
Right Hand
Primary Material Application
Aluminum, Brass, Bronze, Copper, Steel
Thread Length
13 mm
Series
14101
Thread Type
Metric Coarse
Shank Diameter
3.58 mm
General
55% Thread Drill Size
2.33 mm
Secondary Material Application
Hardened Steel, Stainless Steel, Steel
65% Thread Drill Size
2.30 mm
Secondary Material Application ISO Code
H, M, P
75% Thread Drill Size
2.27 mm
Standards
ANSI
Class of Fit
6H
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Thread Limit / Class of Fit
D5 / 6H
Features
Form Taps Avoid the Breakage Due to Chip Packing and Bird Nesting that can Result From Cut Taps
Thread Pitch
0.45mm
Primary Material Application ISO Code
N, P

Product Description

These taps come in standard sizes expressed in millimeters. The bright finish on these taps provides a smooth, polished surface.

Item Barcode

9375482
Thread Forming Tap,M2.5x0.45,
