Home All Products Electrical Plugs & Connectors Pin And Sleeve Inlets SKU: 926355-3
Share
Print
HUBBELL WIRING DEVICE-KELLEMS

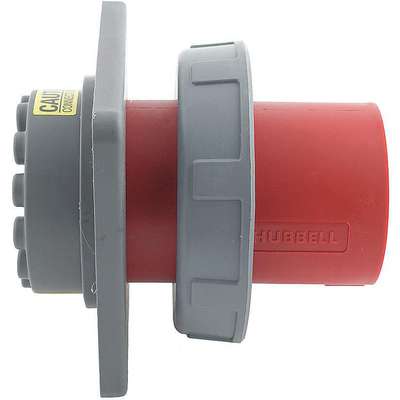

Hubbell Wiring Device-Kellems 60 Amp, 3-Phase Zytel 101 Nylon Watertight Pin and Sleeve Inlet, Red

Hover over image to magnify
Iec Pin And Sleeve Inlet,60A,
PI_Asset_1982877
PI_Asset_1987356
PI_Asset_1990388
Iec Pin And Sleeve Inlet,60A,
PI_Asset_1982877
PI_Asset_1987356
PI_Asset_1990388
Double tap image to magnify
Iec Pin And Sleeve Inlet,60A,
1VCN1_2
1VCN8_1
1VCN8_2
Iec Pin And Sleeve Inlet,60A,
1VCN1_2
1VCN8_1
1VCN8_2

#926355-3Pkg Qty: 1

$664.01 pkg | $664.01 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Amperage
60 A
Maximum Wire Size
2 AWG
Amps
60 A
Mfr. Part Number
HBL460B7W
Body Material
Zytel 101 Nylon
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
8 AWG
Color Family
Red
Number of Poles
3
Compatible With
HBL Heavy Duty
Number of Wires
4
Current Rating
60 A
Package Quantity
1
Face Diameter
2.97 in.
Phase
Three
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin
Pin & Sleeve Standards
IEC 60309
Grounding
Grounded
Shipping Weight
1.84 lb.
Grounding Style
IEC
Shrouded
Yes
Horsepower
20 hp
Standards
CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2
Housing Color
Red
Switch Rated
Yes
Housing Material
Polybutylene Terephthalate
Type
Inlet
IP Rating
IP67
UL 94 Flammability Rating
V-0
Item
Watertight Pin and Sleeve Inlet
Voltage
480VAC
Material of Construction
Nonmetallic, Zytel 101 Nylon, Watertight And Abuse Resistant
Voltage Rating
480V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
60
HP
10 hp
Features
Abuse Resistant
Phase - Electrical
3
Flange Type
Flanged
Voltage - Plugs and Receptacles
480V AC

Product Description

IEC Nonmetallic Watertight Pin and Sleeve Devices

  • Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
