HUBBELL WIRING DEVICE-KELLEMS

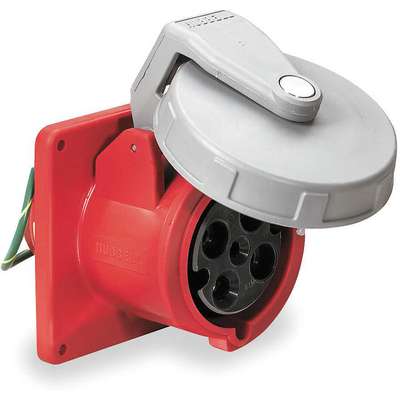

Hubbell Wiring Device-Kellems 60 Amp, 3-Phase Zytel 101 Nylon Watertight Pin and Sleeve Receptacle, Red
Hover over image to magnify
#924220-4 | Pkg Qty: 1
$634.60 pkg | $634.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
60 A
Mfr. Part Number
HBL460R7W
Amps
60 A
Minimum Operating Temperature
-40 °C
Body Material
Zytel 101 Nylon
Minimum Wire Size
8 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Rating
4X
Cap Type
Spring-Loaded Cap
Number of Gangs
1
Color Family
Red
Number of Poles
4
Connection Orientation
Straight
Number of Wires
5
Current Rating
60 A
Package Quantity
1
Face Diameter
4.15 in.
Phase
Three
Features
Color Coded
Pin & Sleeve Standards
UL 1682
Grounding
Grounded
Power Indicating Light
No
Grounding Style
IEC
Reverse Service
No
Horsepower
3 hp
Shipping Weight
2.55 lb.
Housing Color
Blue
Shrouded
Yes
Housing Material
Thermoplastic
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Housing Material Type
Non-Metallic
Switch Rated
No
IP Rating
IP67
Type
Female Receptacle
Item
Watertight Pin and Sleeve Receptacle
UL 94 Flammability Rating
HB
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage
480VAC
Maximum Operating Temperature
75 °C
Voltage Rating
480V AC
Maximum Wire Size
2 AWG
Wire Connection Type
Screw Terminals
General
Flange Type
Flanged
Mounting Box Hub Type
Receptacle Only
Product Description
IEC Nonmetallic Watertight Pin and Sleeve Devices
- Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
