OMRON

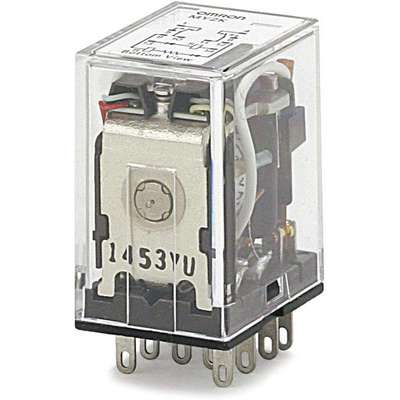

Omron 120VAC Coil Volts, Latching Relay, 3A @ 240VAC/3A @ 24VDC Contact Rating, Square

Hover over image to magnify

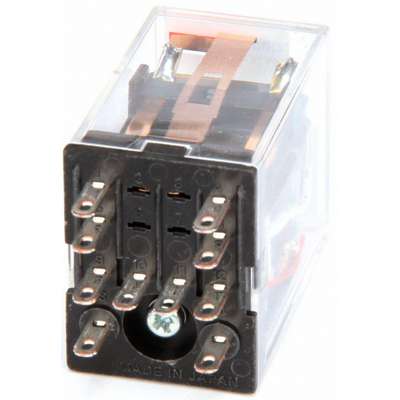

Latching Relay,10 Pins,Square,
PI_Asset_1370428
Latching Relay,10 Pins,Square,
PI_Asset_1370428
Omron 120VAC Coil Volts, Latching Relay, 3A @ 240VAC/3A @ 24VDC Contact Rating, Square Video
Double tap image to magnify
Latching Relay,10 Pins,Square,
1YCU5_SS01_R01_C23
Latching Relay,10 Pins,Square,
1YCU5_SS01_R01_C23
qejmPGe6wk4

#926271-7Pkg Qty: 1

$60.15 pkg | $60.15 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 18.
|

Technical Specifications

Key Specifications
AC Contact Rating
3 A @ 240 V
Mounting
Plug In
Base Type
Square
Number of Pins
10
Body Depth
1.1 in.
Number of Poles
2
Body Height
1.42 in.
Overall Height
1.67 in.
Body Width
0.85 in.
Package Quantity
1
Brand
OMRON
Pins
10
Coil VA Rating
0.6 to 0.9
Plug-In Relay Style
Latching
Coil Volts
120 VAC
Push To Test
Manual
Contact Form
DPDT
Relay Power Consumption
0.9 VA
Contact Material
Silver Nickel
Resistive Contact Amp Rating
3
Contact Rating
3 A @ 220 VAC/24 VDC
Response Time
15 msec
DC Contact Rating
3 A @ 24 V
Shipping Weight
.07 lb.
Hz
50/60
Socket
Mfr. No. PYF14AE
Inductive Contact Amp Rating
0.8
Socket Code
G
Input Power Consumption
0.9 VA
Status Indicator
No
Item
Latching Relay
Type
Plug In, Dual Coil Latching
Mfr. Part Number
MY2K-US-AC120
General
AC Contact Rating - Relay
3A @ 240V
DC Contact Rating - Relay
3A @ 24V
Body Depth - Relay
1.1 in
HP @ 240V
1/6 hp
Body Height - Relay
1.42 in
Overall Height - Relay
1.67 in
Body Width - Relay
0.85 in
Standards
UL508

Product Description

Latching Relay, Coil Volts 120V AC, AC Contact Rating - Relay 3A @ 240V, DC Contact Rating - Relay 3A @ 24V, Base Type - Plug In Relay Square, Number of Pins - Relay 10, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay G, Power Consumption - Relay 0.9 VA, Contact Material Silver Nickel, Status Indicator No, Push To Test Manual
