ERICO

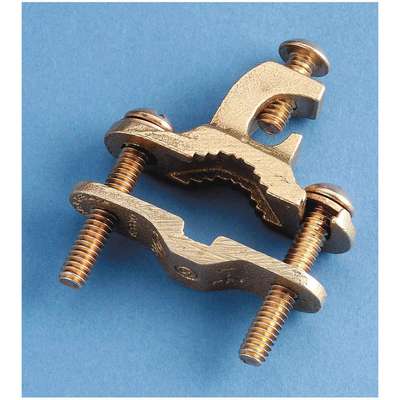

Erico Grounding Connector: 8 AWG SOL to 2 AWG STR Grounding Wire Size, Bronze, 1" For Max Pipe Size

Hover over image to magnify
Ground Clamp,Parallel Burial,
PI_Asset_1756076
PI_Asset_1769413
PI_Asset_1770749
PI_Asset_1772816
PI_Asset_1774265
Ground Clamp,Parallel Burial,
PI_Asset_1756076
PI_Asset_1769413
PI_Asset_1770749
PI_Asset_1772816
PI_Asset_1774265

#915751-8 | Pkg Qty: 1

$14.72 pkg | $14.72 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
ERICO
Mfr. Part Number
EK16
Conductor Size
8 Solid to 2 Stranded
Number of Wires
1
Description/Special Features
Parallel Burial
Package Quantity
1
Grounding Connector Material
Bronze Alloy
Rod Diameter
0.5 in. to 1 in.
Grounding Wires Connected To
#4 to #8 Rebar, 1/2 in. to 1 in. Rod
Shipping Weight
.23 lb.
Item
Grounding Connector
Type
Parallel Burial
Material
Bronze
Wire Size
8 AWG SOL to 2 AWG STR
Material of Construction
Bronze Alloy
General
For Maximum Ground Conductor Wire Size
2 AWG SOL
Grounding Wire Size
8 AWG SOL to 2 AWG STR
For Maximum Pipe Size
1 in
Number of Wires - Grounding
1
For Minimum Ground Conductor Wire Size
10 AWG SOL
Special Features
For
For Minimum Pipe Size
1/2 in
Standards
UL
For Rod Dia.
1/2 in to 1 in
Type - Grounding Connector
Mechanical
For Use With
Pipe, Rebar, Rods

Product Description

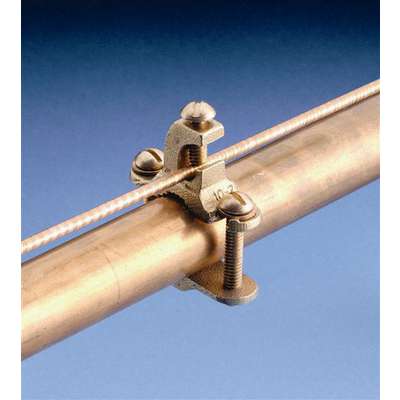

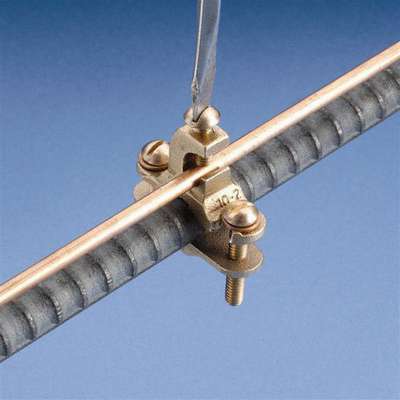

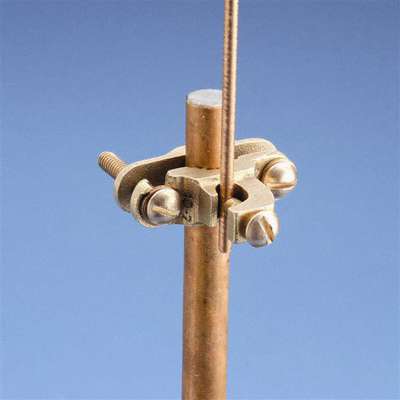

The ERITECH® ground clamp combines four clamps into one. Unique bronze alloy clamp with bronze screws consolidates separate rebar clamps, ground rod clamps, water pipe clamps, and direct burial water pipe clamps into one product. "Lay-in" feature helps cut installation time. Ideal for swimming pool grounding, light poles, and direct burial applications in earth and concrete.
