SQUARE D

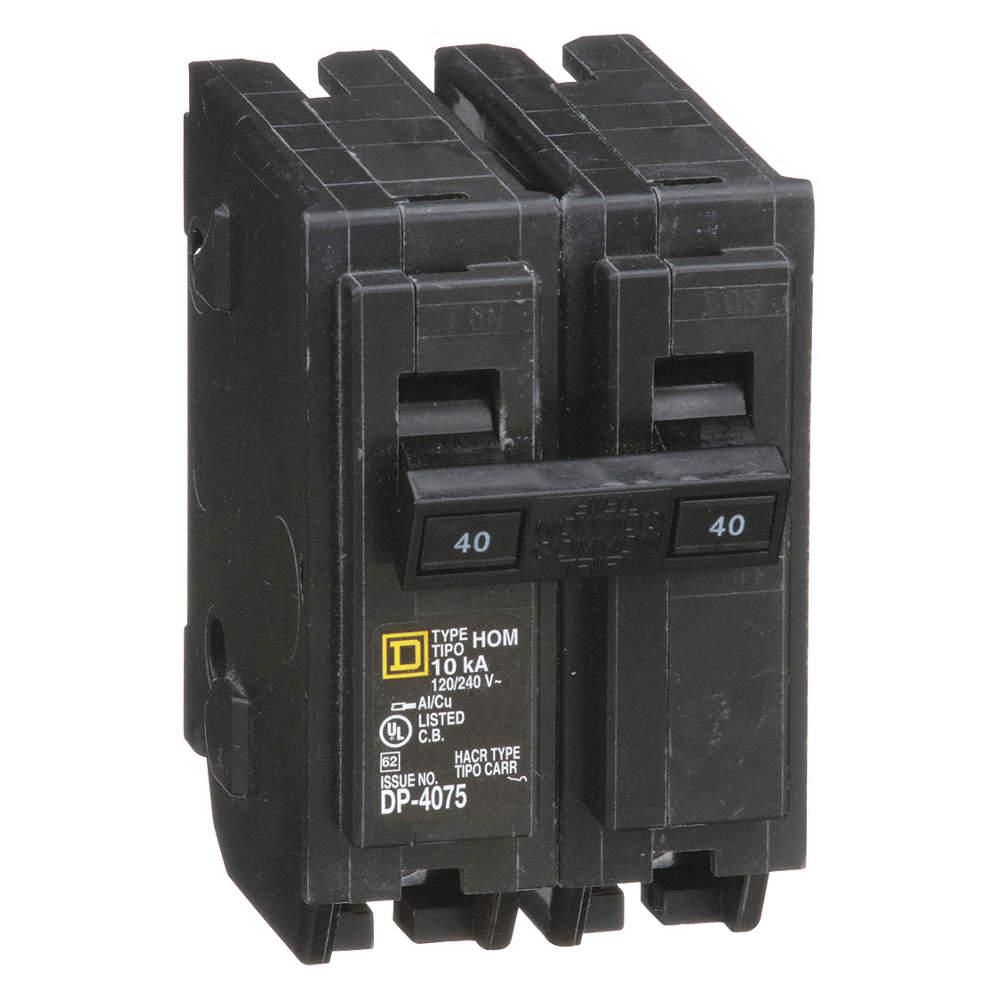

Square D Miniature Circuit Breaker: 40 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, 2 Poles

Hover over image to magnify
Circuit Breaker,40A,Plug In,

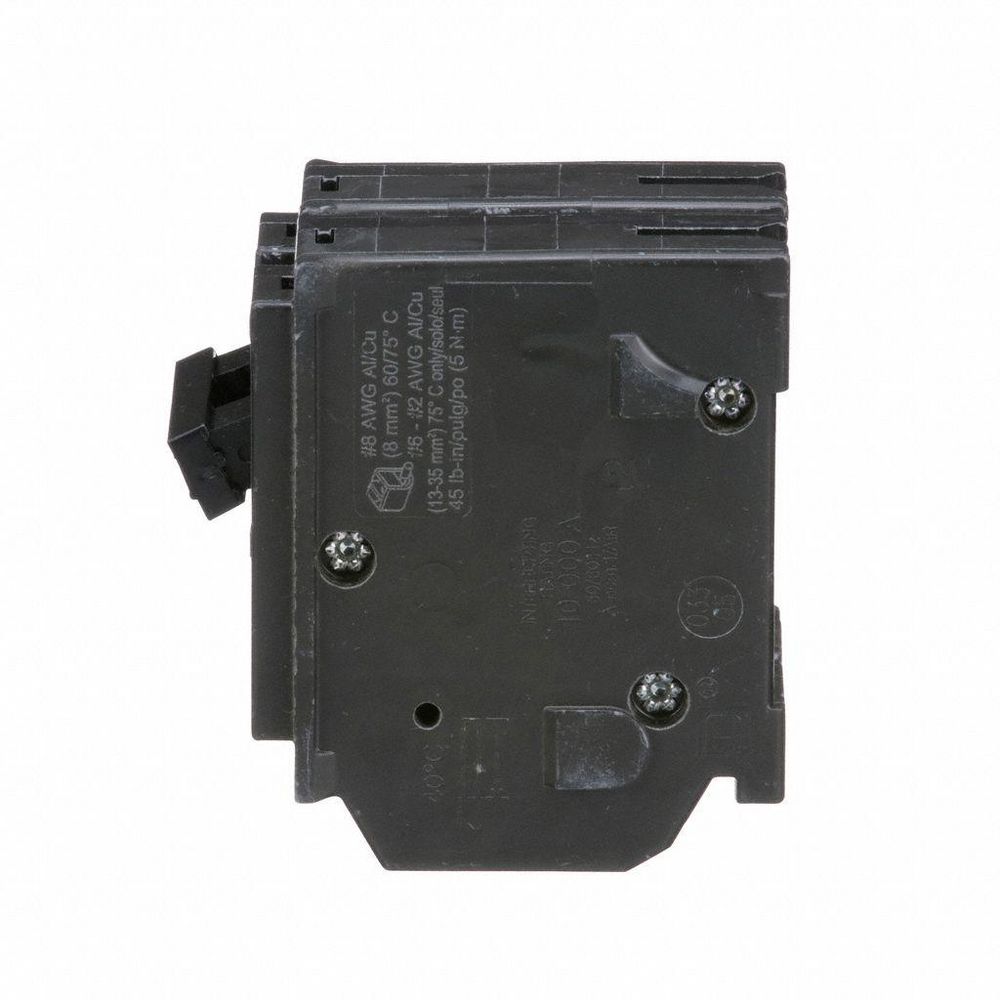

PI_Asset_3731705

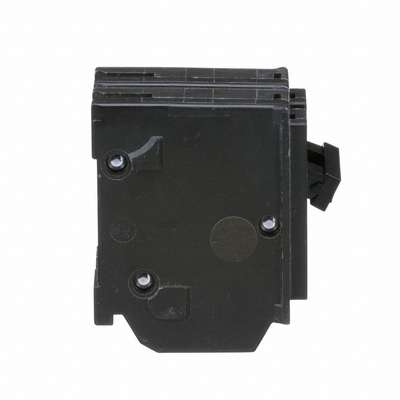

PI_Asset_3731706
Circuit Breaker,40A,Plug In,
PI_Asset_3731705
PI_Asset_3731706
Double tap image to magnify
Circuit Breaker,40A,Plug In,
1D356_2
1D356_3
Circuit Breaker,40A,Plug In,
1D356_2
1D356_3

#939699-4Pkg Qty: 1

$37.03 pkg | $37.03 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 02.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
10kA at 120/240VAC
Air @ 120 VAC
10kA
Maximum Wire Size
2 AWG
Amperage
40 A
Mfr. Part Number
HOM240
Amps
40 A
Minimum Wire Size
8 AWG
Brand
SQUARE D
Number of Poles
2
Circuit Breaker Type
Standard
Package Quantity
1
DC Voltage Rating
Not Rated
Panelboard Mounting
Plug-In
Depth
2.98 in.
Phase
Single
For Use With
Homeline Load Center
Phase Connection
Any
Frame Size
100A/HOM
Series
HOM
High Amp Trip Setting
54
Shipping Weight
.7 lb.
Instantaneous Trip
Fixed
Terminal Connection
Lug
Item
Miniature Circuit Breaker
Voltage
120 - 240VAC
Length
3.13 in.
Width
2 in.
General
AIR @ 120VAC
10kA
Compatible Panelboard/Load Center Series
HOM
Circuit Breaker Actuator
Paddle
Max. Operating Temp.
104°F
Circuit Breaker Mounting Style
Plug In
Min. Operating Temp.
104°F

Product Description

These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.

Item Barcode

9396994
Circuit Breaker,40A,Plug In,
