DAYTON

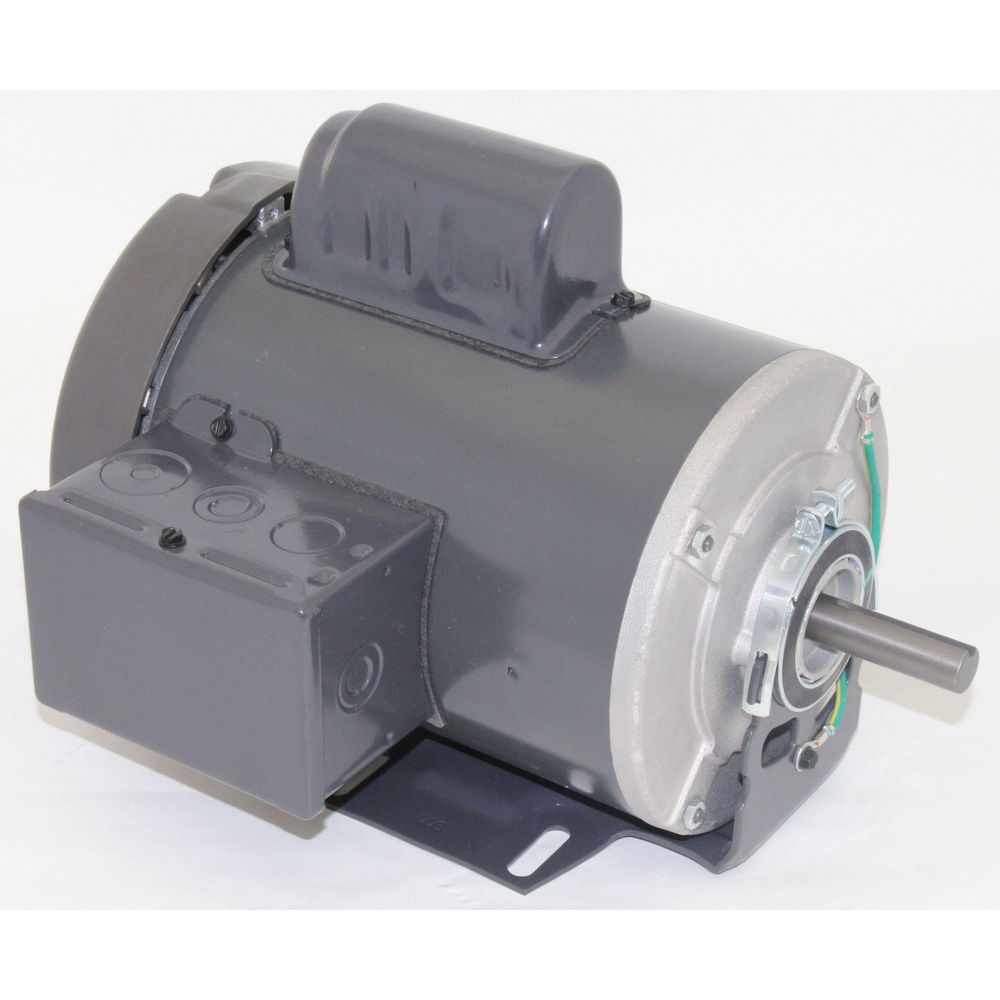

Dayton 1 HP General Purpose Motor,Capacitor-Start,1725 Nameplate RPM,Voltage 115/230,Frame 56

Hover over image to magnify
Mtr,1HP,1725RPM, 115/230V
PI_Asset_1766173
PI_Asset_1770209
Mtr,1HP,1725RPM, 115/230V
PI_Asset_1766173
PI_Asset_1770209

#926168-4 | Pkg Qty: 1

$482.05 pkg | $482.05 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
DAYTON
Mounting
Cradle Base
Duty
Continuous
NEMA/IEC Frame
56
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
12-13/16 in.
Frame
56
Package Quantity
1
Full Load Amps
13.1/6.6
Phase
Single
Hz
60
Rotation
CW/CCW
Insulation Class
B
Service Factor
1
Item
General Purpose Motor
Shaft Length
1-7/8 in.
Length Less Shaft
10-7/8 in.
Shaft Type
Keyed
Mfr. Part Number
6K810
Shipping Weight
38.67 lb.
Mfr. Warranty Length
1 yr.
Thermal Protection
Auto
Motor Design
Capacitor-Start
Voltage
115/230 VAC
General
HP
1
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 °C
NEMA Frame
56
Motor Application
General Application
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
72.3 %
Motor Efficiency Group
Standard Efficient
RPM Group
1701-1800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Shaft Dia.
5/8 in
Motor Mounting Type
Cradle Base
Standards
CSA (258501), UL (E37403)
Motor Service Factor
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Shaft Design
Keyed

Product Description

NEMA 56 frame capacitor-start general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56Z or 56HC. The letter “Z” indicates that the frame has a nonstandard shaft, “H” indicates that the frame has a set of mounting holes at 3" and 5", and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
