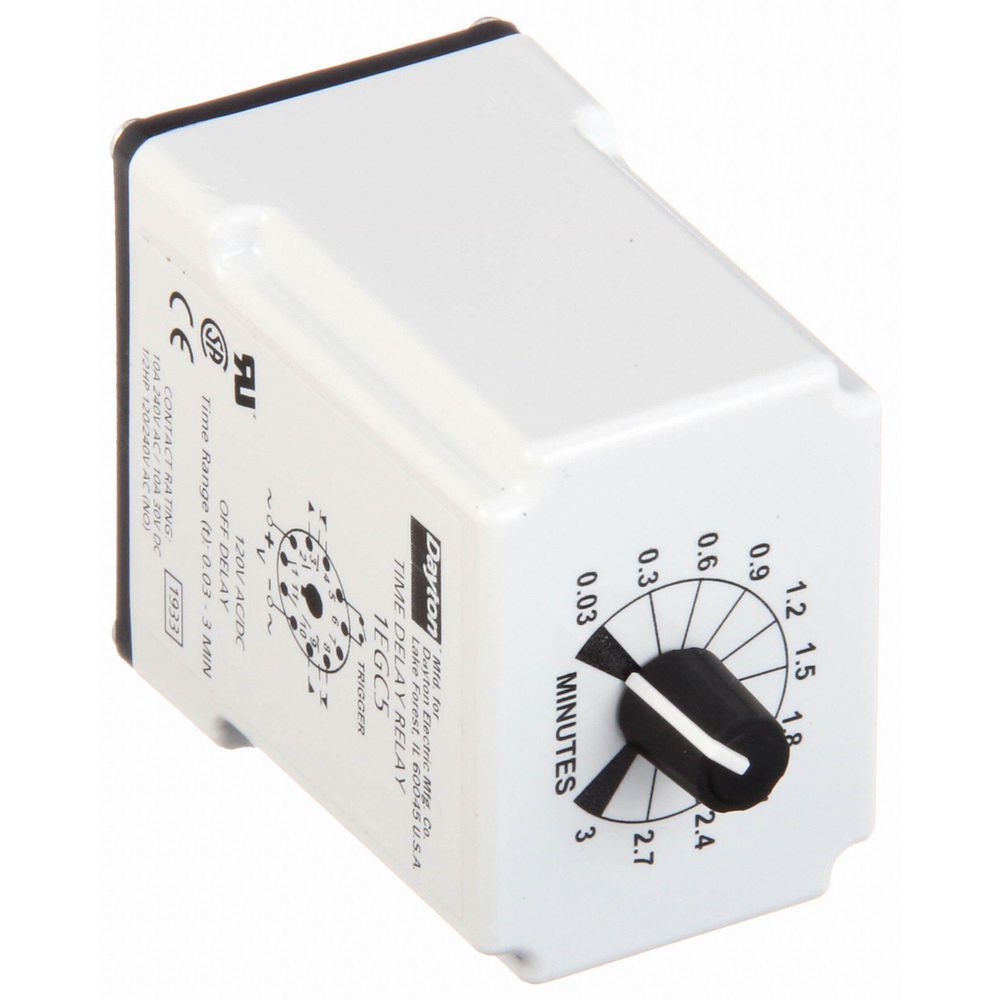

Dayton Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact

Hover over image to magnify
Time Delay Relay,120VAC/Dc,10A,
PI_Asset_1353462
Time Delay Relay,120VAC/Dc,10A,
PI_Asset_1353462
Dayton Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact Video
Double tap image to magnify
Time Delay Relay,120VAC/Dc,10A,
1EGC5_1
Time Delay Relay,120VAC/Dc,10A,
1EGC5_1
qejmPGe6wk4

#918555-9Pkg Qty: 1

$96.33 pkg | $96.33 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 240 V
Maximum Time Setting
3 min.
Adjustment Method
Potentiometer
Mfr. Part Number
1EGC5
Base Type
Octal
Minimum Time Setting
1.80 sec.
Body Depth
1.7 in.
Mounting
Plug In
Body Height
2.9 in.
Number of Contacts
2
Body Width
2.4 in.
Number of Functions
1
Brand
DAYTON
Number of Pins
11
Coil Rating
2VA
Number of Poles
2
Coil VA Rating
2
Operating Functions
2
Coil Volts
120 VAC/DC
Overall Height
3.1 in.
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Nickel
Pins
11
DC Contact Rating
10 A @ 30 V
Relay Power Consumption
2.5 VA, 2.0 W
Electrical Connection
Socket
Resistive Contact Amp Rating
10A
Function
Off Delay
Shipping Weight
.3 lb.
Hz
50/60
Socket
6X156, 1EGP2, 1EGP4
Input Power Consumption
2.5 VA, 2.0 W
Socket Code
B
Input or Control Voltage
120 VAC/DC
Status Indicator
None
Item
Single Function Time Delay Relay
Type
Plug-In
General
AC Contact Rating - Relay
10A @ 240V
HP @ 240V
1/2
Adjustment Method - Timer
Potentiometer
Hz - Electrical
50 Hz, 60 Hz
Base Type - Plug In Relay
Octal
Max. Time Setting - Timer
3 min
Body Depth - Relay
1.7 in
Min. Time Setting - Timer
1.8 sec
Body Height - Relay
2.9 in
Mounting - Relay
Plug In
Body Width - Relay
2.4 in
Number of Pins - Relay
11
Contact Form - Relay
DPDT
Overall Height - Relay
3.1 in
DC Contact Rating - Relay
10A @ 30V
Power Consumption - Relay
2 W, 2.5 VA
Function - Timing Relay
Off Delay
Standards
UR, CSA, CE
HP @ 120V
1/3
Timing Relay Functionality
Off Delay

Product Description

Dayton’s Time Delay Relay features an Off Delay function with an adjustable timing range of 1.8-180 seconds, 120V AC/DC input voltage and 10A DPDT output contacts, utilizing an 11 pin octal socket.
