PANDUIT

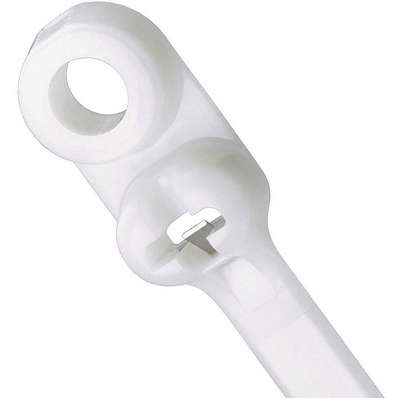

Panduit 15.50"L x 0.27"W Mountable Indoor Cable Tie, Natural; Tensile Strength: 120 lb.

Hover over image to magnify
Cable Tie,Mountable,15.5 In.,
Cable Tie,Mountable,15.5 In.,

#926145-3 | Pkg Qty: 50

$67.00 pkg | $1.34 ea
Cable Tie Length : 15.5 in.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Actual Length
15-1/2 in.
Metal Barb
Yes
Basic Material
Nylon
Mfr. Part Number
BC4LH-S25-L
Brand
PANDUIT
Mounting Method
Screw Mount
Bundle Diameter
4 in.
Mounting Style
Mounting Head
Cable Tie Basic Material
Nylon
Nominal Length
15-1/2 in.
Cable Tie Design
Mountable
Number of Straps
1
Cable Tie Length
15-1/2 in.
Package Quantity
50
Cable Tie Mounting Hole Size
1/4 in.
Performance
Heavy Duty
Cable Tie Nominal Length
15-1/2 in.
Plenum Rated
Yes
Color Family
Natural
Shipping Weight
.6 lb.
Design
Mountable
Tab Style
Stainless Steel Barb
Flame Retardant
No
Temperature Range
-76 to 185 deg. F
Indoor/Outdoor
Indoor
Tensile Strength
120 lb.
Item
Cable Tie
Thickness
0.06 in.
Length
15-1/2 in.
Tool Code
F
Locking Style
Stainless Steel Barb
Type
Light Heavy, Clamp
Material
Nylon 6/6
UL Type
2
Material of Construction
Nylon
Width
0.27 in.
General
Approximate Length - Cable Tie
15 1/2 in
Mounting Hole Size
1/4
Cable Tie Duty
Heavy Duty
Mounting Hole Size - Cable Tie
1/4 in
Cable Tie Properties
Halogen-Free, Low-Smoke, Plenum Rated
Nominal Max. Bundle Dia.
4 in
Cable Tie Style
Mountable
Recommended Tool
62NP16, 62PX61, Mfr. No. GS4H, Mfr. No. GTH, Mfr. No. PTH, Mfr. No. STH2
Indoor / Outdoor
Indoor
Screw Mount Hole Size
0.25 in
Length - Cable Tie
15.5 in
Standards
UL 62275 (Type 2, 21), CSA, CE, RoHS, Plenum AH-2
Max. Bundle Dia.
4 in
Width - Cable Tie
0.27 in

Product Description

Each of these nylon ties features an adjustable, stainless-steel locking barb to secure wires and cables. The curved tip also helps to provide fast initial threading.
