DAYTON

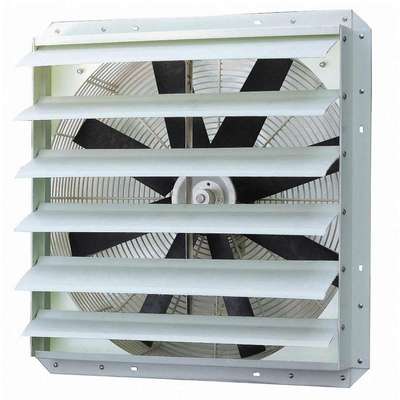

Dayton 27-2/32" x 27-2/32" 115VACV Corrosion Resistant Shutter Mount 1-Phase Exhaust Fan
Hover over image to magnify
#914285-4 | Pkg Qty: 1
$1,137.61 pkg | $1,137.61 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Listed for US and Canada
Motor HP
1/2
Bearing Type
Sealed Ball
Motor Type
Permanent Split Capacitor
Blade Diameter
24 in.
Number of Blades
8
Blade Material
Fiberglass Reinforced Polypropylene
Package Quantity
1
Brand
DAYTON
Phase
1
Height
27-2/32 in.
Shipping Weight
47 lb.
Item
Exhaust Fan
Speed Control
No
Mfr. Part Number
1BLJ7
Voltage
115 VAC
Motor Enclosure
Totally Enclosed Air-Over
Width
27-2/32 in.
General
Exhaust Airflow @ 0.000 in SP
5,448 cfm
Maximum Exhaust Airflow @ 0.000 in SP
4001 to 6000 cfm
Exhaust Airflow @ 0.125 in SP
3,920 cfm
Maximum Noise Level
7.2 sones
Exhaust Airflow @ 0.250 in SP
3,592 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Exhaust Airflow @ 0.375 in SP
2,680 cfm
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Fan Style
Shutter-Mounted
Motor Horsepower
1/2 hp
Fan Voltage
115V AC
Motor Speed
1,075 RPM
For Cut-Out Width
25 in
Nameplate Voltage
115V AC
Guard Finish
Coated
Noise Level @ 0.000 in SP @ 5 ft
7.2 sones
Includes Motor
Yes
Nominal Voltage
115V AC
Maximum Ambient Operating Temperature
104 Degrees F
Ventilation Type
Exhaust
Product Description
Provides dependable use in many corrosive atmospheres. Propellers have OSHA-compliant epoxy-coated wire guards. Vertical-mount only. Not designed for laboratory hood exhaust or explosive atmospheres. Thermally protected motor.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Exhaust Fan,24 In,115 V,4876
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1BLJ7 | Exhaust Fan, 24 In,115 V, |
 | UNSPSC CODES | 40101502 | |
 | VMRS (ATA) CODES | 053-006-009 | Exhaust Fan, 24 In,115 V, |
