SPEEDAIRE

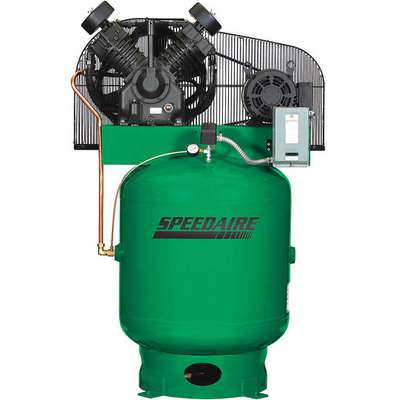

3 Phase - Electrical Vertical Tank Mounted 10.0HP - Air Compressor Stationary Air Compressor, 90 gal
Hover over image to magnify
#924619-3 | Pkg Qty: 1
$6,793.63 pkg | $6,793.63 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Outlet
3/4 in.
Maximum Pressure
175 psi
Air Consumption
scfm
Mfr. Part Number
35WC67
Amperage
27-24.4/12.2 A
Number of Stages
2
Brand
SPEEDAIRE
Overall Height
69 in.
Compressor Package Type
Base Model
Overall Length
52 in.
Compressor Type
Tank Mounted
Overall Width
24 in.
Control
Pressure Switch
Package Quantity
1
Cylinder Material
Cast Iron
Phase
3
Enclosure
Open Drip Proof
Pump Location
Tank Mounted
Finish
Powder Coated
Pump RPM
700
Free Air CFM @ Max Pressure
34.1
Shipping Weight
986 lb.
Horsepower
10
Tank Size
90 gal.
Hz
60
Tank Style
Vertical
Input Voltage
208 to 240 VAC, 480 VAC
Tank Type
Vertical
Item
Electric Air Compressor
Voltage
208-230/460
Lubrication Type
Splash Lubricated
General
ASME Tank
Yes
Number of Stages - Air Compressor
2
Air Tank Size
90 gal
Off Pressure Switch Setting
175 psi
Air Tank Style
Vertical
On Pressure Switch Setting
135 psi
Compressor Voltage
208-230V AC, 460V AC
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
34.1
Output Power
10 hp
Free Air Flow Rate @ Max Pressure
36 cfm
Phase - Electrical
3
Free Air Flow Rate @ Maximum Pressure
36 cfm
Pump Location - Air Compressor
Tank Mounted
HP
10
Pump Oil Capacity
4 qt
HP - Air Compressor
10.0 hp
Sound Level Range
Standard (70 dBA or more)
Includes
Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-voltage Motor
Standards
ASME, CSA
Input Voltage - Air Compressor
208 to 230V AC, 460V AC
Style - Air Compressor
Simplex
Life Expectancy
15,000 hr
Tank Size - Air Compressor
90 gal
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Vertical
Max Operating Pressure
175 psi
dBA @ 3 Feet
89
Max. Pressure - Air Compressor
175 psi
Product Description
The SPEEDAIRE® 2-stage electric air compressor is an oil-lubricated reciprocating compressor. Features include: air filter, compressor pump, discharge tube, tank pressure gauge, check valve, tank drain, pressure switch, magnetic starter, after cooler, and belt guard.
