SPEEDAIRE

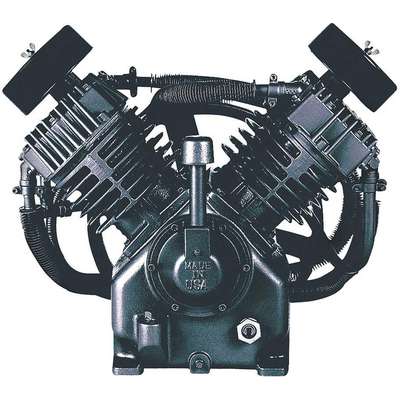

Air Compressor Pump: Splash Lubricated, 2 Stage, 10 hp, 34.2 cfm @ 175 psi, 5Z405

Hover over image to magnify
Air Compressor Pump,2 Stage
Air Compressor Pump,2 Stage

#913510-2 | Pkg Qty: 1

$3,124.85 pkg | $3,124.85 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Overall Depth
18-1/2 in.
Brand
SPEEDAIRE
Overall Height
21-1/2 in.
Construction
Cast Iron
Overall Width
25 in.
Finish
Black Powder
Package Quantity
1
Flywheel Diameter
16-1/2 in.
Pump RPM
700
Free Air CFM @ Max Pressure
34.2
Rotation
CCW
Horsepower
10 HP
Sheave Size @ 1725 RPM
6-3/4 in.
Item
Air Compressor Pump
Shipping Weight
178 lb.
Lubrication Type
Splash
Stroke Length
3 in.
Maximum Pressure
175 psi
Type
Splash Lubricated
Mfr. Part Number
5Z405
Valve
Stainless Steel for Longer Life
Number of Cylinders
4
Valve Material
Stainless Steel
Number of Stages
2
Valve Type
Reed
Oil Capacity
4 qt.
General
Bore Dia.
2 1/2 in, 4 3/4 in
Lubrication Required
Yes
Flywheel Included
Yes
Maximum Output Power
10 hp
Free Air CFM @ Max. Pressure
34.2
Mounting Pattern
9-5/8 in W x 8-1/16 in D
Free Air Flow Rate @ Maximum Pressure
34.2 cfm @ 175 psi
Outlet Connection Type
NPT
HP
10 hp
Pump Speed
700 RPM

Product Description

Speedaire® 2-Stage pump is designed to provide compressed air to power tools and equipment. This pump is intended for mounting on baseplates or on tanks specifically designed for air compressor service. Never use for any other purpose than to compress ambient air. If the intended application requires control of oil and water condensation, additional filters and equipment must be installed as appropriate. Installation of a Speedaire® pump in a system or on a tank not suitable for use with these pumps or any other misuse can result in severe personal injury or property damage and will void the warranty.
