POWER FIRST

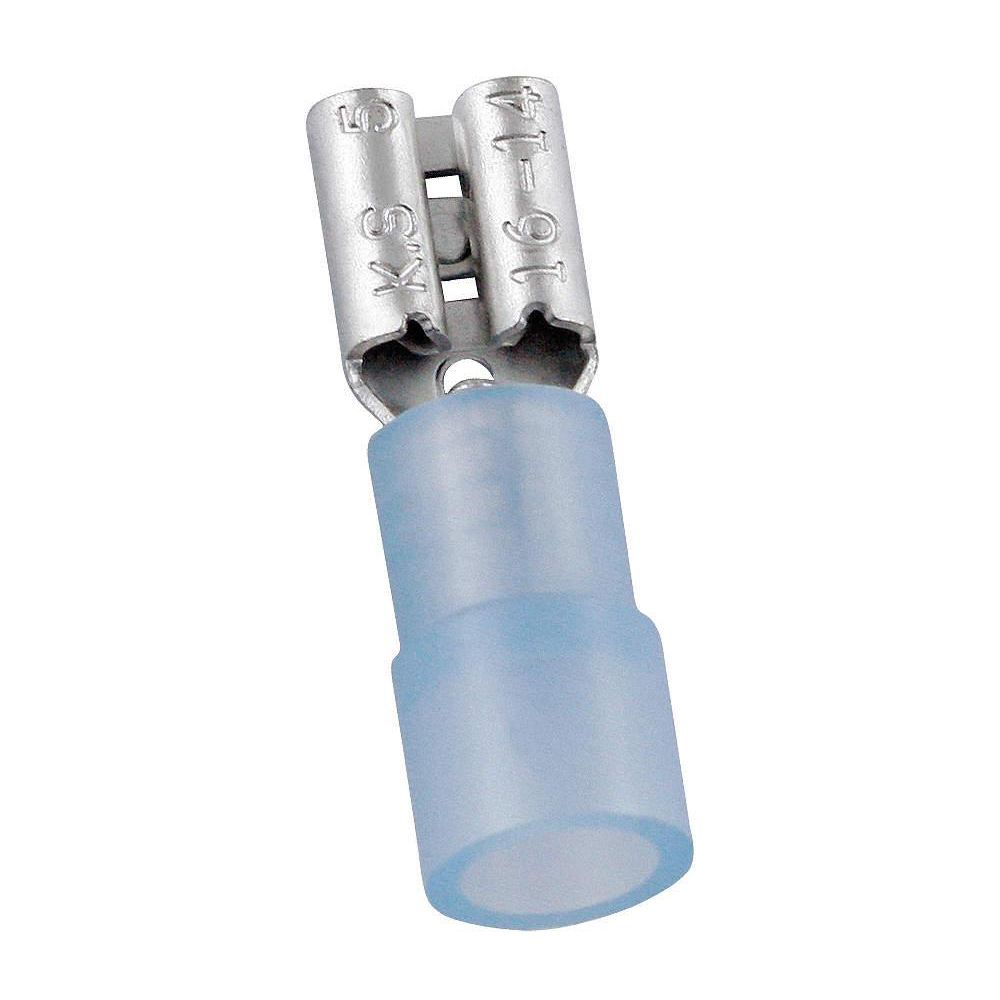

Power First Blue Female Disconnect, Nylon Insulation Type, 16 to 14 AWG Wire Range

Hover over image to magnify
Female Disconnect,Blue,16-
Female Disconnect,Blue,16-
Double tap image to magnify
Female Disconnect,Blue,16-
Female Disconnect,Blue,16-

#924086-8Pkg Qty: 100

$12.14 pkg | $0.12 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Brand
POWER FIRST
Male/Female
Female
Color Code
Blue
Material of Construction
Brass
Color Family
Blue
Maximum Temperature
221 deg. F
Connection Material
Brass
Maximum Voltage
300 V
Connection Type
Crimp
Mfr. Part Number
5UGR2
Insulation
Partial
Overall Length
0.780 in.
Insulation Color
Blue
Package Quantity
100
Insulation Type
Nylon
Seam
Butted
Item
Female Disconnect
Shipping Weight
.14 lb.
Length
0.787 in.
Wire Range
16 to 14 AWG
General
Barrel Inside Diameter
0.091 in.
RoHS Compliant
Yes
Barrel Outside Diameter
0.177 in
Seam Style
Butted
Barrel Size
Standard
Standards
UL/ROHS/CSA
Barrel Style
Crimp
Strip Length
1/4 in
Connection Orientation
Straight
Tab Thickness
0.02 in
Contact Finish
Tin
Tab Width
0.187 in
Current
15 A
Terminal Types
Female Socket
Disconnect Style
Tab
Termination Style
Crimp
For Wire Size
14 AWG, 16 AWG
UL 94 Flammability Rating
V-2
Insulation Coverage
Partial Coverage
Wire Size Range
16 AWG – 14 AWG
Max. Temp.
221°F

Product Description

Nylon insulation provides a higher temperature rating. This disconnect terminal can connect to terminal blocks and boards reliably and disconnect easily, all without utilizing tools to do so. The female disconnect features a razed seam serrated barrel for maximum tensile strength and durable dependability.
