DORMEYER

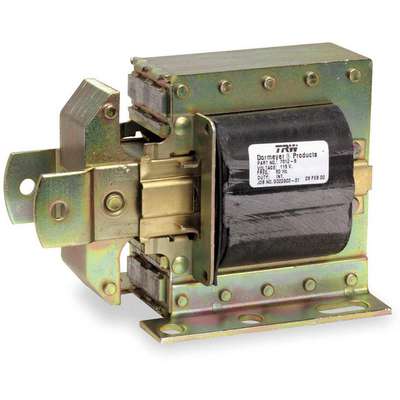

Dormeyer Solenoid, 115 VAC Coil Volts, Stroke Range: 1/4" to 1-1/4", Duty Cycle: Intermittent
Hover over image to magnify
#923192-5 | Pkg Qty: 1
$60.98 pkg | $60.98 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DORMEYER
Mounting Holes
2 in.
Coil Volts
115 VAC
Package Quantity
1
Depth
2-15/16 in.
Shipping Weight
2.55 lb.
Duty Cycle
Intermittent
Terminals
1/4 in. Spade
Item
Solenoid
Type
Laundry Equipment
Length
2-63/64 in.
Width
2-3/8 in.
Mfr. Part Number
7612
General
Amps @ Maximum Stroke
1.2
Pull @ 3/8 In. Stroke
99.2 oz.
Coil Resistance
4.8 ohm
Pull @ 5/8 In. Stroke
102.4 oz.
Maximum On Time
3 min.
Pull @ 7/8 In. Stroke
84.8 oz.
Pull @ 1 In. Stroke
64.0 oz.
Pull Force Range
256.0 to 448.0 oz.
Pull @ 1/2 In. Stroke
102.4 oz.
Seated Amps
1.2
Pull @ 1/4 In. Stroke
102.4 oz.
Seated Watts
48
Pull @ 1/8 In. Stroke
128.0 oz.
Solenoid Type
Laundry Equipment
Pull @ 3/4 In. Stroke
96.0 oz.
Stroke Range
1/4 in to 1-1/4 in
Product Description
Laundry Equipment
- Pull-type Rated 120V, 60 Hz Intermittent duty, 3 min. max. On time
- For replacement service on home laundry washers and dryers. Flanged base, except No. 2X868 has channel base. 1/4" spade terminals enable fast installation.
- Solenoids
- RoHS Compliant.
Expertly Selected Product Pairings
Item Barcode
Solenoid,1/4 - 1-1/4 In,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4X317 | Solenoid,1/4 - 1-1/4 in, |
 | UNSPSC CODES | 31251510 | |
 | VMRS (ATA) CODES | 053-007-002 | Solenoid,1/4 - 1-1/4 in, |
