POWER FIRST

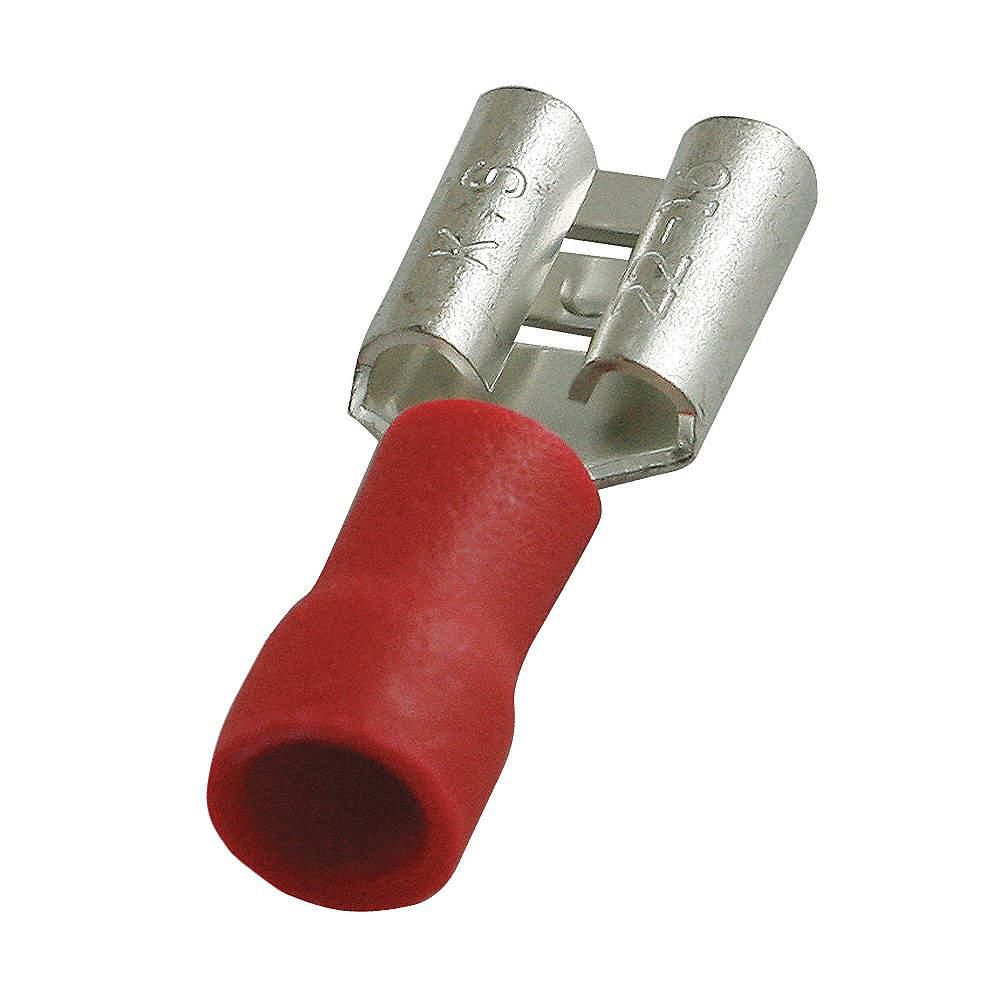

Power First Red Female Disconnect with Copper Sleeve, Vinyl Insulation Type, 22 to 16 AWG Wire Range
Hover over image to magnify
#932561-6 | Pkg Qty: 100
$44.74 pkg | $0.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
POWER FIRST
Mfr. Part Number
24C887
Color Code
Red
Overall Length
0.82 in.
Connection Material
Tin-Plated Brass
Package Quantity
100
Connection Type
Crimp
Seam
Butted
Insulation
Partial
Shipping Weight
.3 lb.
Insulation Color
Red
Tab Size
0.032 in. x 0.250 in.
Insulation Type
Vinyl
Wire Range
22 to 16 AWG
Item
Fe Male Disconnect with Copper Sleeve
General
Barrel Outside Diameter
0.157 in
RoHS Compliant
Yes
Barrel Size
Standard
Seam Style
Butted
Barrel Style
Crimp
Standards
CSA, UL/c E128651
Connection Orientation
Straight
Strip Length
1/4 in
Contact Finish
Tin
Tab Thickness
0.032 in
Current
10 A
Tab Width
0.25 in
Disconnect Style
Tab
Terminal Types
Female Socket
Features
Plus Copper Sleeve
Termination Style
Crimp
For Wire Size
16 AWG, 18 AWG, 20 AWG, 22 AWG
UL 94 Flammability Rating
V-0
Insulation Coverage
Partial Coverage
Wire Size Range
22 AWG – 16 AWG
Max. Temp.
221°F
Product Description
Disconnect terminal can connect to terminal blocks and boards reliably and disconnect easily, all without utilizing tools to do so. The female disconnect features a razed seam serrated barrel for maximum tensile strength and durable dependability. Vinyl insulation is economic, and well-suited for general use.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Female Disconnect,Red,22-16AWG,
