DEWALT ENGINEERED BY POWERS

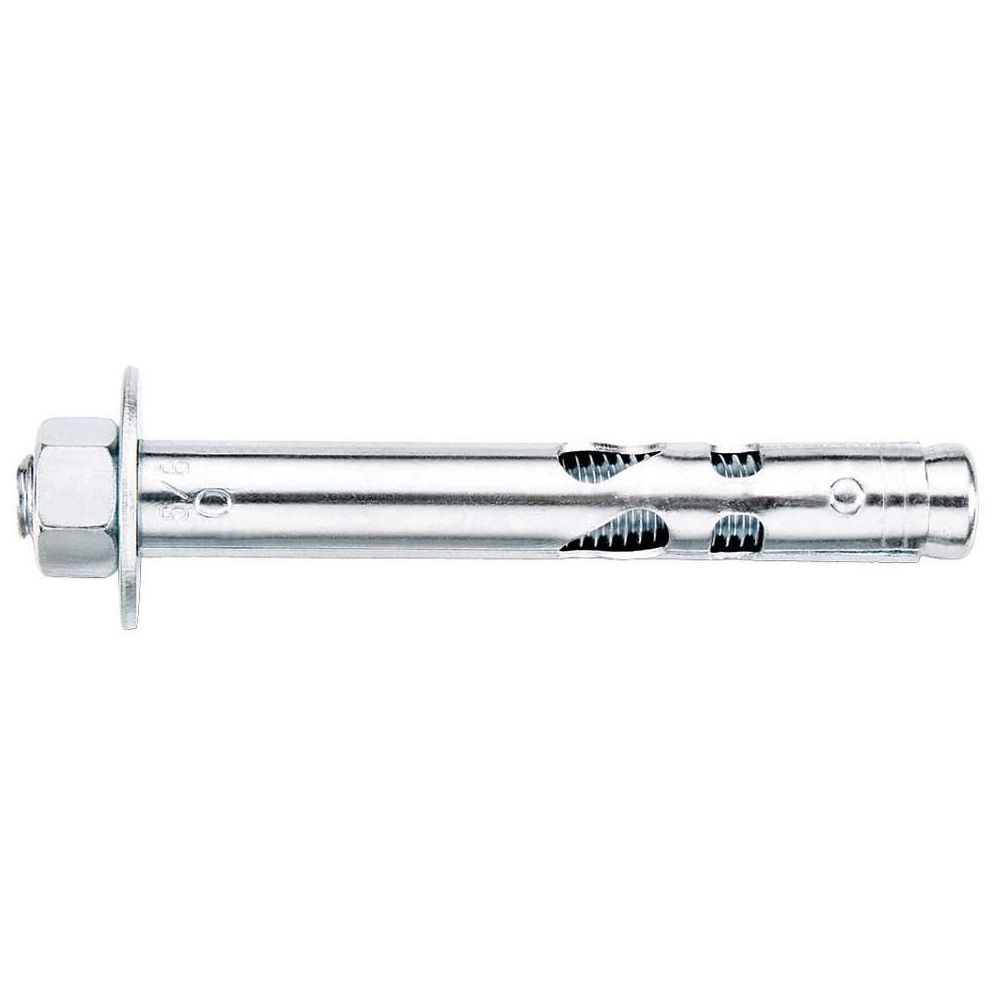

Hex Nut Sleeve Anchor, Steel, 5/8" Dia., 5-3/4" L, 1/2-13 Thread Size, Zinc Plated

Hover over image to magnify
Sleeve Anchor,5/8 In. Dia.,PK10
Sleeve Anchor,5/8 In. Dia.,PK10
Double tap image to magnify
Sleeve Anchor,5/8 In. Dia.,PK10
Sleeve Anchor,5/8 In. Dia.,PK10

#923161-8Pkg Qty: 10

$34.70 pkg | $3.47 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 11.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>Hex Nut Sleeve Anchors feature an expandable sleeve over a threaded bolt, with a nut and washer. Filler sleeves help eliminate galling between sleeves and tapered bolt heads. Use in concrete, hollow or shallow masonry, or grout-filled blocks.</p>

Hex Nut Sleeve Anchors feature an expandable sleeve over a threaded bolt, with a nut and washer. Filler sleeves help eliminate galling between sleeves and tapered bolt heads. Use in concrete, hollow or shallow masonry, or grout-filled blocks.

Pkg Qty 10 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Anchor Diameter
5/8 in.
Material
Carbon Steel
Anchor Length
5-3/4 in.
Material Grade/Class
Not Graded
Brand
DEWALT ENGINEERED BY POWERS
Meets/Exceeds
CSI Divisions: 03151 Concrete Anchoring, 04081 Masonry Anchorage, 5090 Metal Fastenings
Fastener Finish
Zinc Plated
Mfr. Part Number
05045S-PWR
Head Style
Hex Nut
Minimum Embedment
2 in.
ICC Approved for Cracked Concrete
No
Package Quantity
10
ICC Approved for Un-Cracked Concrete
No
Shipping Weight
4.94 lb.
Item
Sleeve Anchor
Thread Size
1/2"-13
General
Anchor Type
Sleeve
Minimum Hole Depth
11/16 in
Compatible Material
Concrete, Masonry
Minimum Installation Depth
1 1/2 in
Drill Bit Size
5/8 in
Minimum Installation Torque
30 ft-lb
Drive Type
External Hex
Nut Width
0.75 in
Features
Preassembled
Overall Length
5 3/4 in
Head Type
Hex
Removable
Removable
Industry Standards
CSI Divisions 03 16 00, CSI Divisions 04 05 19.16, CSI Divisions 05 05 19
Series
Lok-Bolt AS
Manufacturer Location
Globally Sourced
System of Measurement
Inch
Material Type
Steel
Thread Type
Coarse
Maximum Installation Torque
30 ft-lb
Washer Outside Diameter
1.38 in

Product Description

Hex Nut Sleeve Anchors feature an expandable sleeve over a threaded bolt, with a nut and washer. Filler sleeves help eliminate galling between sleeves and tapered bolt heads. Use in concrete, hollow or shallow masonry, or grout-filled blocks.
