RED HEAD

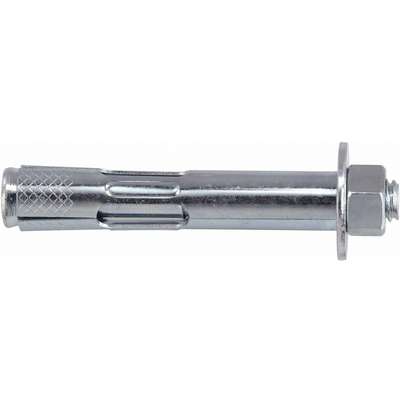

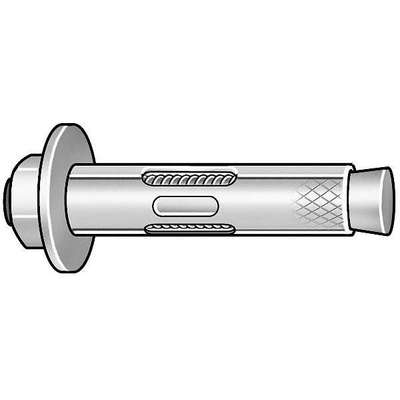

Hex Nut Sleeve Anchor, Steel, 1/2" Dia., 4" L, 3/8-16 Thread Size, Zinc Plated

Hover over image to magnify
Sleeve Anchor,Pk 25
PI_Asset_970723
Sleeve Anchor,Pk 25
PI_Asset_970723

#913895 | Pkg Qty: 25

$44.75 pkg | $1.79 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Anchor Diameter
1/2 in.
Material Grade/Class
18-8
Anchor Length
4 in.
Maximum Work Thickness
2-1/8 in.
Brand
RED HEAD
Meets/Exceeds
A-A-1923A
Expansion Anchor Head Style
Hex Nut
Mfr. Part Number
HN-1240
Fastener Finish
Zinc Plated
Minimum Embedment
1-7/8 in.
Head Style
Hex Nut
Package Quantity
25
ICC Approved for Cracked Concrete
No
Shipping Weight
5 lb.
ICC Approved for Un-Cracked Concrete
Yes
Thread Size
3/8"-16
Item
Sleeve Anchor
Ultimate Tension in 4000 PSI Concrete
4400 lb.
Material
Carbon Steel
General
Ultimate Shear in 4000 PSI Concrete (Lb.)
5,000 lb
Ultimate Tension in 4000 PSI Concrete (Lb.)
4,400 lb

Product Description

Dynabolt® Sleeve Anchors feature an expandable sleeve over threaded bolt, with a nut and washer. They can be installed through the object being fastened. The 6-rib sleeve helps ensure holding power of expansion device. Use in masonry applications such as concrete, hollow or shallow masonry, or grout-filled blocks.
