DAYTON

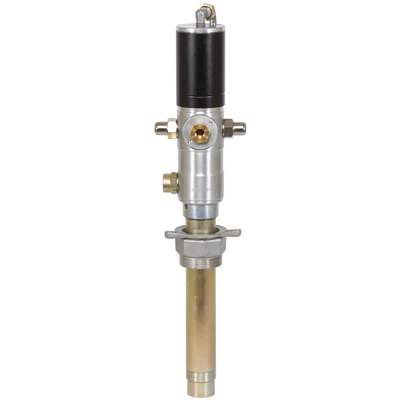

Steel, Brass, Aluminum Air Operated, 3:1 Oil Ratio Stub Pump, 1" Inlet Size

Hover over image to magnify
Stub Pump, Air Operated, 3/4
PI_Asset_1370504
Stub Pump, Air Operated, 3/4
PI_Asset_1370504

#922932-8 | Pkg Qty: 1

$399.00 pkg | $399.00 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adapter Material
Aluminum, Zinc
Maximum GPM for Oil
3.7
Adapter Type
Sliding Bung with 2 in. Drum Thread
Maximum Head
26 ft.
Body Material
Steel, Brass, Aluminum
Maximum Liquid Temperature
122°F
Brand
DAYTON
Maximum Pressure
145
Cylinder Material
Aluminum, Steel
Maximum Temperature (Deg. F)
122°
DEF Compatible
No
Maximum Viscosity
850 cps
Delivers
850 cps
Mfr. Part Number
33NT23
Design
Reciprocating Piston Operated
Mfr. Warranty Length
1 yr.
Discharge Size
3/4
Motor Enclosure
Motor Housing
Discharge Tubing Material
Steel
Motor Type
Air Operated
Fits
Stub Pump for Wall Mount Use or with Any Drum/Tank with a Suction Tube / Hose
Mounts On
2 in. Bung on a Wall Bracket , Tank or Drum
For Use On
Stub Pump for Wall Mount Use or with Any Drum/Tank with a Suction Tube / Hose
Outlet Size
3/4 in.
GPM
3.7
Package Quantity
1
Gasket Material
Nitrile Rubber
Piston
Steel
Height
2-1/2 in.
Ratio
3:1
Housing Material
Steel, Aluminum, Brass
Seal Material
Nitrile, Turcite, Polyurethane
Inlet Size
1 in.
Self-Priming
Yes
Item
Stub Pump
Shipping Weight
9.53 lb.
Length
21-1/2 in.
Type
Air Operated, 3:1 Oil Ratio
Maximum Air Inlet PSI
145
Warranty
1 Year Warranty Against Manufacturing and Workmanship Defects
Maximum Flow (GPM)
3.7
Wetted Materials
Steel, Brass, Aluminum, Nitrile Rubber, Polyurethane, Turcite
General
Air Outlet Size
1 3/8 in
Includes Suction Tube
Yes
Application
Oil Transfer
Max. Air Pressure
150 psi
Compatible Chemicals
Automatic Transmission Fluid, Motor Oil
Max. Flow Rate
3.7 gpm
Discharge Connection Type
FNPT
Max. Head - Pumps
26 ft
For Container Size
5 gal, 15 gal, 30 gal, 55 gal, 275 gal
Max. Oil Flow
3.7 gpm
For Container Type
Bucket, Drum, Pail, Tote
Max. Outlet Pressure
450 psi
For Media Type
Automatic Transmission Fluid, Motor Oil
Min. Air Pressure
30 psi
For Use With
Medium to High Viscosity Oils (Up to SAE 130 Oils) for Dispensing Up to 30 Meters Away
Not Recommended Chemicals
Antifreeze (Coolant), Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Housing Material - Pumps
Aluminum, Brass, Steel
Pump Package Type
Basic Pump without Discharge Hose
Includes
Stub Pump with Bung Adaptor, Check Valve, Nipple for Connecting Air Filter
Special Features
World Class Double Acting Operation Industrial Oil Dispensing Pumps with Guaranteed Performance and Hassle Free Operation. Designed to Work in Tough Conditions & are Ideal for Use in Industry, Workshop, Farm, Construction or as Part of the Mobile Oil System. All Metal Construction, Fully CNC Machined with Hardened Wear Resistant Moving Parts. Supplied with Non Return Valve for Use at the Bottom of the Suction End.
Includes Bung Adapter
Yes

Product Description

Automotive fluid, fuel, and oil pneumatic drum pumps are designed for dispensing and transferring moderate to large volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. Sometimes called an air-operated oil transfer pump or a pneumatic fuel transfer pump, these pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
