DAYTON

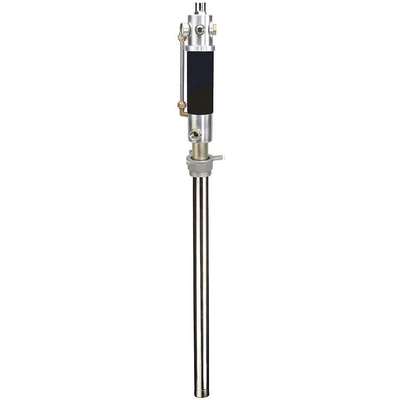

HP Steel, Brass, Aluminum Air Operated, 5:1 Oil Ratio Drum Pump

Hover over image to magnify
Drum Pump, Air Operated, 3/4
Drum Pump, Air Operated, 3/4

#915032-1 | Pkg Qty: 1

$519.38 pkg | $519.38 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adapter Material
Aluminum, Zinc
Maximum Pressure
145
Adapter Type
Sliding Bung with 2 in. Drum Thread
Maximum Temperature (Deg. F)
140°
Agency Compliance
CE
Maximum Viscosity
1750 cps
Body Material
Steel, Brass, Aluminum
Mfr. Part Number
4AYD6
Brand
DAYTON
Mfr. Warranty Length
1 yr.
Cylinder Material
Aluminum, Steel
Motor Enclosure
Motor Housing
DEF Compatible
No
Motor Type
Air Operated
Delivers
1750 cps
Mounts On
55 gal. Drum
Design
Reciprocating Piston Operated
Outlet Size
3/4 in.
Discharge Size
3/4
Package Quantity
1
Fits
55 gal.Drum
Piston
Steel
For Use On
55 gal.Drum
Ratio
5:1
GPM
4.76
Seal Material
Nitrile, Turcite, Polyurethane
Gasket Material
Nitrile Rubber
Self-Priming
Yes
Height
2-1/2 in.
Shipping Weight
15.95 lb.
Housing Material
Steel, Aluminum, Brass
Suction Design
Fixed Tube
Item
Drum Pump
Suction Pipe Size
1-21/32 in.
Length
51 in.
Suction Tube Length
37 in.
Maximum Air Inlet PSI
145
Suction Tube Type
Single Tube
Maximum Flow (GPM)
4.76
Type
Air Operated, 5:1 Oil Ratio
Maximum GPM for Oil
4.76
Warranty
1 Year Warranty Against Manufacturing and Workmanship Defects
Maximum Head
26 ft.
Wetted Materials
Steel, Brass, Aluminum, Nitrile Rubber, Polyurethane, Turcite
Maximum Liquid Temperature
140°F
General
Air Outlet Size
1 3/8 in
Includes Suction Tube
Yes
Application
Oil Transfer
Max. Air Pressure
150 psi
Compatible Chemicals
Automatic Transmission Fluid, Motor Oil
Max. Flow Rate
4.76 gpm
Discharge Connection Type
FNPT
Max. Head - Pumps
26 ft
For Container Size
55 gal
Max. Oil Flow
4.76 gpm
For Container Type
Drum
Max. Outlet Pressure
750 psi
For Media Type
Automatic Transmission Fluid, Motor Oil
Min. Air Pressure
30 psi
For Use With
High Viscosity Oils (Up to SAE 240 Oils) for Dispensing Up to 50 Meters Away
Not Recommended Chemicals
Antifreeze (Coolant), Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Housing Material - Pumps
Aluminum, Brass, Steel
Pump Package Type
Basic Pump without Discharge Hose
Includes
Pump with Bung Adaptor, Nipple for Connecting Air Filter, Suction Tube
Special Features
World Class Double Acting Operation Industrial Oil Dispensing Pumps with Guaranteed Performance and Hassle Free Operation. Designed to Work in Tough Conditions & are Ideal for Use in Industry, Workshop, Farm, Construction or as Part of the Mobile Oil System. All Metal Construction, Fully CNC Machined with Hardened Wear Resistant Moving Parts. Have a built in strainer at pump imlet tp keep contaminants away
Includes Bung Adapter
Yes

Product Description

Automotive fluid, fuel, and oil pneumatic drum pumps are designed for dispensing and transferring moderate to large volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. Sometimes called an air-operated oil transfer pump or a pneumatic fuel transfer pump, these pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
