INGERSOLL RAND

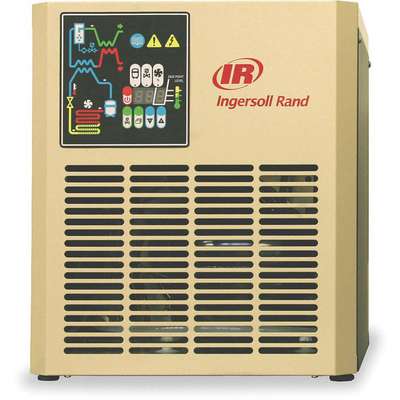

25 CFM Compressed Air Dryer, For 7.5HP Maximum Air Compressor, 203 psi
Hover over image to magnify
#922913-5 | Pkg Qty: 1
$2,975.15 pkg | $2,975.15 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Mfr. Part Number
D42IN
Amps AC
3.6
Overall Depth
18 in.
Brand
INGERSOLL RAND
Overall Height
18 in.
CFM
25
Overall Width
15-3/8 in.
Depth
18 in.
Package Quantity
1
Dew Point
50°F
Phase
1
Finish
Powder Coated
Pipe Size
1/2 in. NPT
Full Load Amps
3.6
Power
0.18kW
ISO Class
6
Shipping Weight
60 lb.
Item
Compressed Air Dryer
Type
Refrigerated
Maximum Air Compressor HP
7-1/2
Voltage
115 VAC
Maximum Pressure
203 psi
Width
15-3/8 in.
General
Air Inlet Gender
Female
ISO Class - Air Treatment
6
Air Inlet Type
NPT
Includes
Electronic Auto Drain
Air Outlet Size
1/2 in
Input Voltage - Air Treatment
115V AC
Air Outlet Type
NPT
Max. Flow - Air Treatment
25 cfm
Connection Size - Air Treatment
1/2 in NPT
Max. Incoming Pressure - Air Treatment
203 psi
Cycling Type
Non-Cycling
Maximum Flow @ 100 psi
25 scfm
Features
Integrated Separator, Fan
Number of Air Inlets
1
Filtered Substance
Oil, Water
Number of Air Outlets
1
For Maximum Compressor Output Power
7.5 hp
Phase - Air Treatment
Single
Full Load Current
3.6 A
Refrigerant
R-134A
Heat Exchanger
Aluminum Braze Plate
Refrigeration Compressor HP
1/6 hp
Heat Exchanger Material
Aluminum
Refrigeration Compressor Horsepower
0.166666666 hp
Product Description
Permanently bonded Freon® plate heat exchanger enhances heat and moisture separation for maximum dew point performance. Variable-speed fan further ensures continuous heat removal. Ingersoll Rand D Series has an auto-drain included.
Expertly Selected Product Pairings
Item Barcode
Compressed Air Dryer 25 Cfm
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2HUF1 | COMPRESSED AIR DRYER |
 | UNSPSC CODES | 40151610 | |
 | VMRS (ATA) CODES | 053-006-009 | COMPRESSED AIR DRYER |
