SPEEDAIRE

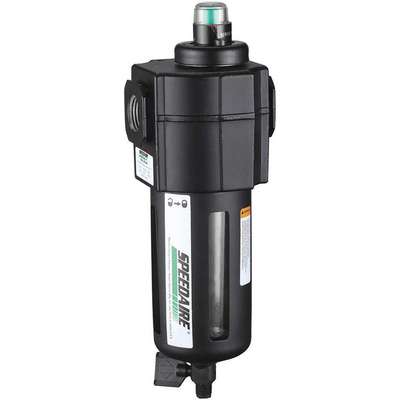

Pneumatic Oil Filter: Coalescing, 1/2 in NPT, 0.01 micron, 35 cfm, 150 psi Max Op Pressure
Hover over image to magnify
#924009-6 | Pkg Qty: 1
$109.00 pkg | $109.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Mfr. Part Number
4ZL46
Bowl Material
Polycarbonate with Guard
Microns
0.01
Brand
SPEEDAIRE
NPT
1/2 in.
Drain Port Size
Will Fit 1/8-27 and 1/8-28 Pipe Thread
Overall Height
9.31 in.
Drain Type
1/4 in. Turn
Overall Width
3.15 in.
Filter Rating
0.01 Microns
Package Quantity
1
Item
Pneumatic Oil Filter
Pipe Size
1/2 in. NPT
Maximum Flow
35 cfm
Port Size
1/2 NPT
Maximum Flow (CFM)
35 CFM
Product Size
Standard
Maximum Pressure
150 psi
Shipping Weight
1.9 lb.
Maximum Temperature
125 deg. F
Type
Modular
Maximum Temperature (Deg. F)
125
Width
3.15 in.
General
Air Flow Direction
Left to Right
Filter Bowl Material
Plastic
Air Inlet Gender
Female
Filter Rating - Air Treatment
0.01 micron
Air Inlet Type
NPT
For Fluid Type
Compressed Air
Air Outlet Gender
Female
For Removal Of
Oil, Oil Odor, Oil Vapor, Particles, Water
Air Outlet Size
1/2 in
For Substance Type
Air
Air Outlet Type
NPT
Includes
Bowl Guard
Bowl Material - Air Treatment
Polycarbonate with Guard
Max. Flow - Air Treatment
35 cfm
Bowl Size - Air Treatment
7.0 oz
Max. Flow Range - Air Treatment
31 to 40 cfm
Connection Size - Air Treatment
1/2 in NPT
Max. Incoming Pressure - Air Treatment
150 psi
Drain Part Compatibility
1AKG7A
Minimum Operating Pressure
1 MPa
Filter Bowl Capacity
7 oz
Modular Connection
No Modular Connection
Filter Bowl Guard Included
Yes
Size - Air Treatment
Standard
Filter Bowl Guard Material
Iron
System Location
Main Line
Product Description
Features a modular connector for easy removal and replacement. Includes a service life indicator. For maximum life, use in conjunction with a general purpose air line filter equipped with a 5-micron element. For Max. Flow, the CFM is measured at 100 psig with a saturated element (3 to 5 psig drop).
