Home All Products Fluid Transfer & Pumps Water Pumps Sewage Pumps, Systems & Accessories Sump Pumps SKU: 921811-1
Share
Print
DAYTON

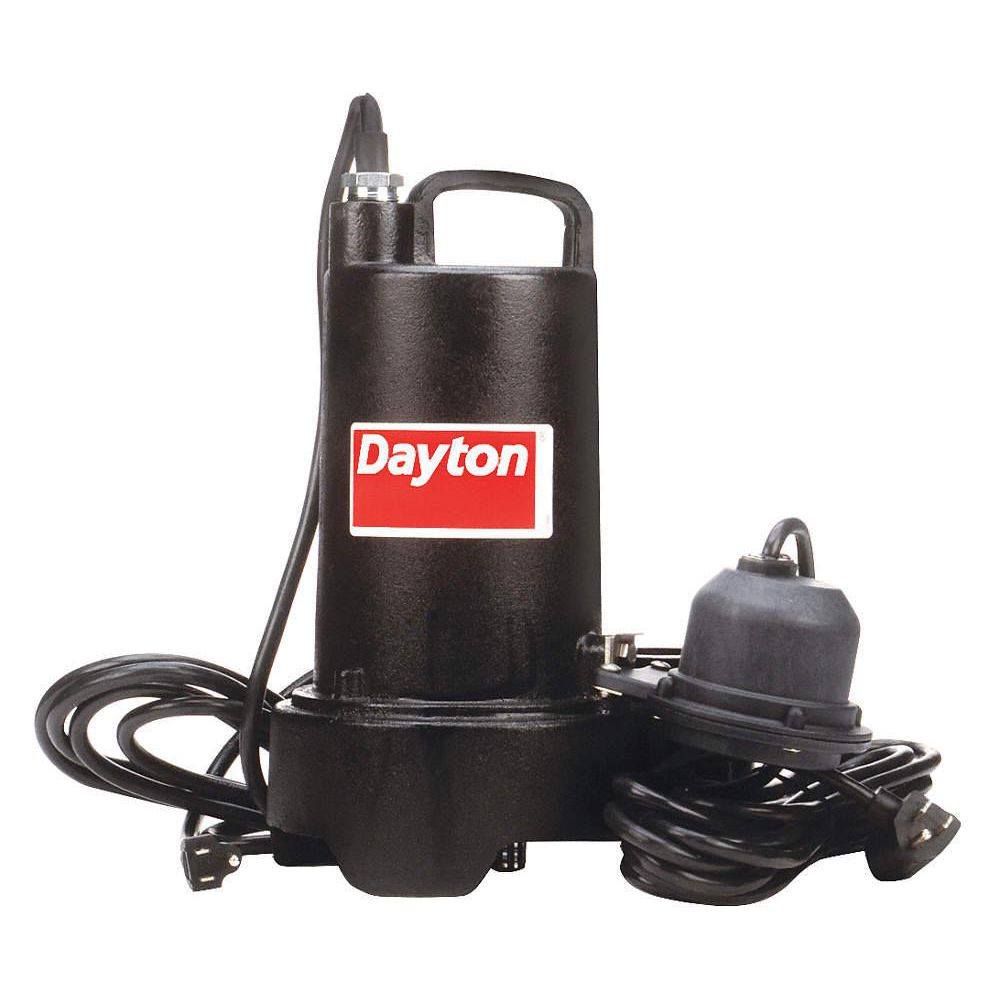

1/3 HP Submersible Sump Pump, Diaphragm Switch Type, Cast Iron Base Material

Hover over image to magnify
Sump Pump,1/3 Hp,1-1/2" NPT,15
PI_Asset_948161
PI_Asset_948162
Sump Pump,1/3 Hp,1-1/2" NPT,15
PI_Asset_948161
PI_Asset_948162

#921811-1 | Pkg Qty: 1

$369.75 pkg | $369.75 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Alarm
No
Maximum Head
30 ft.
Alarm Included
No
Maximum Liquid Temperature
104°F
Amps
6.8 A
Maximum Temperature (Deg. F)
104
Base Material
Cast Iron
Mechanical Seal
SiC
Bearing Type
Upper and Lower Ball
Mfr. Part Number
3BB78
Brand
DAYTON
Motor Type
Permanent Split Capacitor, Oil-Filled
Cord Length
15 ft.
NEC Cord Designation
SJTOW

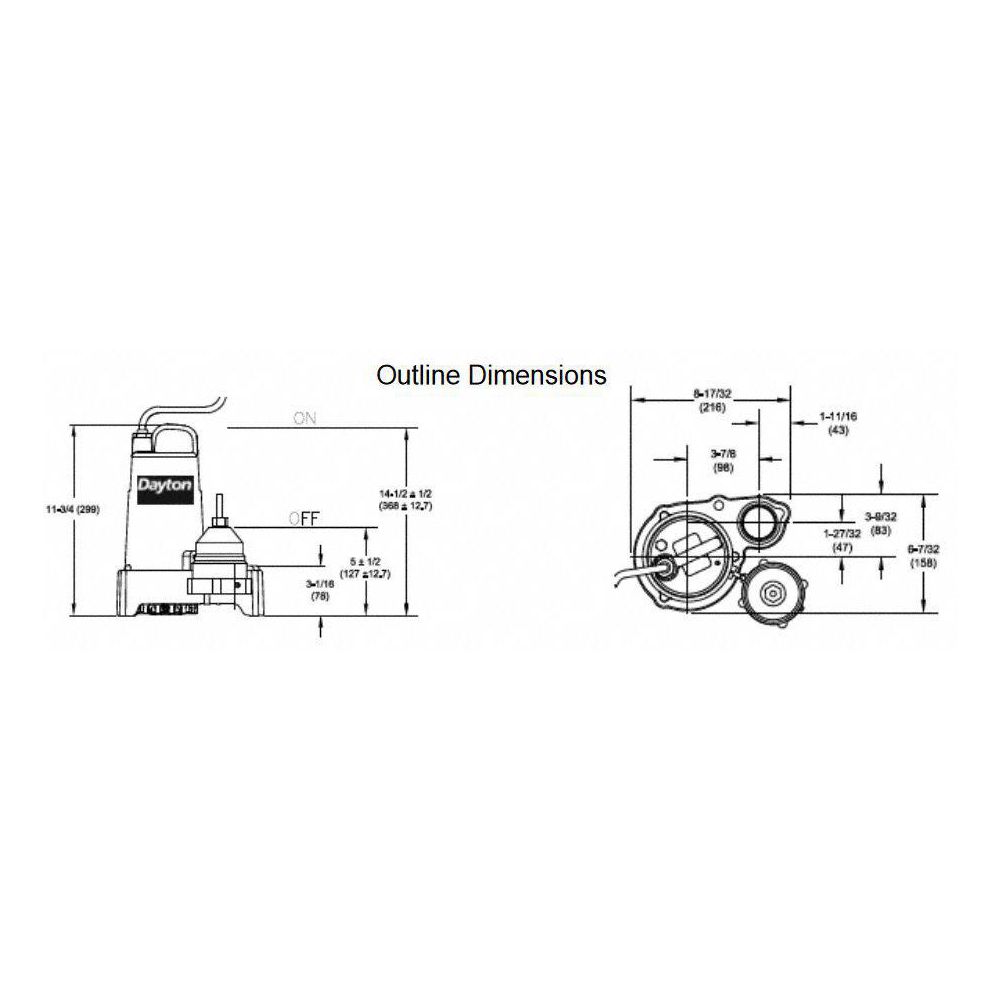

Diameter
10 in.
Off Point
5 in.
Discharge NPT
1-1/2 in. F
On Point
14-1/2 in.
Duty
Continuous
Package Quantity
1

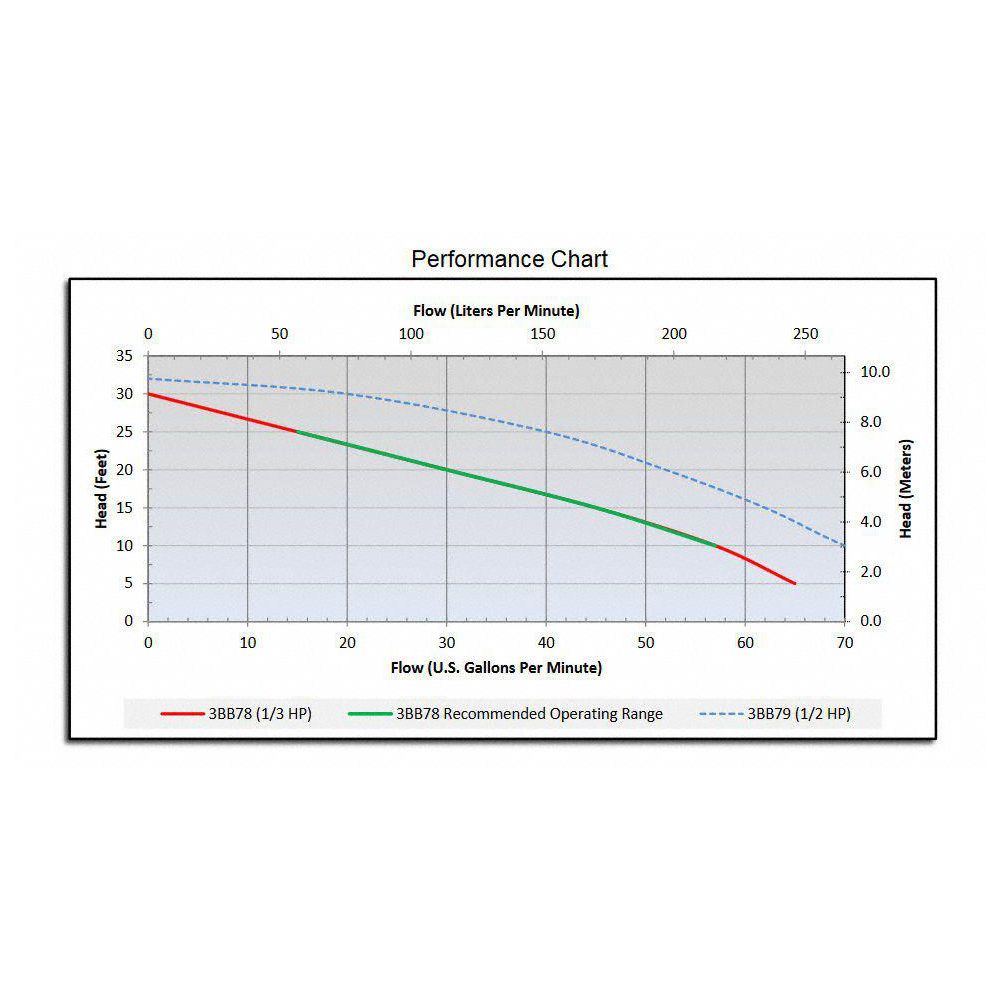

GPM of Water @ 10 Ft. of Head
57
Pump Body Material
Cast Iron
GPM of Water @ 15 Ft. of Head
45
Pump HP
1/3
GPM of Water @ 20 Ft. of Head
30
Pump Type
Automatic
GPM of Water @ 25 Ft. of Head
15
Shaft Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
65
Shaft Seal
Silicon Carbide
Gauge/Conductor
18/3
Shaft Seal Material
Carbon Ceramic
Height
11-3/4 in.
Shipping Weight
33.5 lb.
Horsepower
1/3
Sump Pump Item
Submersible Sump Pump
Housing
Cast Iron
Switch Type
Diaphragm
Housing Material
Cast Iron
Thermal Protection
Yes
Hz
60
Top Material
Cast Iron
Impeller Material
Cast Iron
Type
Automatic
Item
Submersible Sump Pump
Voltage
120 VAC
Maximum Diameter Solids
1/2 in.
General
Body Dia.
10 in
Flow Rate @ 5 Ft. of Head
65 gpm
Discharge Dia.
1 1/2 in
Nominal Voltage
110 V AC
Discharge Gender
Female
Rated Voltage
120V AC
Discharge Standard
NPT
Shaft Seal Material - Pumps
Carbon Ceramic
Flow Rate @ 10 Ft. of Head
57 gpm
Switch Actuation
Diaphragm
Flow Rate @ 15 Ft. of Head
45 gpm
Switch Electrical Connection
Piggyback
Flow Rate @ 20 Ft. of Head
30 gpm

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.
