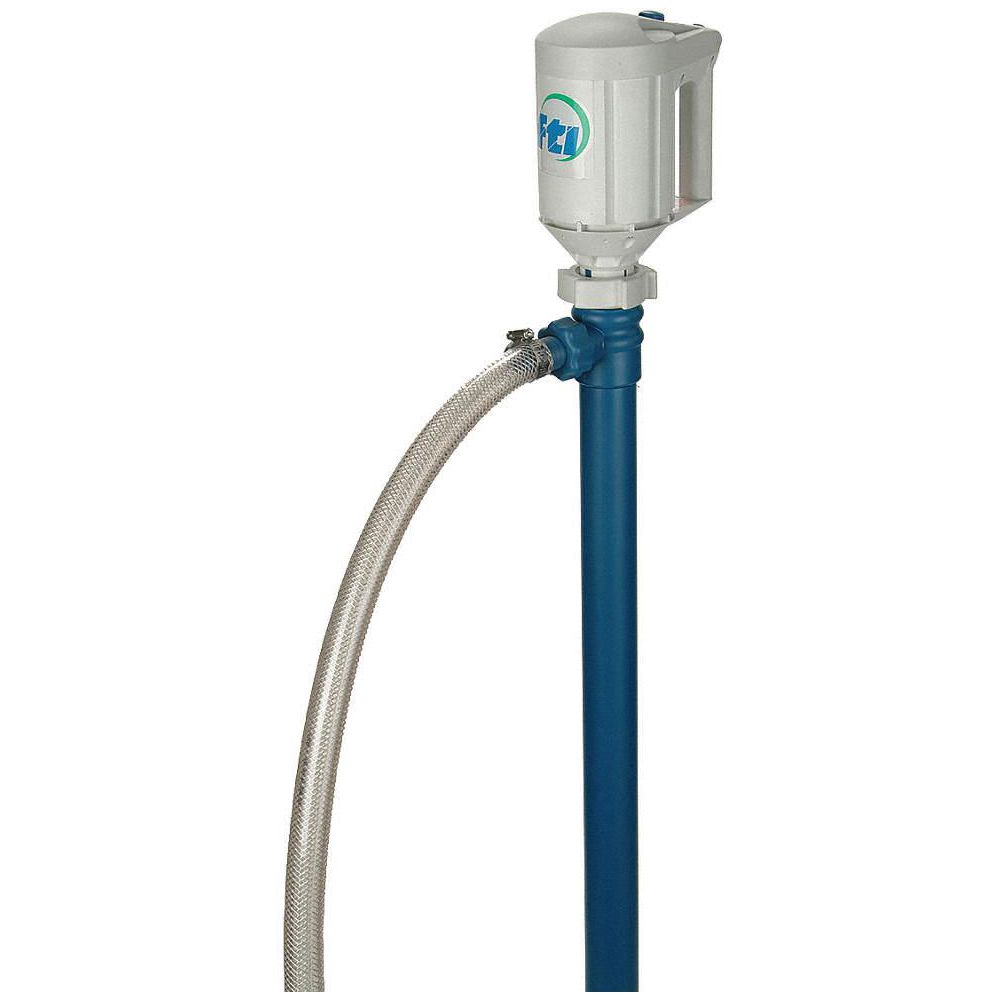

4/5HP Intake Tube Polypropylene Electric Operated Drum Pump, 10 to 40 GPM, 3500 to 10,000 RPM
Hover over image to magnify
#927276 | Pkg Qty: 1
$985.37 pkg | $985.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Piston
Metered
No
Adapter Diameter
2 in.
Mfr. Part Number
PFM-40 & M3V Kit
Adapter Material
Polypropylene
Mfr. Warranty Length
1 yr.
Adapter Type
Bung
Motor Enclosure
ODP
Agency Compliance
CSA
Motor RPM
3500 to 10,000
Brand
FINISH THOMPSON
Motor Type
Universal AC
DEF Compatible
No
Outlet Size
1" Barb
Discharge Tube Length
5 ft.
Overall Length
52 in.
Discharge Tube Outlet ID Size
1"
Pack Quantity
1
Discharge Tube Outlet Outside Diameter
1-5/16"
Phase
1
Discharge Tubing Material
PVC
Plug Type
NEMA 5-15
Duty Cycle
Continuous
Power Source
Electric
Fits
2" Bung
Pump Body Material
Polypropylene
Food Grade
No
RPM
3500 to 10,000
For Use On
55 gal. Drums and Totes
Seal
Fluoroelastomer
Full Load Amps
5.6
Seal Material
Fluoroelastomer
GPM
10 to 40
Self-Priming
Yes
Gasket Material
Series
PF
Height
40 in.
Shipping Weight
15.55 lb.
Horsepower
4/5
Suction Design
Intake Tube
Housing Material
Polypropylene
Suction Tube Length
40 in.
Hz
60
Suction Tube Outlet Outside Diameter
2 in.
Inlet Size
2"
Suction Tube Type
Intake Tube
Item
Electric Operated Drum Pump
Thermal Protection
No
Maximum Air Inlet PSI
35
Type
Motor and Tube
Maximum GPM for Oil
26
Variable Speed
Yes
Maximum GPM for Water
40
Voltage
115 VAC
Maximum Head
10 to 80 ft.
Voltage @ 50 Hz
115
Maximum Liquid Temperature
160°F
Voltage @ 60 Hz
115
Maximum Pressure
35 psi
Wetted Materials
316 Stainless Steel and PVC, FKM, Polypropylene, PTFE, PVDF
Maximum Viscosity
500 CPS
pH Range
6 to 10
General
Application
Chemical Transfer
Max. Flow Rate
40 gpm
Bung Connection Dia.
2 in
Max. Fluid Temp.
160 Degrees F
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)
Max. Head - Pumps
80 ft
Discharge Connection Type
Hose Barb
Max. Head Pressure
35 psi
Discharge Tube Outlet ID
1 in
Max. Outlet Pressure
35 psi
Discharge Tube Outlet OD
1 5/16 in
Min. Fluid Temp.
35 Degrees F
For Container Size
55 gal
Noise Level
79 db
For Container Type
Drum
Nominal Voltage
110V AC
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
For Use With
Chemical Transfer
Number of Phases
1
Frequency (Hz)
60
Pump Connection Type
Smooth Bore
Height Above Container
15 1/3 in
Pump Package Type
Basic Pump with Discharge Hose
Hose Inside Dia.
1 in
Rated Voltage
115V AC
Hose Outside Dia.
1 5/16 in
Special Features
Rugged, Industrial Quality, Available with A Variable Speed 115V Electric Or Air Motor, Produces Higher Flows And Higher Pressures, Best Choice For Totes
Hose Tube Material
PVC
Standards
CSA Certified
Housing Material - Pumps
Polypropylene
Suction Tube ID
2 in
Includes
Clamp, Hose, Motor, Pump
Suction Tube Material
Polypropylene
Includes Discharge Hose
Yes
Suction Tube OD
2 in
Includes Suction Tube
Yes
Product Description
Acid, base, and solvent electric drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.
Documents
Item Barcode
Drum Pump,115VAC,4/5 Hp,60 Hz
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5FZV1 | Drum Pump, 115VAC,4/5 |
 | UNSPSC CODES | 40151529 | |
 | VMRS (ATA) CODES | 053-006-009 | Drum Pump, 115VAC,4/5 |
