GENERAL ELECTRIC

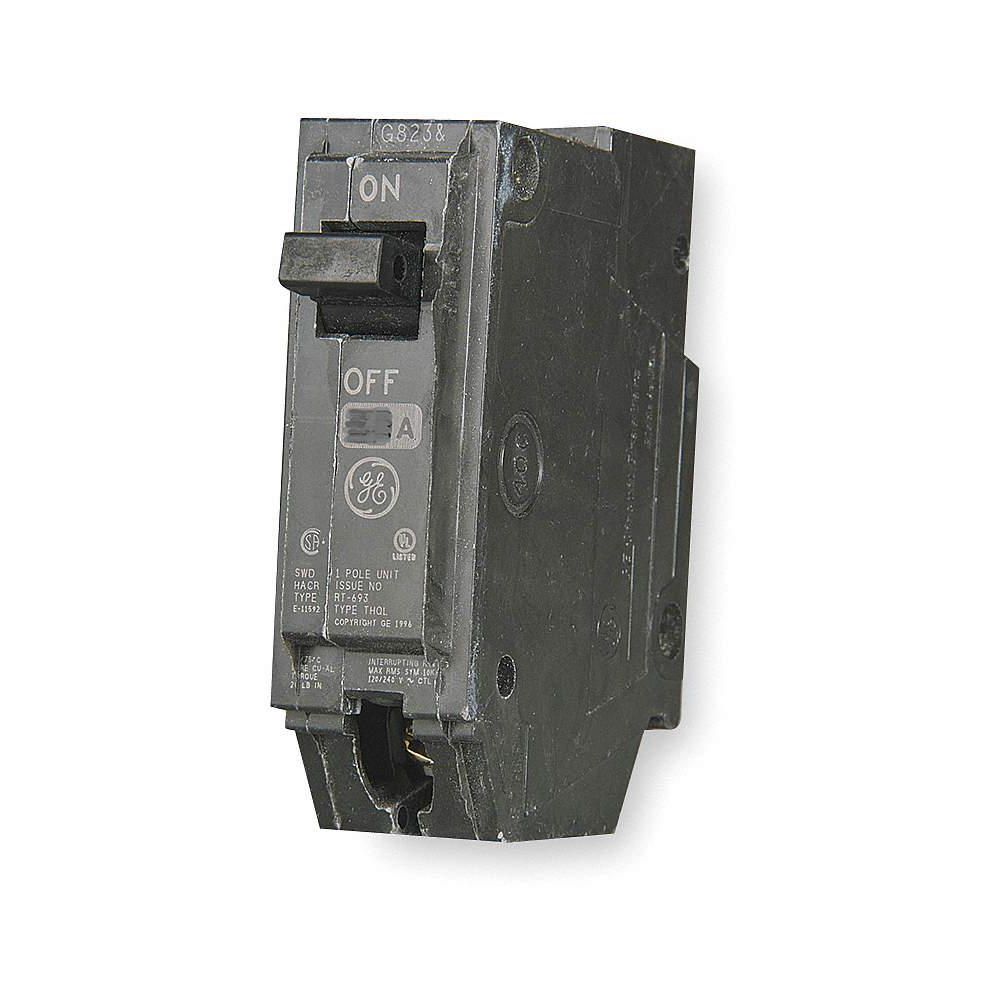

General Electric Plug In Circuit Breaker, THQL, Number of Poles 1, 15 Amps, 120/240 VAC, Standard

Hover over image to magnify
Circuit Breaker,15A,1P,10kA,
PI_Asset_1768009
Circuit Breaker,15A,1P,10kA,
PI_Asset_1768009
Double tap image to magnify
Circuit Breaker,15A,1P,10kA,
3HXH4_1
Circuit Breaker,15A,1P,10kA,
3HXH4_1

#921506-7Pkg Qty: 1

$12.48 pkg | $12.48 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Wire Size
8 AWG
Air @ 120 VAC
10kA
Mfr. Part Number
THQL1115
Amperage
15 A
Minimum Wire Size
14 AWG
Amps
15 A
Number of Poles
1
Brand
GENERAL ELECTRIC
Package Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Plug-In
DC Voltage Rating
Not Rated
Phase
Single
Depth
2.37 in.
Phase Connection
Any
For Use With
Power Mark Gold Load Centers and AQ Lighting Panels
Series
THQL
Frame Size
100A/THQ
Shipping Weight
.3 lb.
High Amp Trip Setting
150
Terminal Connection
Screw Clamp
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
120VAC
Length
1 in.
Width
1 in.
Maximum Air Rating
10kA at 120/240VAC
General
Circuit Breaker Actuator
Toggle
Compatible Panelboard/Load Center Series
AQ
Circuit Breaker Mounting Style
Plug In
Standards
UL File E11592, GSA Compliance, NEMA

Product Description

These THQP, THQL, and THHQL series miniature circuit breakers plug into place in panelboards and load centers without requiring DIN rail, so they're easier to install than unit-mount breakers. They interrupt currents when faults are detected in the circuit. These breakers connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center. They're UL listed for use in HACR (heating, air conditioning, and refrigeration) applications.
