SIEMENS

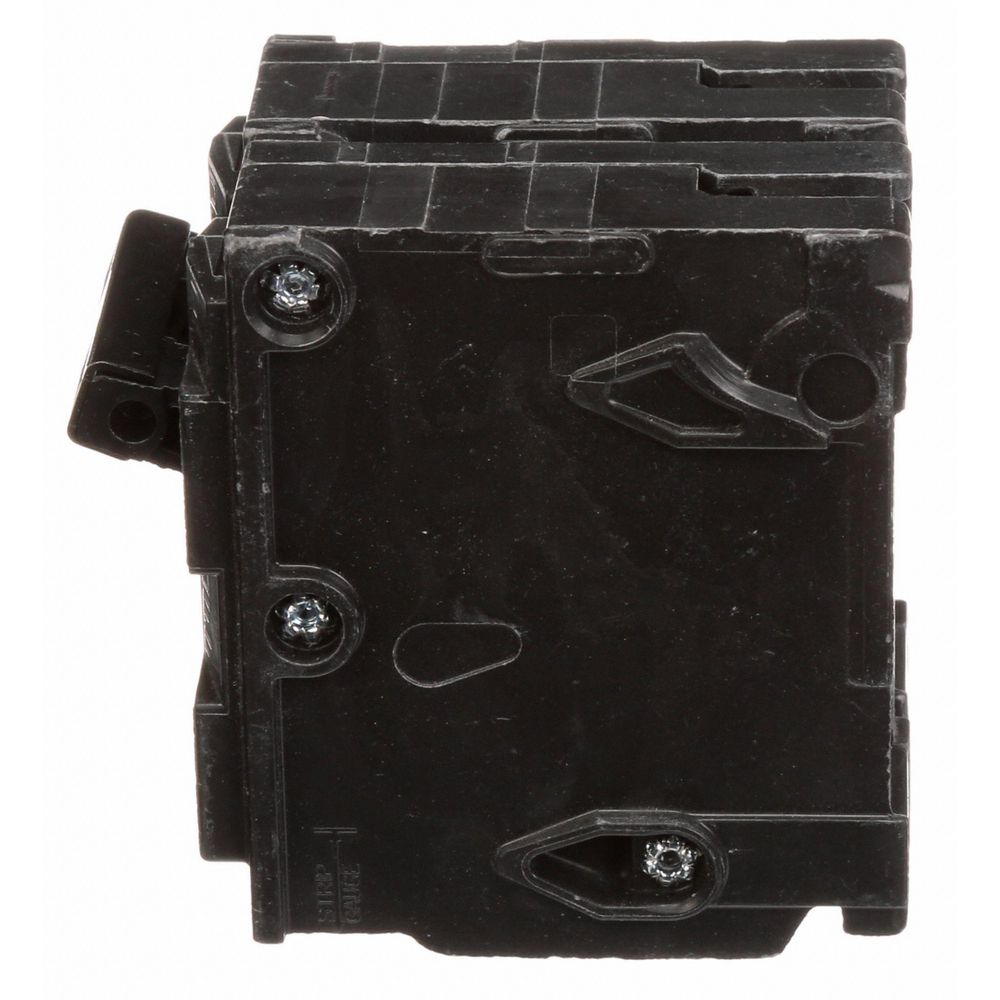

Siemens Miniature Circuit Breaker, Amps 30 A, Circuit Breaker Type Standard, Number of Poles 2

Hover over image to magnify
Circuitbreaker,2Pole,30A,Qp,
PI_Asset_1499243
Circuitbreaker,2Pole,30A,Qp,
PI_Asset_1499243

#913041-3 | Pkg Qty: 1

$30.82 pkg | $30.82 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
10kA at 120VAC
Air @ 120 VAC
10kA
Maximum Wire Size
8 AWG
Air @ 240 VAC
10kA
Mfr. Part Number
Q230
Amperage
30 A
Minimum Wire Size
14 AWG
Amps
30 A
Number of Poles
2
Brand
SIEMENS
Package Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Plug-In
DC Voltage Rating
Not Rated
Phase
Single
Depth
3 in.
Phase Connection
Any
For Use With
Siemens EQ Load Centers
Series
Q
Frame Size
125A/QP
Shipping Weight
.55 lb.
High Amp Trip Setting
30
Terminal Connection
Lug
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
120 - 240VAC
Length
2 in.
Width
3 in.
General
AIR @ 120VAC
10kA
Circuit Breaker Mounting Style
Plug In
AIR @ 240VAC
10kA
Compatible Panelboard/Load Center Series
EQ
Circuit Breaker Actuator
Toggle

Product Description

These Q series miniature circuit breakers plug into place in panelboards and EQ load centers and don't require bolting, so they're easier to install than bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
