Home All Products Electrical Motors Starters And Contactors Overload Relays SKU: 920810-3

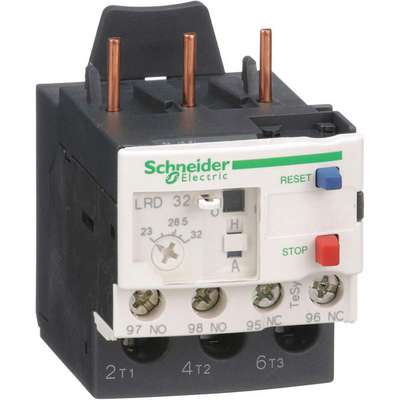

Schneider Electric Overload Relay, Trip Class: 10, Current Range: 23.0 to 32.0A, Number of Poles: 3

Name: Schneider Electric Overload Relay, Trip Class: 10, Current Range: 23.0 to 32.0A, Number of Poles: 3
Brand: SCHNEIDER ELECTRIC
SKU: 9208103
Price: 109.21 USD
Availability: InStock

Hover over image to magnify

#920810-3 | Pkg Qty: 1

$109.21 pkg | $109.21 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

SCHNEIDER ELECTRIC

Package Quantity

Current Range

23.0 to 32.0A

Sensing Method

Bimetallic

Depth

2-3/4 in.

Shipping Weight

.3 lb.

Height

3.62 in.

Starter Type

IEC

Item

Overload Relay

Voltage

690 VAC

Mfr. Part Number

LRD32

Width

1.77 in.

Number of Poles

General

Body Depth - Relay

2.75 in

Overload Relay Current Range

23 to 32A

Body Height - Relay

3.62 in

Reset Type - Relay

Manual

Body Width - Relay

1.77 in

Standards

UL, CSA, ATEX D 94/9/CE, GOST

Features

Single Phase Sensitivity, Differential

Trip Class

For Use With

LC1D25 thru LC1D32 Contactor

Trip Class - Overload

Overall Height - Relay

3.62 in

Use With - Contactors and Starters

Mfr. Series LC1D25 to LC1D32 Contactors

Product Description

TeSys™ IEC Contactors and Overload Relays For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount. CSA and CE Certified. Overload Relays For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
