ARMORED TEXTILES

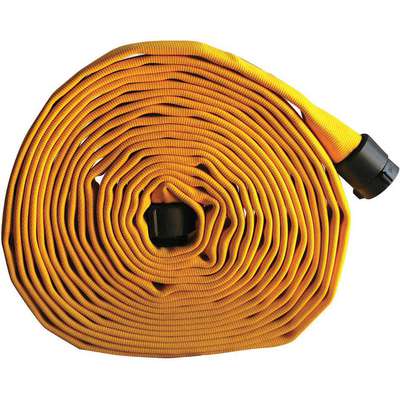

Armored Textiles Attack Line Fire Hose, Double Jacket, 1-1/2" Hose Inside Dia., 50 ft., Yellow

Hover over image to magnify
Attack Line Fire Hose,50 Ft. L,
Attack Line Fire Hose,50 Ft. L,

#920755-3 | Pkg Qty: 1

$159.46 pkg | $159.46 ea
Color Family : Yellow
Blue
Red
Tan
Yellow

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
ARMORED TEXTILES
Jacket Material
Polyester
Burst Pressure
1200 PSI
Length
50 ft.
Color Family
Yellow
Lining Material
Rubber
Coupler Material
Aluminum
Mfr. Part Number
G52H15HDY50N
Coupling Bowl Size
1-1/2 in.
Package Quantity
1
Coupling Lug Style
Rocker
Proof Test Pressure
400 psi
FM Approved
No
Service Test Pressure
800 psi
Fitting Material
Aluminum x Aluminum
Shipping Weight
18.1 lb.
Fitting Size
1-15/16 in. x 1-15/16 in.
Test Pressure
800 psi
Hose Inside Diameter
1-1/2 in.
Thread
NH
Hose Type
Double Jacket
Working Pressure
400 psi
Item
Attack Line Fire Hose
General
Compatible Chemicals
Air, Deionized Water, Fresh Water, Salt Water
Hose Fitting B Material
Aluminum
Coupling Material
Aluminum
Hose Fitting B Type
FNH
Fire Hose Type
Double Jacket
Hose Fittings
Aluminum 1-15/16 in MNH x Aluminum 1-15/16 in FNH
Fitting Type
MNH x FNH
Hose Inside Dia.
1 1/2 in
For Media Type
Air, Water
Hose Tube Material
EPDM
For Use With
Attack Line
Standards
NFPA 1961, 1963
Hose Configuration
Coupled Assembly
Temp. Range
-40° to 176°F
Hose Cover Material
Polyester
Thread Size
1-1/2"
Hose Fitting A Material
Aluminum
Thread Type
NST/NH
Hose Fitting A Type
MNH
UL Listed
Yes

Product Description

These double-jacket attack line fire hoses are made from polyester and have a polyurethane, EPDM, or NBR lining. The hoses are lightweight, which minimizes the effort required to carry and move them. They remain flexible in cold temperatures and have a high burst rating. The hoses provide very low friction loss, which helps ensure they consistently deliver water at the appropriate flow rate and pressure. The hoses are immune to mildew and rot, and colored versions of the hose are impregnated with a polymer coating that improves their abrasion resistance. These double-jacket attack line fire hoses are used in municipal fire departments, industrial fire brigades, attack and supply lines, and high-rise packs.

Attack fire hoses (also known as action fire hoses) convey a stream of water from a fire pump to a fire to stop the fire from spreading and douse the flames. These fireproof hoses are flexible and lightweight so that firefighters can carry them to where they're needed. The hoses lay flat when not in use. They have fittings on both ends for connecting to equipment and nozzles.
