SQUARE D

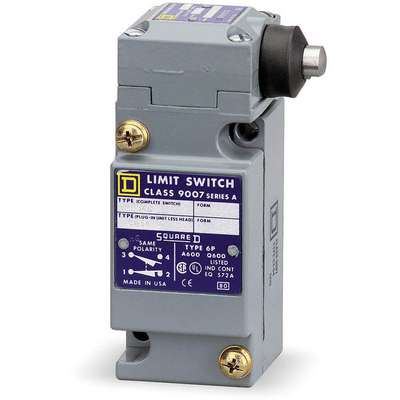

Square D Rod, Adjustable Push Heavy Duty Limit Switch; Location: Side, Contact Form: 1NC/1NO, Horizontal Move
Hover over image to magnify
#920426-7 | Pkg Qty: 1
$312.62 pkg | $312.62 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 600 V
IP Rating
67
Accessory Group
A
Item
Heavy Duty Limit Switch
Actuator Length
1.16 in.
Limit Switch Style
Heavy Duty Limit Switch
Actuator Location
Side
Mfr. Part Number
9007C54GD
Actuator Style
Plunger
Movement
Horizontal
Amperage
10 A
NEMA Rating
1, 2, 4, 6, 6P, 12, 13
Basic Actuator Style
Plunger
Operating Force
4.00 in.-lb
Body Depth
1.14 in.
Operating Temperature Range
185 deg. F
Body Height
2-1/2 in.
Package Quantity
1
Body Material
Zinc
Replacement Body
2EG11
Body Style
Miniature
Replacement Head
2EG62
Body Width
0.83 in.
Replacement Receptacle
2EG22
Boot Sealed Actuator
No
Series
9007C
Brand
SQUARE D
Shipping Weight
1.2 lb.
Cable Length
2 ft.
Style
Side Push Rod Plunger
Contact Form
1NC/1NO
Threaded for Panel Mounting
No
DC Contact Rating
10 A @ 600 V
Travel
0.25 in.
Depth
1.79 in.
Type
Heavy Duty, Oil Tight
Electrical Connection
Screw Terminals
Voltage
600 VAC/DC
Footnotes
4
Voltage Rating
600 VAC/DC
Hazardous Location
No
Width
1.55 in.
Height
4.02 in.
Wiring Entry
1/2 in. NPT
General
AC Contact Rating - Limit Switch
10A @ 600V
Contact Form- Switches
1NC/1NO
Actuator Length - Limit Switch
1.16 in
DC Contact Rating - Limit Switch
10A @ 600V
Actuator Location - Limit Switch
Side
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Adjustable Push, Rod
Mounting Hole - Limit Switch
(2) 0.20 in dia
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Depth - Limit Switch
1.14 in
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Body Height - Limit Switch
2.5 in
Operating Temp. Range
0° to 185°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
0.83 in
Stem Thread - Limit Switch
No Stem
Product Description
This heavy-duty limit switch features zinc body construction.
