SQUARE D

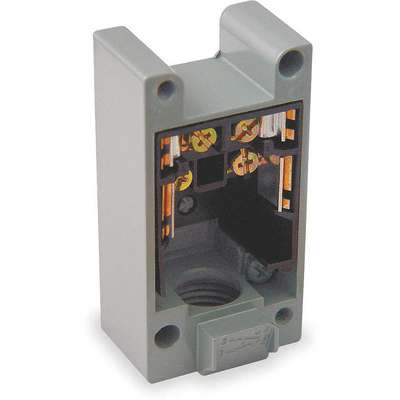

Square D Limit Switch Base, Zinc Die Cast, 1NO/1NC Contact Form, 1/2"-14 NPT Conduit Size
Hover over image to magnify
#916345-3 | Pkg Qty: 1
$42.60 pkg | $42.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SQUARE D
Material of Construction
Zinc Die Cast
Conduit Size
1/2 in.-14 NPT
Mfr. Part Number
9007CT54
Contact Form
1NO/1NC
Pack Quantity
1
For Use With
Mfr. No. SPDT Series
Shipping Weight
.4 lb.
Item
Limit Switch Base
Type
1NO/1NC
General
Body Configuration
Plug-In
Mounting Hole Diameter
0.2 in
Body Material Type
Metallic
Mounting Hole Horizontal Center to Center Distance
30 mm
Body Style
EN50041
Mounting Hole Vertical Center to Center Distance
60 mm
Combo Body Style
60 mm x 30 mm
Mounting Location
Front
Compatible with Manufacturer Model Number
9007C054
Mounting Style
Diagonal Side
Compatible with Part Number
2EG11
NEMA Enclosure Rating
12, 13, 2, 4, 6, 6P
Compatible with Series
9007C
Number of Mounting Holes
2
Conduit Connection Size
1/2"-14
Operating Temperature - Maximum
185 Degrees F
Conduit Connection Type
NPT
Operating Temperature - Minimum
-20 Degrees F
Contact Form
1NO/1NC
Overall Depth
0.9 in
Electrical Connection
Screw-Clamp Terminal
Overall Length
3.14 in
H x W
1.55 in
Overall Width
1.55 in
Material
Zinc
Standards
ANSI B1.20.1
Product Description
This limit switch base features die-cast zinc construction and is engineered to be oil-tight for efficient operation.
Item Barcode
Limit Switch Base,1NO/1NC
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2EG22 | Limit Switch Base,1NO/1NC |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 | Limit Switch Base,1NO/1NC |
