Eaton 120VAC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 9 Full Load Amps-Inductive

Hover over image to magnify
Iec Magnetic Contactor,120VAC,
PI_Asset_965030
PI_Asset_965031
PI_Asset_965032

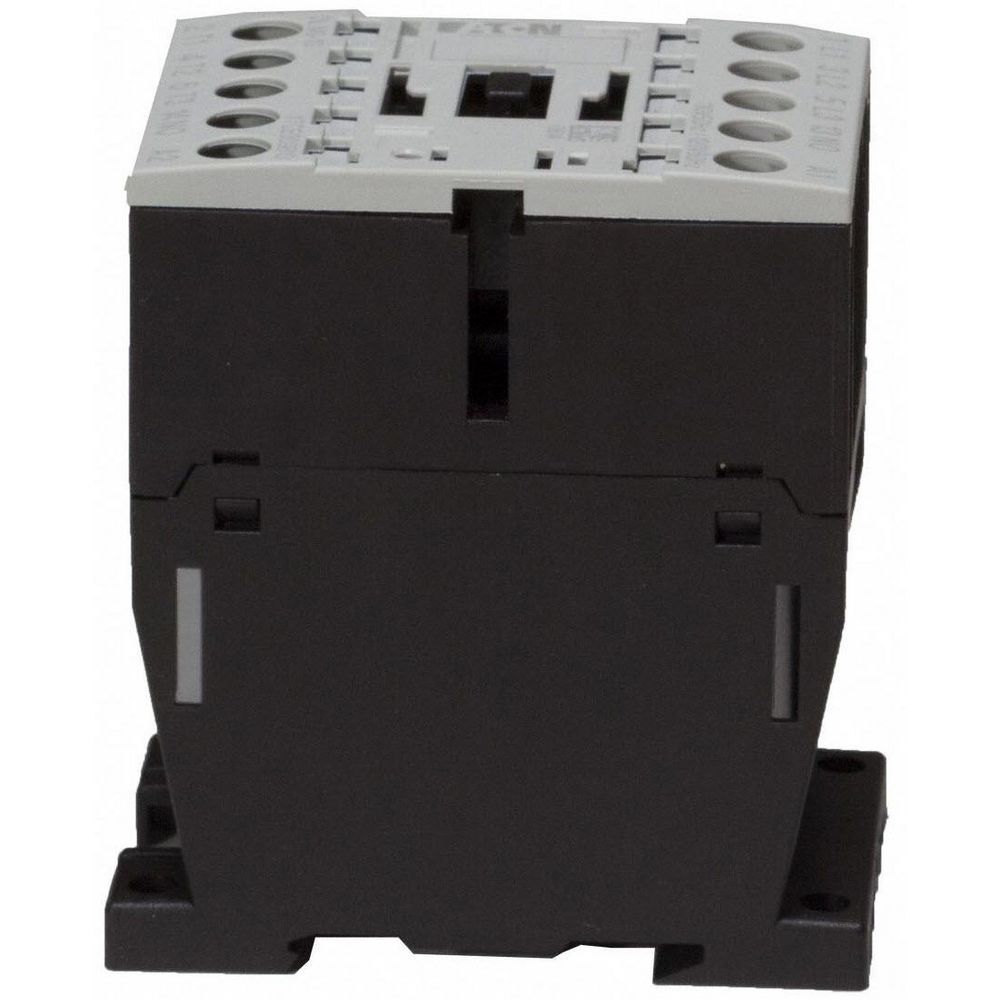

PI_Asset_965033
PI_Asset_965034
PI_Asset_965035
PI_Asset_965036
Iec Magnetic Contactor,120VAC,
PI_Asset_965030
PI_Asset_965031
PI_Asset_965032
PI_Asset_965033
PI_Asset_965034
PI_Asset_965035
PI_Asset_965036
Double tap image to magnify
Iec Magnetic Contactor,120VAC,
9191660_1
9191661_2
965032_3
965033_4
965034_6
9191660_1
9191660_2
Iec Magnetic Contactor,120VAC,
9191660_1
9191661_2
965032_3
965033_4
965034_6
9191660_1
9191660_2

#919166Pkg Qty: 1

$183.25 pkg | $183.25 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 24.
|

Technical Specifications

Key Specifications
Action
Nonreversing
Item
IEC Magnetic Contactor
Brand
EATON
Mfr. Part Number
XTCE009B01A
Coil Volts
120 VAC
Number of Poles
3
Depth
2.95 in.
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Series
Frame B
Height
1.77 in.
Shipping Weight
.56 lb.
Hz
50/60
Width
1.77 in.
General
Auxiliary Contact Form
1NC
HP @ 1 Phase - 240V
1 1/2 hp
Contactor Type
IEC
HP @ 3 Phase - 575V
7 1/2 hp
Full Load Amps-Resistive
22 A
Standards
UL/CE/CSA/CCC/ATEX/IEC EN 60947

Product Description

IEC Contactors and Overload Relays

  • IP20 rated Contactors rated: -25° to 50°C Relays rated: -25° to 65°C
  • Designed for industrial applications, Eaton XT/DIL M Series heavy-duty contactors can be combined with electronic overload relays to make a starter. Reversing contactors are available with screw terminals and panel or DIN-rail mounting. 690VAC max., 50/60 Hz. Feature low-wattage coils, auxiliary contacts, front access coil terminals, toolless assembly, and dual clamps for multiwire. Electronic Overload Relays have selectable trip class and phase unbalance, to protect motor life. Feature 5:1 current adjustment, Class 10A, 10, 20, 30 selectable protection, and are self-powered. Status LED indicates the overload operational status.
  • UL Listed, CE Approved, and CSA Certified. ATEX Listed and RoHS Compliant.
