SQUARE D

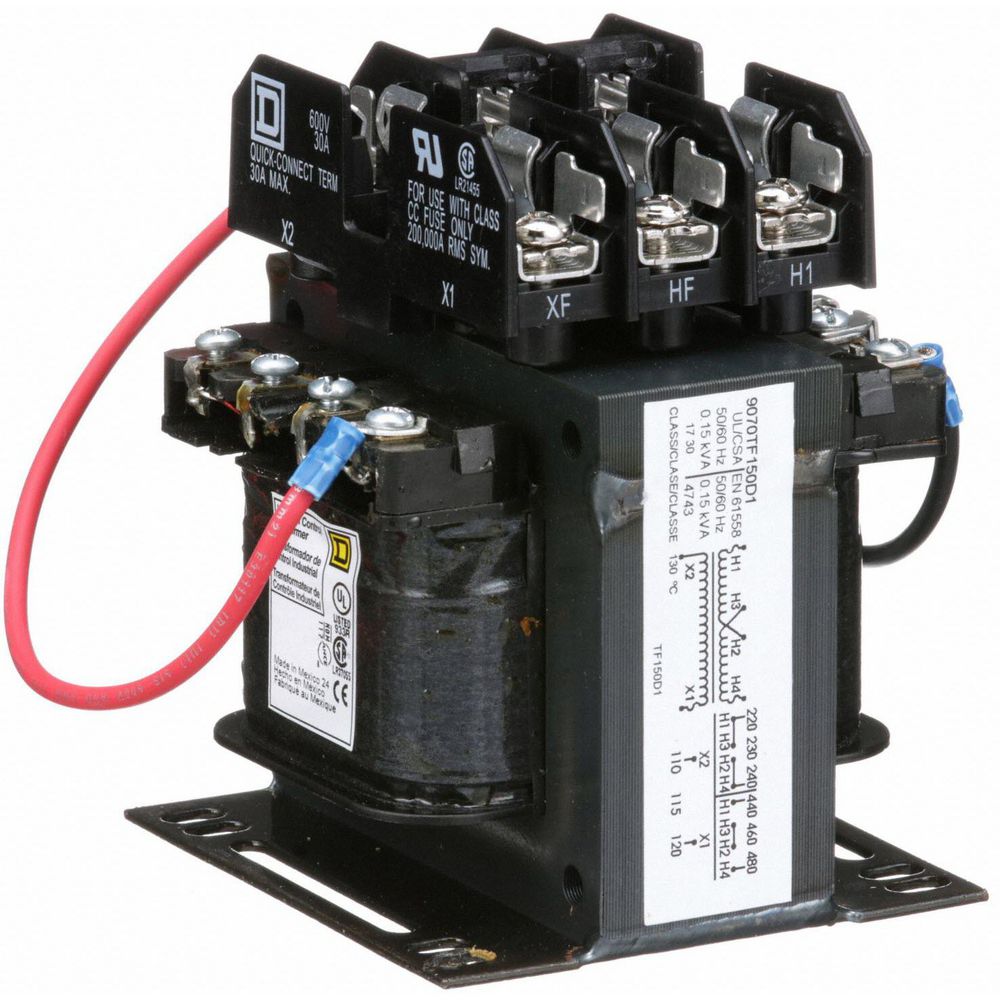

Square D Control Transformer, Input Voltage: 240 VAC, 480 VAC, Output Voltage: 120 VAC

Hover over image to magnify
Control Transformer,150VA,4.55
PI_Asset_1364846
Control Transformer,150VA,4.55
PI_Asset_1364846
Double tap image to magnify
Control Transformer,150VA,4.55
4R910_SS01_R01_C23
Control Transformer,150VA,4.55
4R910_SS01_R01_C23

#918995Pkg Qty: 1

$254.00 pkg | $254.00 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 08.
|

Technical Specifications

Key Specifications
120 Volts Secondary Fuse
1CX49
Mfr. Warranty Length
1 yr.
24 Volts Secondary Fuse
1CX46
Mounting
Panel
Brand
SQUARE D
Output Voltage
120VAC
Depth
3-3/4 in.
Package Quantity
1
Enclosure Finish
Varnish Vacuum Impregnation
Phase
1
Enclosure Style
Open
Protective Device
Primary Fuse, Secondary Fuse
Enclosure Type
Open
Shipping Weight
5.9 lb.
Fused
Yes
Temperature Rise
55deg. C
Height
4.55 in.
Transformer Type
Wire-Wound
Hz
50/60
Type
Control
Includes
Top Mounted Fuse Block
VA Rating
150VA
Input Voltage
240/480VAC
Voltage Output
120
Item
Control Transformer
Width
3.59 in.
Mfr. Part Number
9070TF150D1
General
240 Volts Primary Fuse
3HZ64
Output Voltage - Transformer
120V AC
480 Volts Primary Fuse
1CX65
Standards
Standard 508 and NEC 450
Hz - Electrical
50 Hz, 60 Hz
Temp. Rise
55°C
Input Voltage - Transformer
240V AC, 480V AC
VA Rating - Transformer
150 VA
Mounting - Transformer
Foot

Product Description

In addition to its 3-yr. warranty, this control transformer has a fully encapsulated coil eases wire routing around the it, and provides durable construction.
