DBI-SALA

Dbi-Sala Cross Arm Strap, Anchor Style Cable Pass-Through, Mounting Type Tie-Off

Hover over image to magnify
Cross Arm Strap,Temporary,48
PI_Asset_3733418
PI_Asset_3733419
PI_Asset_3733420
PI_Asset_3733421
PI_Asset_3733422
PI_Asset_3733423
Cross Arm Strap,Temporary,48
PI_Asset_3733418
PI_Asset_3733419
PI_Asset_3733420
PI_Asset_3733421
PI_Asset_3733422
PI_Asset_3733423

#918476-6 | Pkg Qty: 1

$208.56 pkg | $208.56 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Attaches To
Lifeline System
Mfr. Part Number
5900550
Brand
DBI-SALA
Package Quantity
1
D-Ring Material
Zinc Plated Steel, Stainless Steel
Ring Diameter
3 in.
Installation Method
Temporary
Shipping Weight
2.19 lb.
Item
Cross Arm Strap
Tensile Strength
5000 lb.
Length
4 ft.

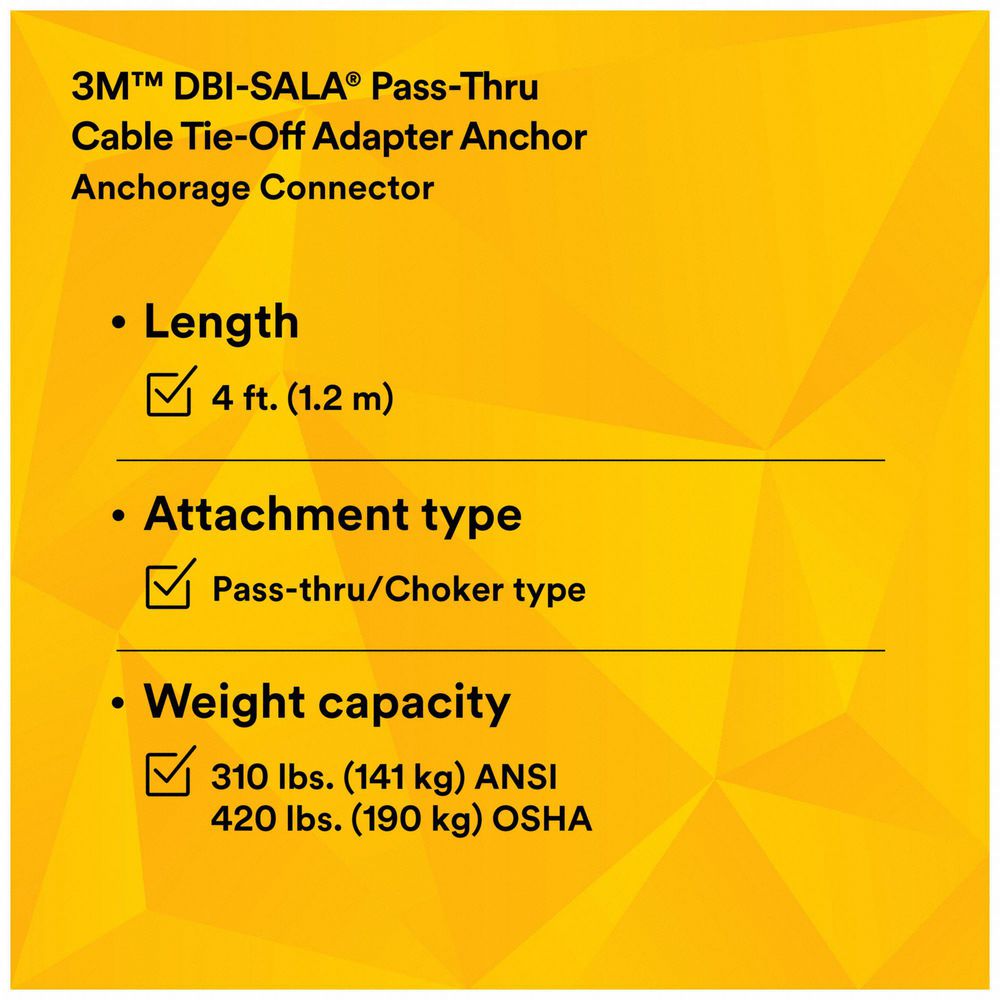

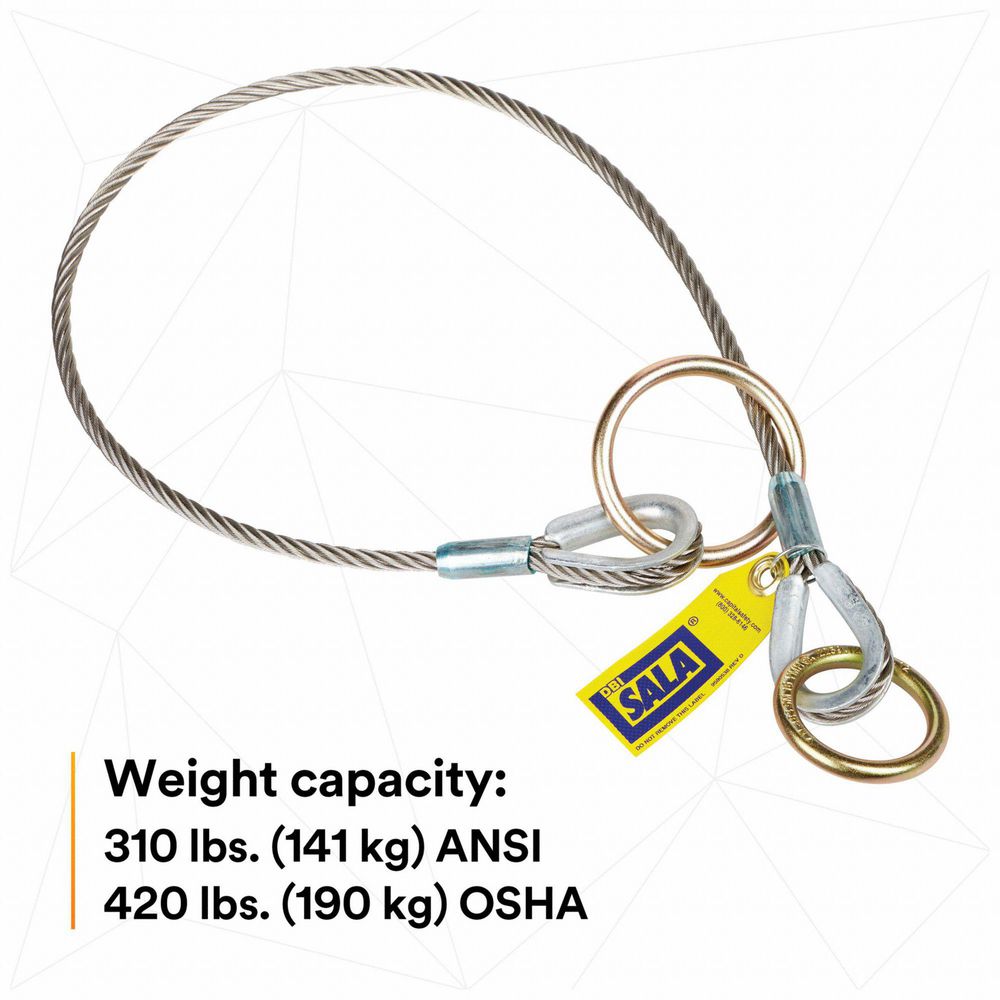

Weight Capacity
310 lb.

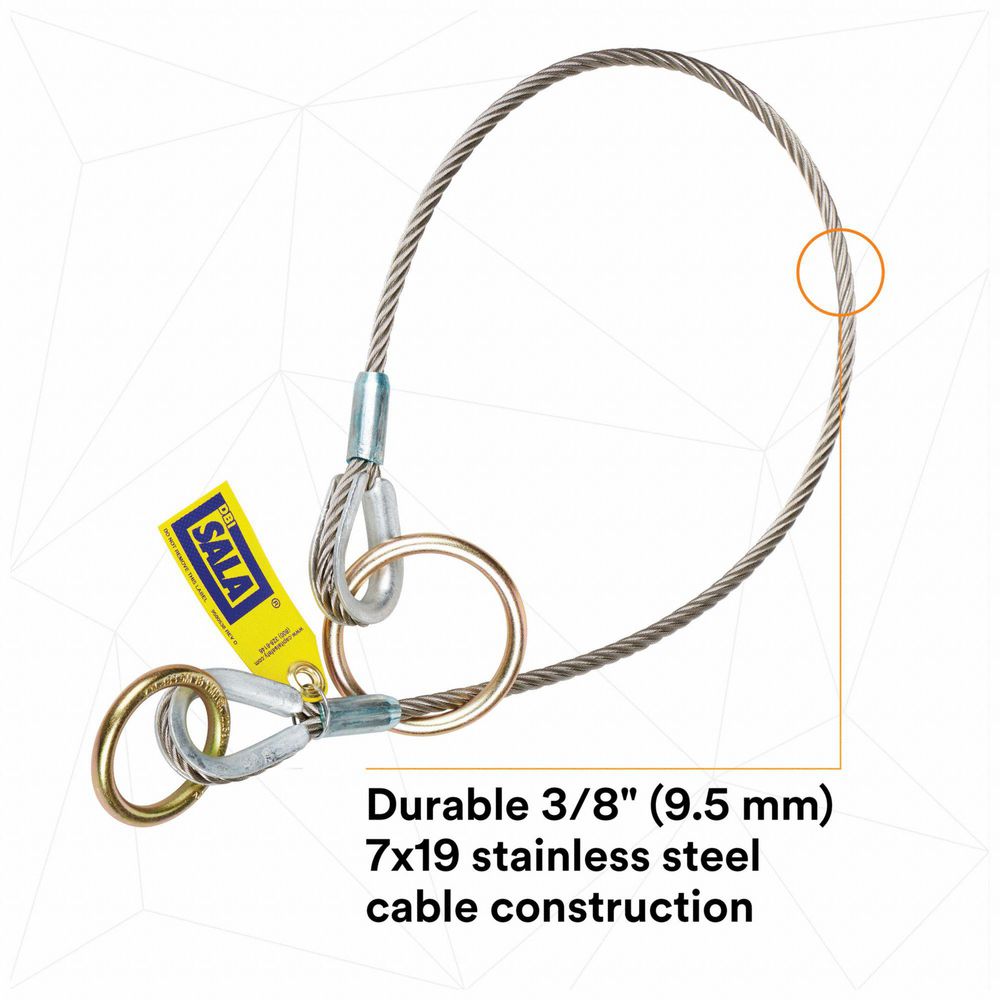

Material
Stainless Steel Wire Rope
Width
3/8 in.
General
Anchor Installation
Reusable
Pass-Through End

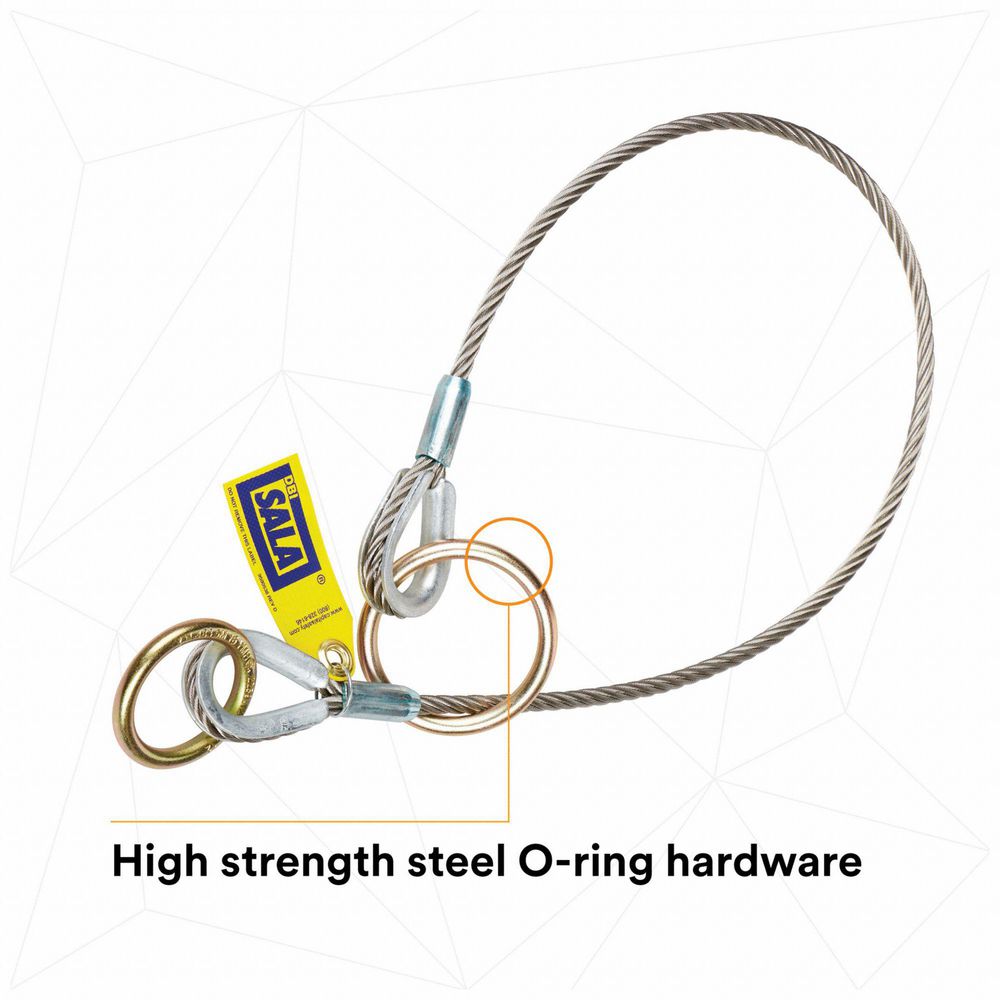

O-Ring

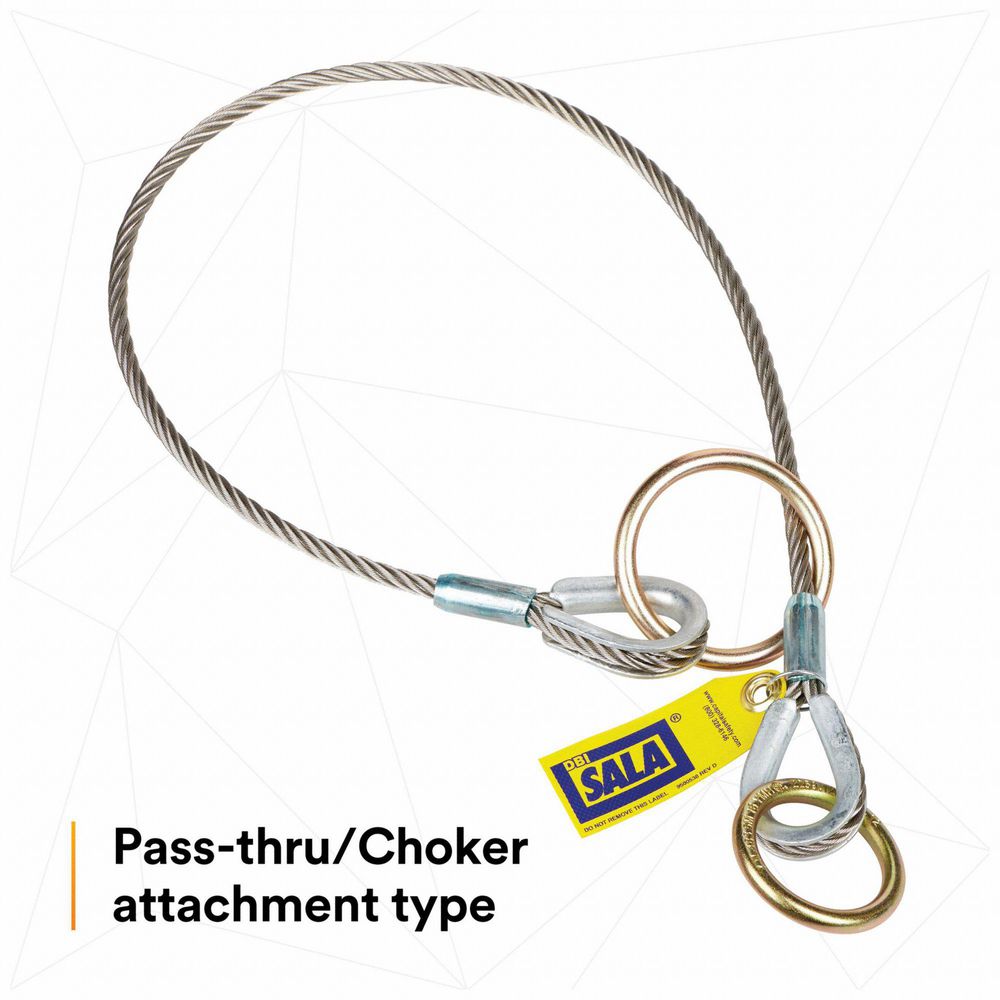

Anchor Style
Cable Pass-Through
Ring Dia.
3 in
Anchorage
2-1/4 lb.
Standards
OSHA, ANSI Z359
Attachment Point
Dual O-Ring

Product Description

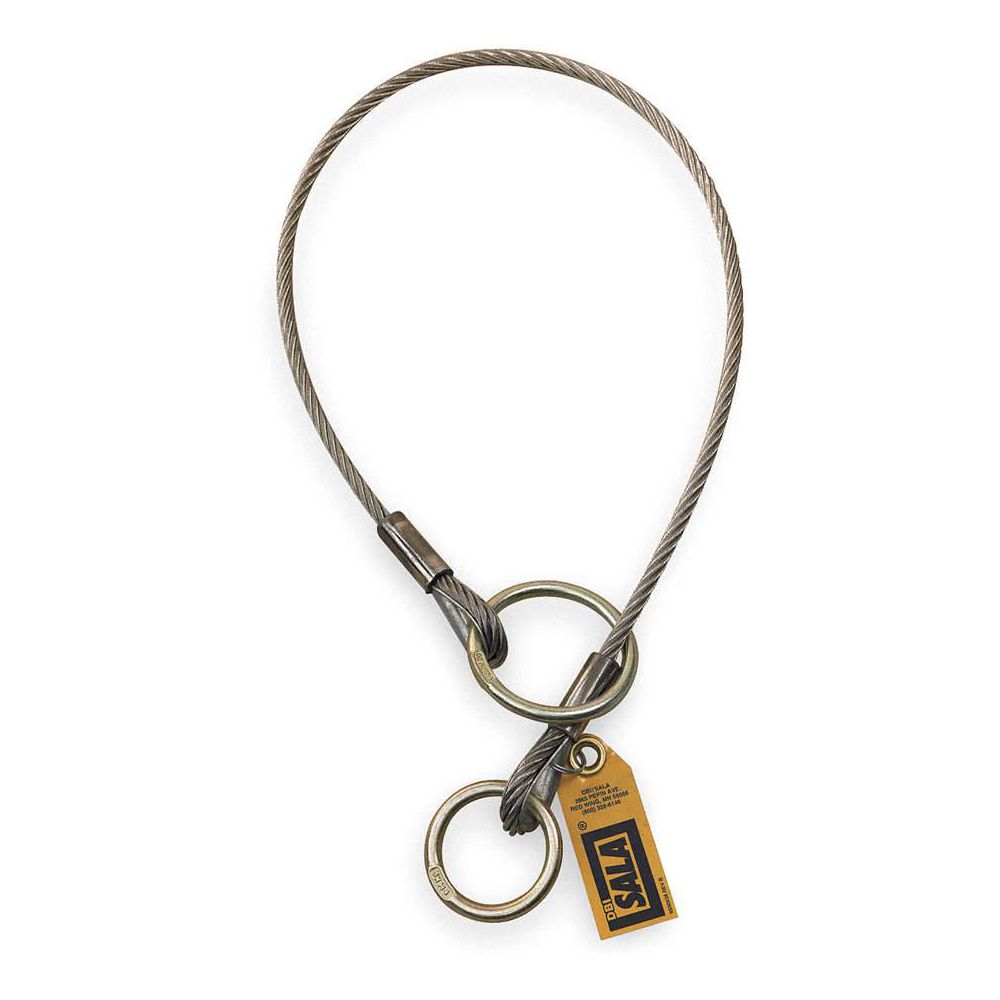

These cable pass-through anchors wrap around a beam, pipe, framing, or other structural component to provide a secure tie-off point for a lanyard or SRL as part of a personal fall protection system. Cable anchors are stronger and more durable than webbed-strap anchors and won't rip when exposed to sharp edges. The anchors have a large ring on one end that allows the D-ring to be passed through, the lanyard or SRL is then attached to the D-ring. These anchors can be removed and reused as needed. Anchors should always be inspected and replaced after being exposed to a fall.
